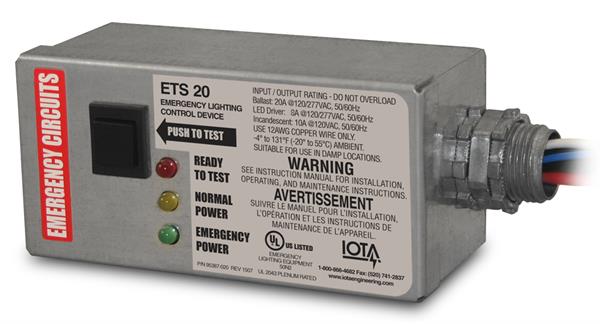

ETS20 Emergency Control Device
By IOTA
- Overview
- Specifications
Product Advantages
- Allows operation of switched or dimmed fixtures on an auxiliary generator or inverter supply
- Promotes energy savings by eliminating the need for multiple always-on fixtures
- Full Light Output
Features
- UL 924 Listed
- LED indicators for determining functional readiness and operation modes
- Galvanized steel housing
- Simplified junction box installation
- Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
- Unit temperature can withstand a condition range of -20°C to 55°C
- Suitable for use in plenum and damp location applications
- RoHS Compliant
- Optional jumper loop for connection to alarm, security panel, or other remote trigger device
- Dual-Zone dimmer bypass model also available
| Product Type | Emergency Control Device |
| Voltage Rating | 120/277 |
| Frequency | 50/60HZ |
| Max. Controlled Current | 10A, 20A, 8A |
| Max. Operating Temp. | 65 |
| Min. Operating Temp. | -20 |
| Life Safety Testing | Manual Testing |
| Regulatory Listing | C-UL-US, NFPA 101, UL |
| Compliance Listing | ROHS |
| Series | ETS20 |
-

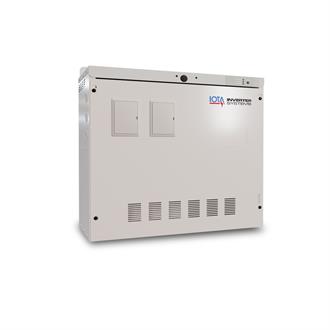

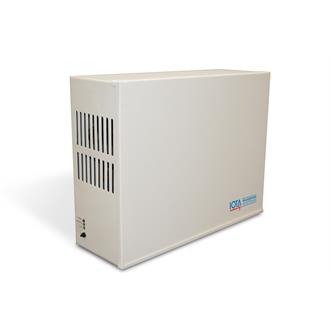

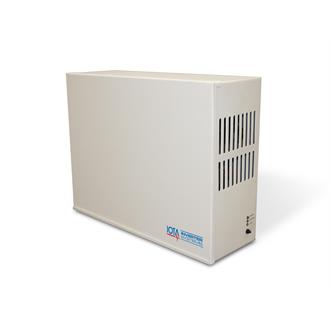

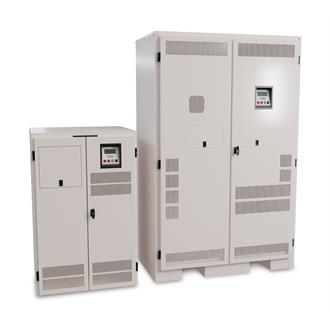

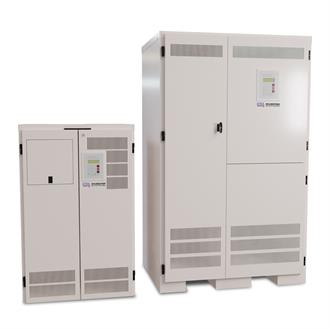

Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET ETS20 Specifications Specification Sheet for the IOTA ETS20 7/3/2023 View -
Photometry & Revit (BIM)
-
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View 3D Model ETS20 STEP File - 3D Model of ETS20 models 7/15/2020 View Installation Instructions ETS20 Manual Instruction Manual for the ETS20 1/19/2023 View Technical Bulletins ETS20 Reference Guide Technical Article on the Unique Features of the ETS20 and ETS20 DR 9/19/2019 View Wiring Diagram Emergency Dimming DWG File - Typical Application with Emergency Dimming Control 9/19/2019 View Wiring Diagram Emergency Dimming PDF File - Typical Application with Emergency Dimming Control 9/19/2019 View Wiring Diagram Emergency Inverter PDF File - Typical Application with Emergency Inverter 9/19/2019 View Wiring Diagram Emergency Inverter DWG File - Typical Application with Emergency Inverter 9/19/2019 View Wiring Diagram Typical Installation PDF File - Typical Application 9/19/2019 View Wiring Diagram Typical Installation DWG File - Typical Application 9/19/2019 View -
Utility Rebate Search
-
Replacement Parts
-
Confidential Documents
-
Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )
Document Type Document Title Description Updated View Application Guide Application: Activating an ETS20 from a Fire Panel Use a secondary trigger device such as a fire panel to tell the ETS20 to override lighting controls. 3/29/2023 View Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View -
