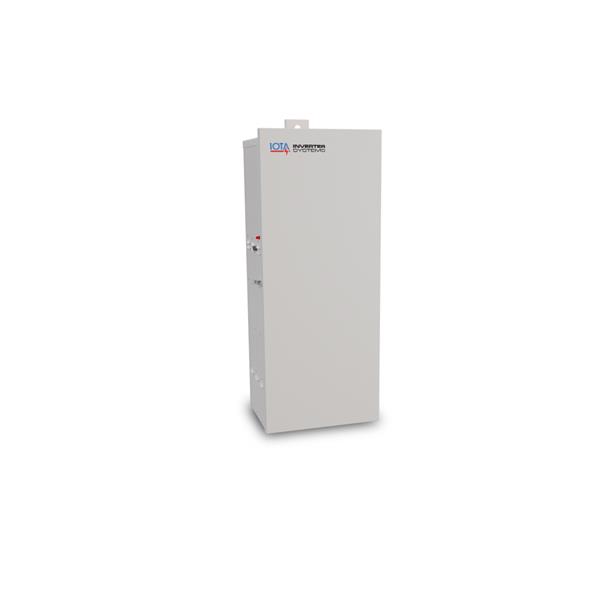

IIS EXT 1750 Emergency Inverter

1750W Single Phase Outdoor Inverter

By IOTA

  • Overview
  • Specifications
The IOTA IIS EXT 1750 is a UL Listed single-phase sine wave output inverter designed to supply 1750W of emergency power to the connected load. The IIS EXT 1750 will operate the emergency load at full brightness and features a NEMA 3R steel cabinet designed for outdoor installation.
Emergency Operation
  • 1750W
  • Operates LED, Fluorescent, Incandescent
  • 120VAC to 277VAC Input/Output Voltage options
Product Advantages
  • Single-phase emergency system with exceptional 98% power efficiency
  • NEMA 3R steel cabinet rated for outdoor installation applications
  • Fast Transfer (2 milliseconds) speed allows for uninterrupted operation of all lighting loads
  • Provides full light output in the emergency mode
  • Conducts required monthly and annual testing
Features
  • UL 924 Listed
  • PWM/MOSFET inverter design delivers high efficiency, low THD, and fast transfer speed
  • Micro-processor controlled, temperature-compensating charger
  • Sealed long-life maintenance-free VRLA batteries
  • Low Battery Voltage Disconnect protects the batteries against deep discharge
  • Includes Input and Battery Fuse Protection
  • Includes red illuminating system status indicator
  • Optional touchpad interface and VFD display screen
  • Includes RS232 Serial Communications port
  • Locking NEMA 3R steel cabinet design with white finish
  • Temperature-controlled forced air cooling with no filter requirement
  • Meets or exceeds all NEC and Life Safety Code Emergency Lighting requirements
  • Covered by IOTA's standard 1-year warranty
  • Factory Startup and Training available
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120, 208, 277
Frequency 60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 1750 VA
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing UL
Compliance Listing ROHS
Series IIS

Read More Read Less
