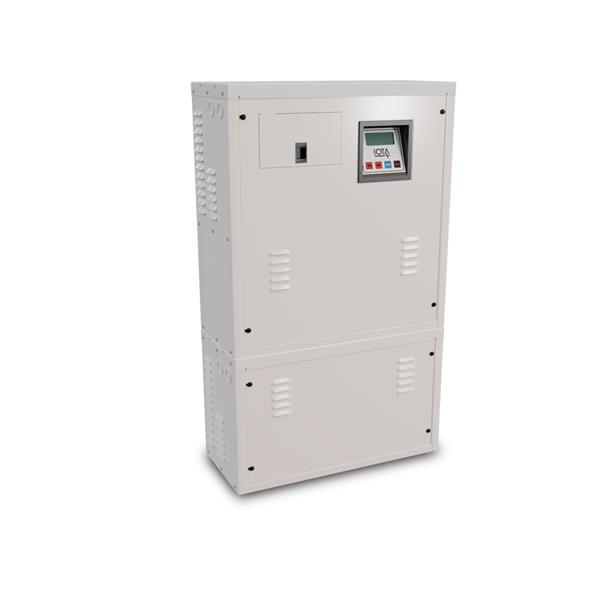

IISC Series Compact Inverter Systems

1000W to 2800W Inverters with Compact Cabinet

By IOTA

  • Overview
  • Specifications
The IOTA IISC Inverter Systems are UL Listed single-phase sine wave output inverters designed to supply 1.0kVA to 2.8kVA of emergency power to the connected load. IISC Inverters will operate the emergency load at full brightness with a transfer speed of 2 milliseconds and feature a compact cabinet design to accommodate installations with limited space.
Emergency Operation
  • 1.0kVA to 1.8kVA
  • Operates all lighting load types
  • 120VAC to 277AC Input/Output Voltage options
Product Advantages
  • Single-phase emergency system with exceptional 98% power efficiency
  • Compact cabinet design with minimal 10.5 x 24.25 inch footprint
  • Fast Transfer (2 milliseconds) speed allows for uninterrupted operation of all lighting loads
  • Provides full light output in the emergency mode
  • Conducts required monthly and annual testing
Features
  • UL 924 Listed
  • PWM/IGBT inverter design for optimal switching speed
  • Micro-processor controlled, temperature-compensating charger
  • Sealed long-life maintenance-free VRLA batteries
  • Low Battery Voltage Disconnect protects the batteries against deep discharge
  • Includes Input Circuit Breaker and Battery Protection
  • User Programmable / Password Protected Interface
  • High-contrast VFD display screen
  • Includes RS232 Serial Communications port
  • Durable steel cabinet design with white finish
  • Forced air cooling only while in the emergency mode with no filter requirement
  • Meets or exceeds all NEC and Life Safety Code Emergency Lighting requirements
  • Covered by IOTA's standard 1-year warranty
  • Factory Startup and Training available
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120, 208, 240, 277
Frequency 60HZ
Load Voltage Rating 120VAC, 208VAC, 240VAC, 277VAC
Output Power 1000 VA
Max. Operating Temp. 40
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing UL
Series IISC

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IISC Spec Sheet.pdf IOTA IISC Compact Inverter Specification Sheet 9/22/2022 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets IOTA IISC Compact Central Inverters -1-2.8K-AIA-lockin-spec-Rev-101322.doc Specification reference and guideline for IISC Inverters 10/26/2022
  • BIM Models (Revit)

    Document Type Document Title Description Updated View
    BIM Models IISC.zip IISC Models 12/16/2021
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IOTA IISC Series Inverter_Instruction-Manual.pdf Installation and Instructions for IOTA IISC Central Inverter System 12/28/2021 View
    Material Safety Data Sheet MSDS - VRLA Batteries Material Safety Data Sheet for the VRLA Batteries 5/13/2021 View
    Technical Bulletins BTU Loss BTU Loss for IOTA Central Inverter Systems 6/2/2021 View
    Technical Bulletins System Electrolyte & kWh Levels Electrolyte & kWh levels for IOTA Central Inverters 6/2/2021 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide IIS-Central-Inverter-Quotation-Request-Checklist.pdf Easy Reference Checklist for submitting an IIS Central Inverter quotation request. 11/22/2022 View
    Brochures Factory Startup, Training, and Maintenance Plans Expert Installation, On Site Training, and Preventative Maintenance Plans for IIS Central Inverters 5/5/2022 View
    Brochures IIS Inverter Control Panel Overview Overview of the operational functions and data access of the IIS Central Inverter control panel. 11/4/2021 View
    Brochures IOTA IIS Central Inverter Product Brochure A quick-reference resource for IOTA's IIS Central Inverter products. 5/2/2022 View
    Catalogs IIS Central Inverter Options Reference Guide Explore the available options for IIS Central Inverters to fit your emergency egress application 7/15/2022 View
  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    The IOTA products are primarily sold through a network of agents and distributors across North America.

    •  Find an Agent or Distributor

    •  Request a Call


    Technical Support

    The IOTA technical team is dedicated to providing outstanding product support. Please click on the appropriate link below,
    or feel free to call us at 855.363.9527.

    •  FAQs

    •  Technical Library

    •  Email Us


    Warranty

    Please click on the appropriate link below to learn more about IOTA terms & conditions and product warranty options.

    •  IOTA Emergency Products with Batteries

    •  IOTA Emergency Control (ALCR) Devices

    •  IOTA DLS Battery Chargers and Power Converters

    •  IOTA Warranty Replacements & Stock Returns
