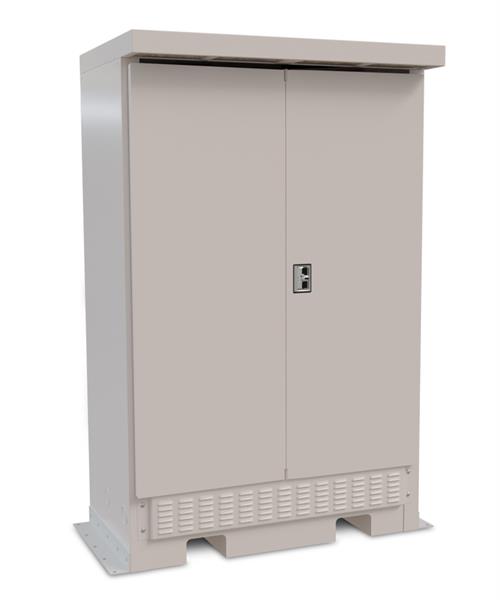

IIS EXT Single-Phase Outdoor Inverters (3.0kVA to 8.0kVA)

Outdoor-Rated Single-Phase Emergency Inverters

By IOTA

  • Overview
  • Specifications
The IOTA IIS EXT Central Inverters are UL Listed single-phase sine wave output inverters designed to supply emergency power to the connected load at a transfer speed of 2 milliseconds. IIS EXT Inverters will operate the emergency load at full brightness and feature a locking NEMA 3R steel cabinet enclosure for protection against moisture and debris.
Emergency Operation
  • 3.0kVA (3000W) to 8.0kVA (8000W)
  • Operates LED, Fluorescent, Incandescent, and HID fixtures
  • 120VAC to 277VAC Input/Output Voltage options
Product Advantages
  • Single-phase emergency system with exceptional 97% power efficiency
  • NEMA 3R steel cabinet rated for outdoor installation applications
  • Fast 2 millisecond transfer speed allows uninterrupted operation to the lighting load
  • Provides full light output in the emergency mode
  • Conducts required monthly and annual testing
Features
  • UL 924 Listed
  • PWM/IGBT inverter design for optimal switching speed
  • Micro-processor controlled, temperature-compensating charger
  • Sealed long-life maintenance-free VRLA batteries
  • Low Battery Voltage Disconnect protects the batteries against deep discharge
  • Includes Input Circuit Breaker and Battery Fuse Protection
  • Output Circuit Breaker options available
  • User Programmable / Password Protected Interface
  • Touchpad interface and LCD display screen
  • Includes RS232 Serial Communications port
  • Locking NEMA 3R steel cabinet design with white finish
  • Temperature-controlled forced air cooling with no filter requirement
  • Meets or exceeds all NEC and Life Safety Code Emergency Lighting requirements
  • Covered by IOTA's standard 1-year warranty
  • Factory Startup and Training available
Read More
Read Less
Product Type Emergency Inverter
Voltage Rating 120, 208, 240, 277
Frequency 60HZ
Load Voltage Rating 120VAC, 277VAC
Output Power 3000 VA, 4000 VA, 5000 VA, 6500 VA, 8000 VA
Max. Operating Temp. 30
Min. Operating Temp. 20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing UL, UL924
Compliance Listing ROHS
Series IIS
