RSX Family

The Highly Configurable Outdoor Solution

The RSX family of LED area and floodlight luminaires is specifically designed to provide one-for-one solutions for replacing HID lighting. RSX delivers superior illumination, energy savings, quick delivery and easy installation all with the reliability you expect from Lithonia Lighting^®.

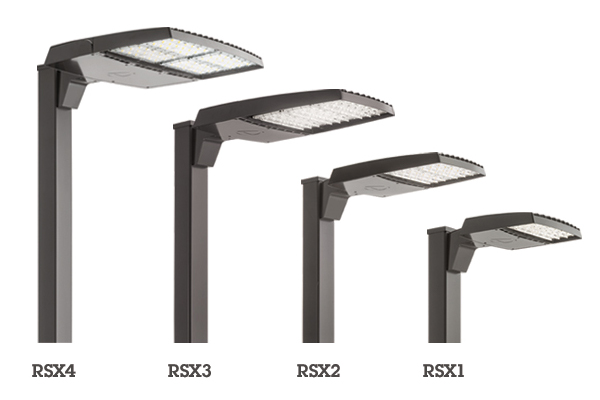

RSX LED Area Luminaires

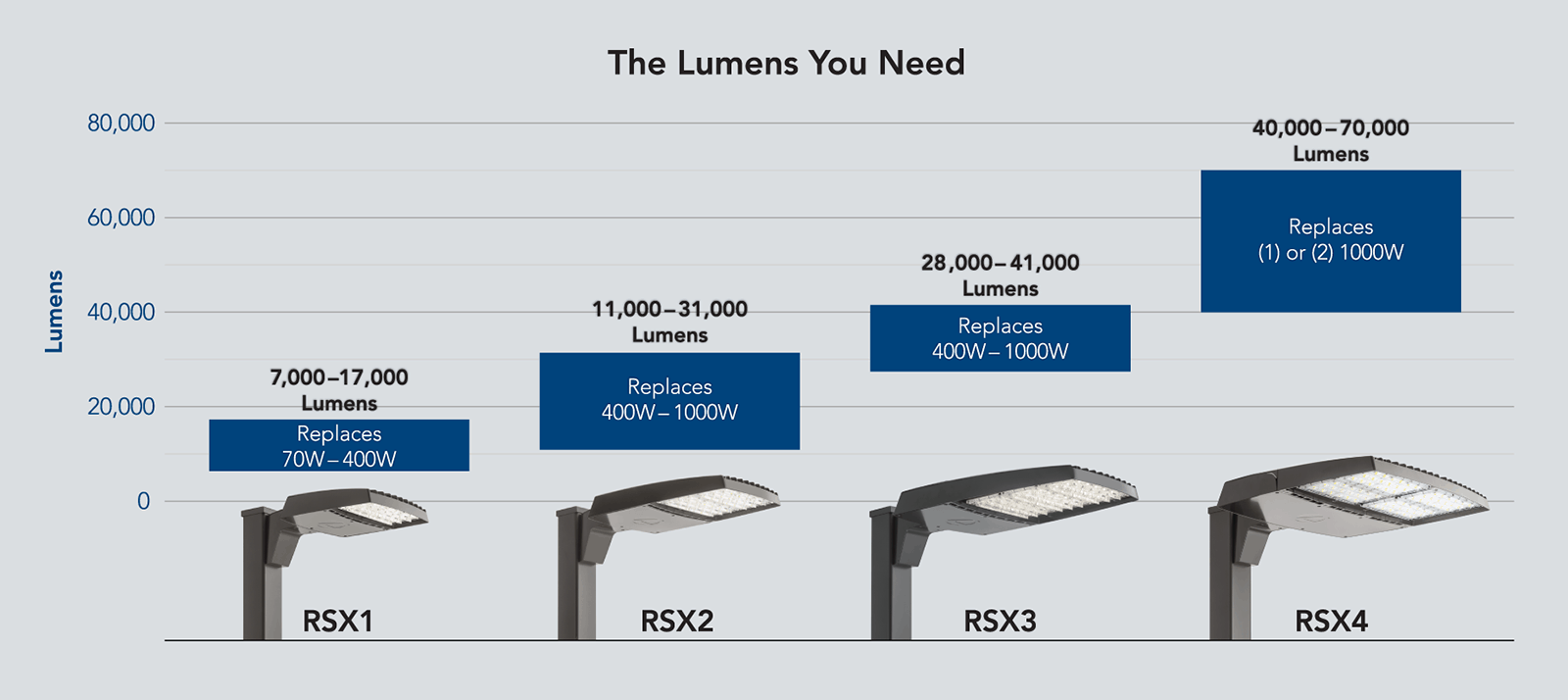

Four sizes replace 70W – 1000W HID luminaires
7,000 to 70,000 lumens
Super-efficient – up to 155 LPW
Save up to 75% in installation labor with the “no drill” solution
Made in North America

Lithonia-RSX-card-modal-rsxf-floodlights1a

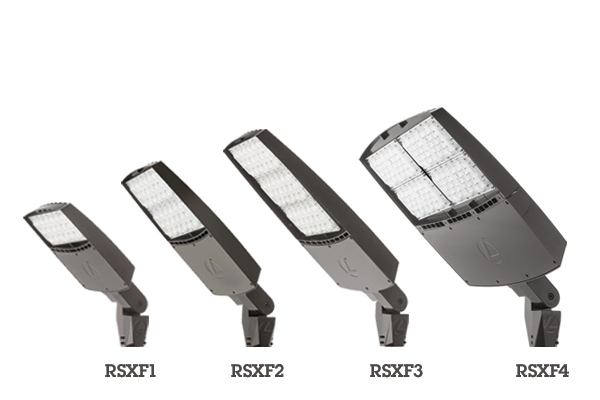

RSXF LED Floodlights

Four sizes replace 70W – 1500W HID luminaires
7,000 to 85,000 lumens
Integral slipfitter with 5-degree precision aiming
Area wide forward optic (AWFD) for superior perimeter lighting
Made in North America

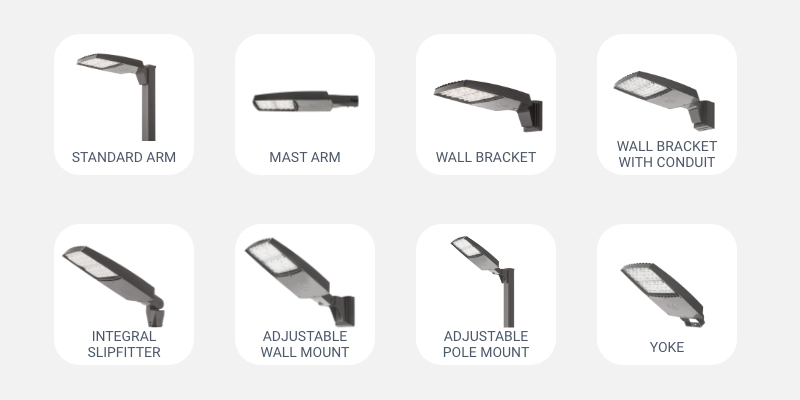

Mounting Configurations

The RSX family offers ten mounting options, including adjustable mounts, allowing the RSX and RSXF to be highly adaptable to existing infrastructure for trouble-free installations. With its universal mounting mechanism, this labor-saving feature can reduce installation time by up to 70%.

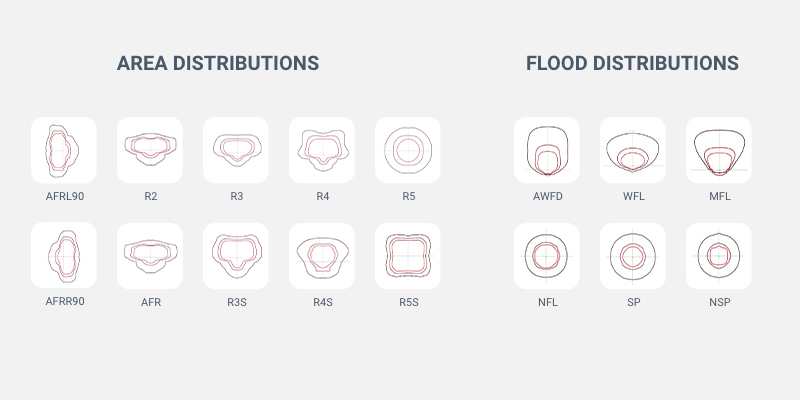

Photometric Distributions

The RSX family has a wide offering of both area and flood photometric distributions including a specialized automotive front row distribution and unique area-wide-forward distribution for perimeter floodlighting applications.

Lithonia-RSX-left-right-distribution-comparisons2

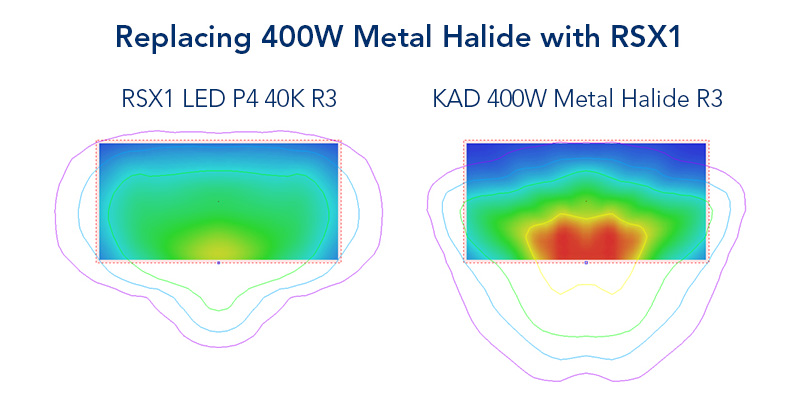

RSX R3 Area Lighting Distribution

Greater coverage
No wasteful hot spot
Better back-light control
70% energy savings

Area Wide Forward Optics (AWFD)

The area wide flood optic (AWFD) in the RSXF4 is a best-in-class solution that can be used for lighting truck yards or other applications when lighting from the perimeter, pushing the light forward rather than in an equal distribution around the luminaire.

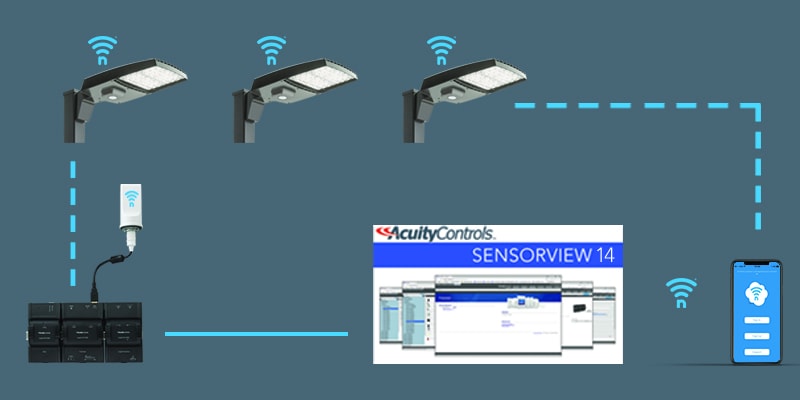

nLight^® AIR Enabled Outdoor Luminaires

When paired with embedded nLight AIR wireless controls, energy savings can be increased by over 50% by simply dimming the luminaires during periods of non-occupancy. Luminaires can be wirelessly “grouped”, such that all the luminaires in a group respond to a single motion sensor detection event, providing a superior end-user experience to that of stand-alone sensors. RSX LED luminaires with embedded nLight AIR controls is the most cost-effective way to meet energy codes such as IECC 2018.
