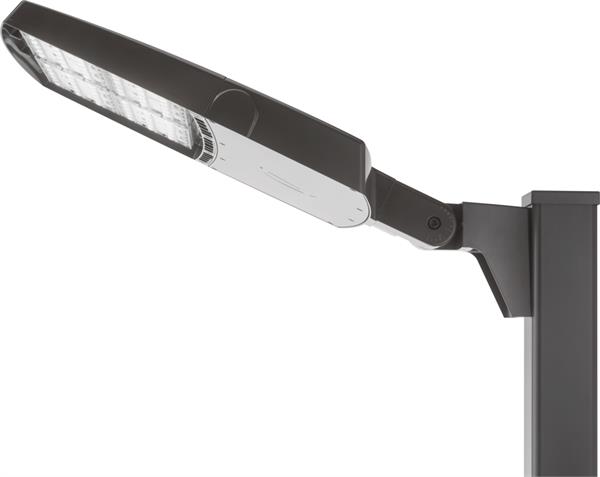

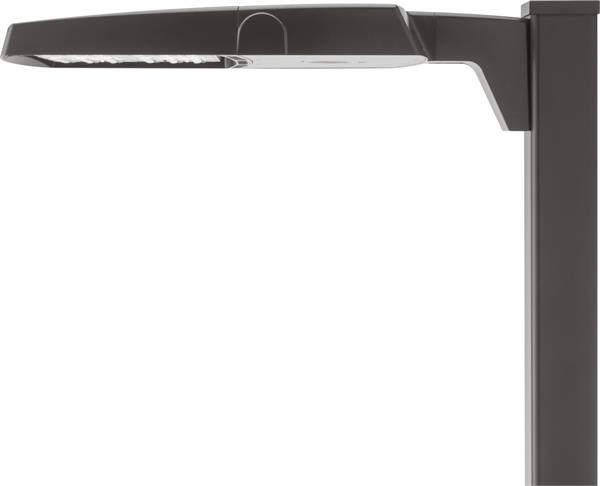

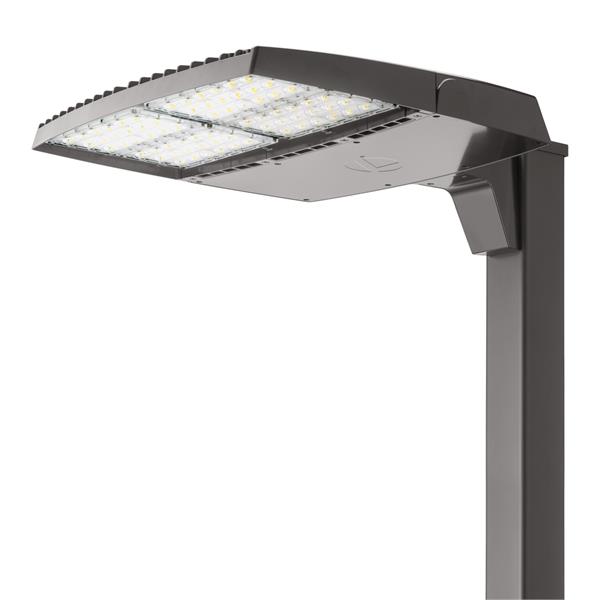

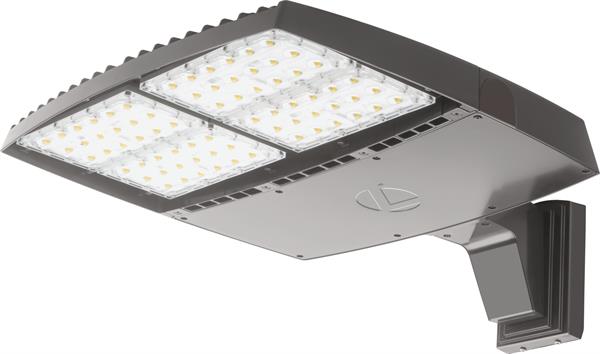

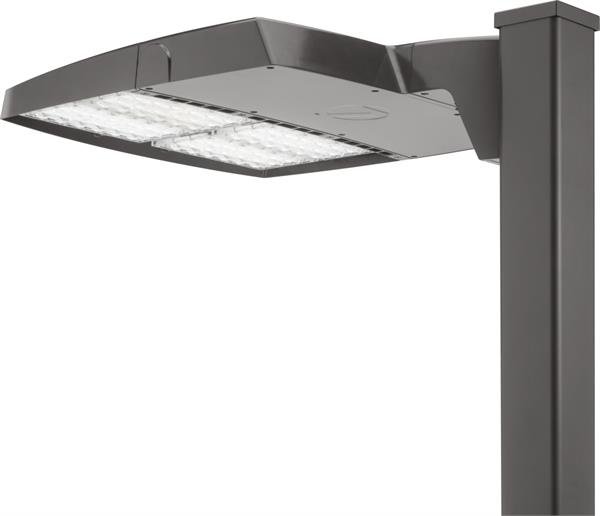

RSX4 LED Area Luminaire

Up to 70,000 lumens

By Lithonia Lighting

    Buy America(n)
  • Overview
  • Specifications
With up to 70,000 lumens, the RSX4 can replace up to two 1000W metal halide luminaires, save up to 75% on energy costs and avoid up to eight expensive lamp changes. Coupled with nLight® AIR wireless controls, the RSX family provides enhanced end-user experiences and unmatched energy savings.

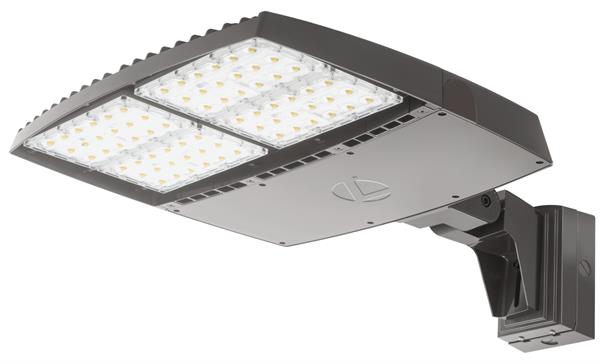

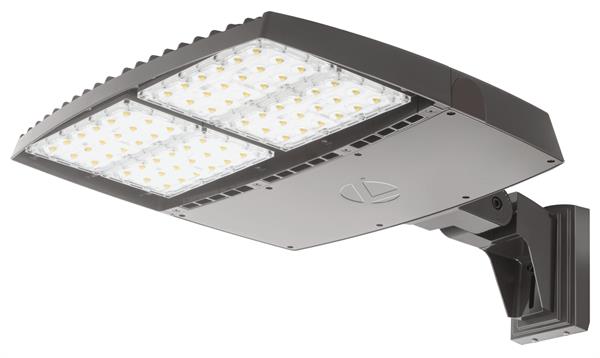

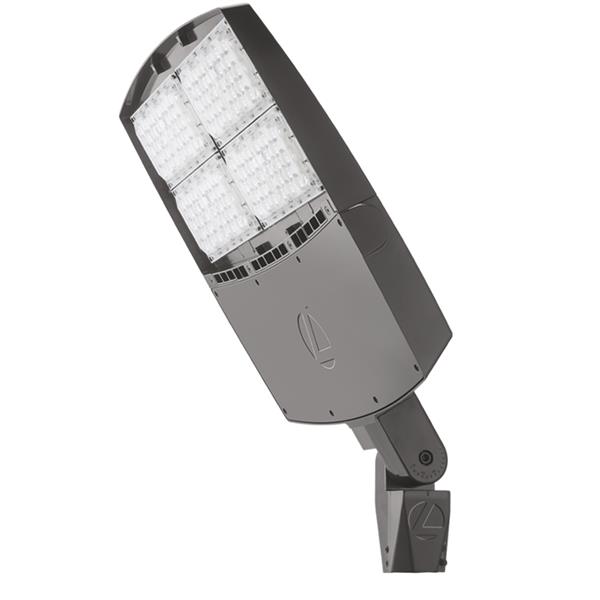

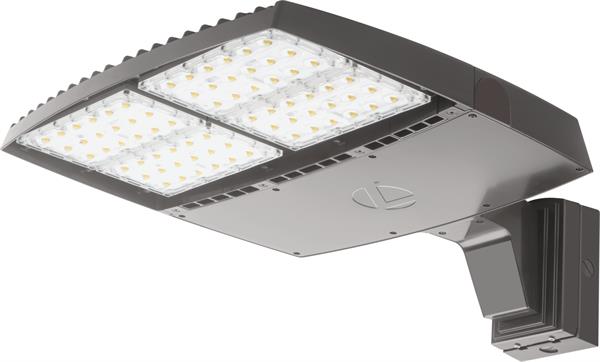

Available with eight unique mountings, the RSX4 is specifically designed to provide one-for-one, and in some cases two-for-one, solutions for replacing existing metal halide or high pressure sodium lighting. RSX4 luminaires provide superior illumination at prices that will allow customers to meet their financial payback thresholds.
Read More
Read Less
Light Source LED - Static
Lumens 40,000 LM, 41,000 LM, 42,000 LM, 43,000 LM, 44,000 LM, 45,000 LM, 46,000 LM, 47,000 LM, 48,000 LM, 49,000 LM, 50,000 LM, 52,000 LM, 54,000 LM, 56,000 LM, 57,000 LM, 58,000 LM, 59,000 LM, 60,000 LM, 61,000 LM, 62,000 LM, 63,000 LM, 64,000 LM, 65,000 LM, 66,000 LM, 67,000 LM, 68,000 LM, 69,000 LM, 70,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing BAA
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 275, 277, 279, 282, 320, 321, 322, 324, 331, 364, 365, 367, 369, 373, 412, 414, 421, 425, 427, 428, 431, 460, 463, 470, 471, 479, 483, 523, 524, 525, 529, 535, 546
Voltage Rating 120, 120-277, 208, 240, 277, 277-480, 347, 347-480, 347/480, 480
Color Black, Bronze, Silver, White
Mounting Type Pole Mount, Surface, Tenon Slipfitter
Series RSX4

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Lithonia RSX4 Area LED.pdf RSX4 Area LED Luminaire 6/16/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions INST SHT Accessories RSX IN-381 REV C 8 30 18.pdf Installation instruction accessories for RSX. 3/9/2022 View
    Installation Instructions INST SHT RSX LED IM-459 REV A.pdf Installation Instructions for RSX 9/11/2019 View
    Installation Instructions Repair Kits Instruction Sheet Rev. B PSL11 12 5 19.pdf Repair Kits Instruction Sheet 12/18/2019 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Comm Outdoor Lighting Portfolio Quick Reference Guide.pdf Outdoor Lighting Portfolio - Quick Reference Guide.pdf 4/15/2021 View
    Brochures nLightAIR-Outdoor-brochure-0219.pdf Wireless controls guide for outdoor luminaires 5/16/2019 View
    Brochures Outdoor Buy American Brochure Buy American Outdoor Portfolio 2/7/2022 View
    Brochures Outdoor Discretionary Stock Solutions Brochure.pdf LL Outdoor Stock Solutions Guide 9/20/2021 View
    Brochures Outdoor HID Crossover Guide LL Outdoor HID Crossover Guide 5/10/2021 View
    Brochures Outdoor Spec Product Portfolio Brochure_0221.pdf LL Outdoor Specification Solutions Guide 5/27/2021 View
    Product Presentation RSX_LED_Area_Flood_Presentation_Customer_June2022.pdf RSX LED Area Flood Presentation - Customer 6/17/2022 View
    Sell Sheet RSX Contractor Sell Sheet RSX Contractor Select Sell Sheet 4/12/2021 View
    Sell Sheet RSX LED Sell Sheet_0719 RSX1/2/3/4 LED Area Luminaire Sell Sheet 9/10/2019 View
