OSC2 Modular Wiring
By Reloc
- Overview
- Specifications

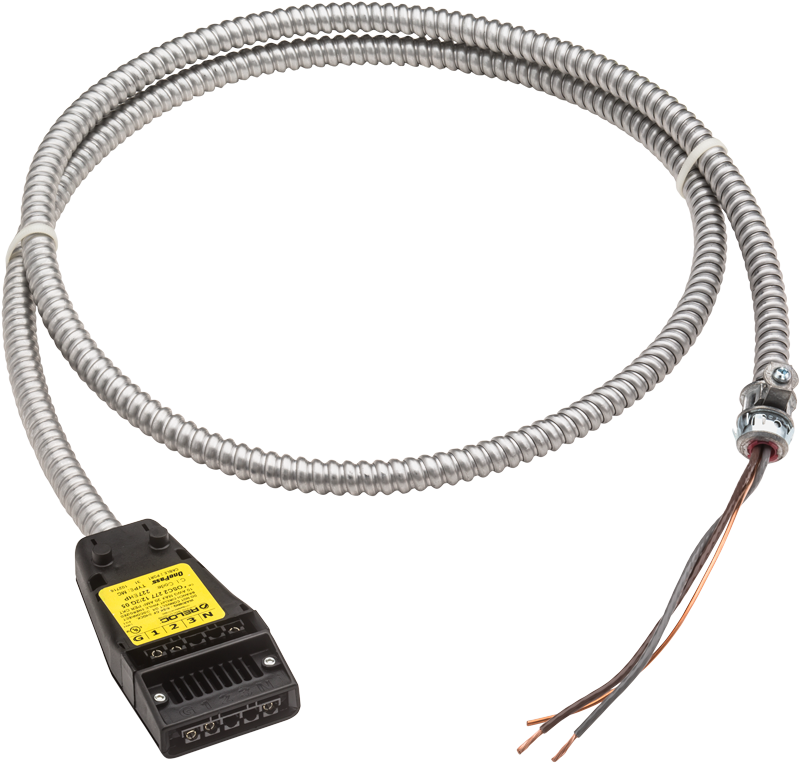

The OSC2 provides the interface between hardwiring and the OnePass® system. It is a converter and extender in one component. The OSC2 is wired into the homerun junction box and brings power to the OCS, OC2, OCU or OD.
Starter Cable, 2 port, Plenum rated, 20 AMP, Safety-keying, Pin and Socket contacts.
| Product Type | Modular Wiring |
| Application Type | Government, Healthcare, Manufacturing, Offices & Banks, Retail, Warehouses |
| Voltage Rating | 120, 208, 240, 277, 347, 480, Not Applicable |
| Mounting Location | Not Applicable |
| Mounting Type | Semi-recessed |
| Compliance Listing | BAA |
| Environmental Listing | Dry Location |
| Environment | Indoor |
| Dimming Protocol | 0-10V, DALI |
| Regulatory Listing | C-UL-US, UL |
| Series | OSC2 |
| Brand | Reloc |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET OC_OSFC_OSC2.pdf OnePass® Converter/Starter Cables 11/18/2022 View
Create Submittal Spec Sheet
-
Photometry & Revit (BIM)
-
Spectral Data Sheets
-
Guideline Specifications
-
BIM Models (Revit)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View CAD OSC2_D-E-F-2N-9,15_DWG 2D DWG OSC2 OnePass® Starter Cable 2 Port 11/12/2012 View CAD OSC2_D-E-F-2N-9,15_DXF 2D DXF OSC2 OnePass® Starter Cable 2 Port 11/12/2012 View CAD OSC2_D-E-F-2N-9,15_JPG 2D JPG OSC2 OnePass® Starter Cable 2 Port 11/12/2012 View CAD Systemview-OSC2 SystemView 2D PDF OSC2 OnePass® Starter Cable 2 Port 11/12/2012 View CAD SystemView-OSC2 SystemView 2D DWG OSC2 OnePass® Starter Cable 2 Port 11/12/2012 View Installation Instructions XKD0000006_Rev E One Pass instruction sheet (OC2, OCS, OCU, OD, OC, OSC2, OSS) Rev E (11.9.17) 4/10/2018 View -
