PROTEON™ SL Linear LED High Bay

By Lithonia Lighting

  • Overview
  • Specifications
The PROTEON™ SL LED luminaire offers commercial building owners, retailers and institutions an innovative, continuous-row solution that better utilizes light to emphasize areas of focus while reducing energy. Using custom optics, the luminaire can provide unparalled uniformity and achieve a horizontal-to-vertical light ratio not attainable through previous technologies. Occupancy and photocell sensing, along with an emergency back-up accessory, are seamlessly integrated using engineered modules to provide maximum controls flexibility in a non-obtrusive form factor.

Construction

Extruded housing and heat sink made from 6063-T5 aluminum allows for superior thermal management to reduce both LED and driver temperatures. Clear anodized finish is standard to resist scratching, corrosion and provide refined appearance. The joiners and modules are made from die-cast, zinc alloy which reduces electro-magnetic interference (EMI) and offers improved thermals over alternative materials. Joiners and modules are painted with baked enamel; five-stage iron phosphate pre-treatment ensures superior adhesion.

Optics

Proprietary lensing engineered using precision-molded acrylic. The lenses work together with die-formed reflectors utilizing highly reflective WhiteOptics™ coating to improve light on task. Optical patterns range from aisle-specific to open area distributions. Pixelation is eliminated through the use of lenticular ribs on each lens in combination with semi-diffuse overlay inside the optical chamber.

Electrical

Thermally protected, high-efficiency driver(s) standard with 0-10V dimming down to 10%. Each 4’ or 8’ rail contains one driver. LED light engine features OSRAM Duris E5. 25W LEDs which are connected using mating connectors to eliminate wiring inside optical chamber.

Other

WARRANTY

Five-year limited warranty. Full warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

Actual performance may differ as a result of end-user environment and application.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 3500 LM, 7300 LM
CCT / LED Color 3500 K, 4100 K, 5000 K
CRI 80
Product Type Linear
Environmental Listing Damp Location
Regulatory Listing CSA
Fixture Wattage 40, 81
Voltage Rating 120, 120-277, 208, 240, 277
Color Gray, Silver, White
Mounting Type Suspended
Series PTNSL4, PTNSL8

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PROTEON™ Linear LED PROTEON™ Linear LED 5/24/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information View
    Installation Instructions INSTRUCTION SHEET FOR PTNSL MICRO SENSOR.pdf INSTRUCTION SHEET FOR PTNSL MICRO SENSOR 10/8/2020 View
    Installation Instructions PROTEON LINEAR LED LUMINAIRE EMERGENCY PACK.pdf PTNSL LED Luminaire with Emergency Installation Instructions View
    Installation Instructions ptnsl baffle assembly PTNSL Baffle Assembly Drawing View
    Installation Instructions PTNSL installation instructions PTNSL LED Installation Instructions View
    Installation Instructions PTNSLBRG installation instructions.pdf PTNSLBRG installation instructions View
    Installation Instructions TGclip installation instructions PTNSL TGRID Installation Instructions View
    Installation Instructions U02530.pdf OSR2 driver installation instructions View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet ptnsl-repair-kits-01042022.pdf Replacement Boards, Drivers, Lenses, ETC. 1/4/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures PROTEON Brochure PROTEON Brochure View
    FAQ PROTEON SL FAQs PROTEON SL FAQs View

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent

    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Contact Us (Lighting Fixtures)

    •  Contact Us (Controls Services & Support)

    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


View Stocked Products

  • Stock-Sku-FeedbackIs the new stocked product detail helpful? Please tell us what you think, CLICK HERE.

    SKU data not available, please contact your local agent.

    Clear Filters

    {{getMinimumDisplayedIndex()}} - {{getMaximumDisplayedIndex()}} of {{filteredStockedProducts.length}} results

    {{icon.AltText}}
    Close Details View
    Product Details
    By Lithonia Lighting
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Catalog #
    {{popupSku.details.SHORT_DESCRIPTION ? popupSku.details.SHORT_DESCRIPTION : 'N/A'}}
    Description
    {{popupSku.details.LONG_DESCRIPTION ? popupSku.details.LONG_DESCRIPTION : 'N/A'}}
    CI Code
    {{popupSku.details.CICODE ? popupSku.details.CICODE : 'N/A'}}
    Pallet Qty
    {{popupSku.details.PALLET_QUANTITY ? popupSku.details.PALLET_QUANTITY : 'N/A'}}
    Weight
    {{popupSku.details.WEIGHT ? popupSku.details.WEIGHT + ' (lbs)' : 'N/A'}}
    UPC
    {{popupSku.details.UPC ? popupSku.details.UPC : 'N/A'}}
    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    Agent Price Levels
    Name
    Price
    Commision
    {{priceResult.LABEL}} {{priceResult.NO_PRICE_MESSAGE}} ${{priceResult.UNIT_PRICE | number : 2}} {{priceResult.COMM_PCT}} %
    Distr. Price
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Price ${{popupSku.Price | number : 2}}
    {{popupSku.noQuotesMessage}}
    Read More
    Read Less
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Read More
    Read Less
    Available Inventory (Stocked)
    Qty.
    Est. Ship Date
    Location
    Qty. In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}} {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Production Lead-Time
    Production lead-time is not available at this time.
    Mfg. Time
    Total Time
    Est. Ship Date
    Location
    {{loc.MfgLeadTime}} {{loc.TotalLeadTime}} {{loc.EstShipDate}} {{loc.Location}}
    (No Products Found)
    {{icon.AltText}}
    {{result.Title}}
    {{result.Title}}
    {{result.Description}}
    Quantity
    {{(result.Quantity > 0) ? result.Quantity : 0}} in {{result.Location.substring(result.Location.indexOf("(")+1, result.Location.indexOf(")"))}}
    Total at all DCs: {{result.EnterpriseAvailability}}
    Distr. Price
    ${{result.Price | number : 2}}
    Distr. Price
    Contact Acuity
    Distr. Price
    Contact Rep
    Distr. Price
    GET PRICE
    Distr. Price
    No pricing established

    No Locations Could Be Found.


    This catalog # is not available at any location at this time. Inventory is replenished daily, please check back or contact your local sales representative or agency further details.

    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Important Notice Orders entered before noon will ship same day, and orders entered after noon will ship next day within your given timezone.
    Available Est. Ship Date Location In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}}     {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Available
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}}
    Est. Ship Date
    {{loc.ESTIMATED_SHIP_DATE}}
    Location
    {{loc.LOCATION}}
    In Transit
    {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}
    {{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}

Compatible Products

  • Controls
Close Quick View Modal
sr

View Product Availability

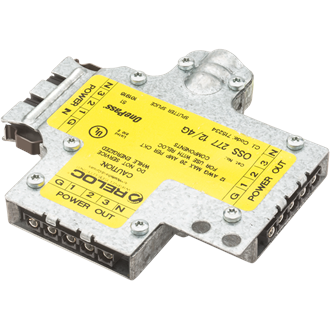

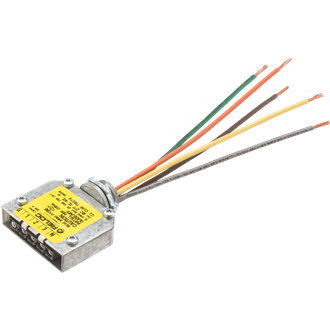

OCS Modular Wiring

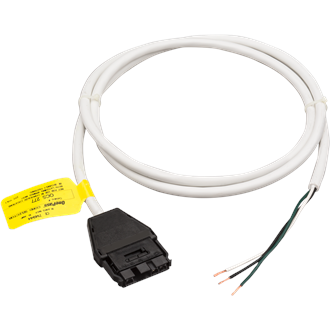

OnePass® Circuit Selector Modular Wiring
