FGB
- Overview
- Specifications
Ideal for use in retail, industrial, commercial, gymnasium and warehouse environments where 400W-1000W fixtures would be considered. Provides a wide variety of photometric distributions and lamp combinations, each designed specifically for applications ranging from large open areas to very tall and narrow spaces. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.
Construction
Channel, ends and socket brackets are manufactured from 22-gauge cold-rolled steel. Riveted and screwed assembly. Tool-less ballast and wiring access. Optional heavy-gauge steel or all aluminum construction also are available.
Lamp shielding options are provided with a 22-gauge premium polyester powder coat finish door frame with two painted hinges and two painted opposing rotary cam latches. Lenses are held in place with lens clips.
Standard high-gloss white baked enamel, pre-treated with a 5-stage iron phosphate system. Optional premium polyester powder coat finish, utilizing a 7-stage pretreatment process of iron phosphate, a non-chromium sealer and a de-ionized water rinse to provide superior adhesion and corrosion resistance.
Optics
Reflectors are precision-formed, high performance, 95% total reflectance, segmented optics utilizing premium specular aluminum warranted for 25 years.
Electrical
Ballasts are electronic, energy-saving, thermally protected, Class P, HPF, non-PCB, Sound Rating A, UL/CSA Certified where applicable and comply with Federal Ballast Law (Public Law 100-357, 1988). UL Listed wire, rated for required temperatures, used throughout.
Lamps are secured with rotary locking lampholders for ease of re-lamping and to minimize disconnection due to vibration or incidental contact. Factory-installed lamps are available in various CRI ratings, temperature colors and rated life.
Installation
May be suspended with aircraft cable or chain hangers.
Size | 4FT |
Shape | Rectangular |
Light Source | Fluorescent, Not Applicable |
Lumens | Not Applicable |
CCT / LED Color | 3000 K, 3500 K, 4100 K, 5000 K |
CRI | 80, 85 |
Product Type | High Bay |
Environmental Listing | Damp Location |
Regulatory Listing | CSA, UL |
Fixture Wattage | 28, 32, 54 |
Voltage Rating | 120-277, 347-480 |
Color | Clear, White |
Mounting Type | Not Applicable, Pendant, Suspended |
Series | FGB28, FGB324, HBBS, FGB24, FGB18, FGB14, FGB164, FGB168, FGB24 |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET FGB-T5HO SPEC-BEAM fluorescent high bay; 2-6 lamps, 54W T5HO 5/2/2019 View SPEC SHEET FGB-T8 SPEC-BEAM fluorescent high bay; 2-6 lamps, 32W T8 7/19/2019 View SPEC SHEET High-lumen fluorescent high bay, 8-12 lamps, 32W T8 High-lumen fluorescent high bay, 8-12 lamps, 32W T8 5/2/2019 View SPEC SHEET High-lumen fluorescent high bay, 8-12 lamps, 54W T5HO High-lumen fluorescent high bay, 8-12 lamps, 54W T5HO 10/23/2014 View SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material 7/26/2011 View -
Photometry & Revit (BIM)
-
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information 9/24/2018 View Installation Instructions FGB INSTRUCTION SHEET 3 5 10 FGB SPEC-BEAM™ Full-sided Fluorescent High Bay – Installation Instructions 11/7/2012 View -
Utility Rebate Search
-
Replacement Parts
-
Confidential Documents
-
Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )
-
Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)
How to Buy
Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
as well as at more than 100 showroom or international locations and several online retailers.
Technical Support
Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
call us at 1.800.705.SERV (7378).• FAQs
• Contact Us (Lighting Fixtures)
• Contact Us (Controls Services & Support)
Warranty
Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.
• Review Terms & Conditions or Product Warranties
• Register a Recently Purchased Product
View Stocked Products
-
Is the new stocked product detail helpful? Please tell us what you think, CLICK HERE.
SKU data not available, please contact your local agent.
{{getMinimumDisplayedIndex()}} - {{getMaximumDisplayedIndex()}} of {{filteredStockedProducts.length}} results
(No Products Found){{result.Title}}{{result.Title}}{{result.Description}}Quantity{{(result.Quantity > 0) ? result.Quantity : 0}} in {{result.Location.substring(result.Location.indexOf("(")+1, result.Location.indexOf(")"))}}Total at all DCs: {{result.EnterpriseAvailability}}Distr. Price${{result.Price | number : 2}}Distr. PriceContact AcuityDistr. PriceContact RepDistr. PriceGET PRICEDistr. PriceNo pricing establishedNo Locations Could Be Found.
This catalog # is not available at any location at this time. Inventory is replenished daily, please check back or contact your local sales representative or agency further details.
Your session has expired. Click on the login link to view stocked product information.
Login/RegisterProduct information is not available at this time. Please try again later.Available Est. Ship Date Location In Transit {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}} {{loc.IN_TRANSIT_QUANTITY}} Restocking date is unavailable at this time. Location Est. Restocking Qty & Date {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}} Available{{loc.QUANTITY > 0 ? loc.QUANTITY : 0}}Est. Ship Date{{loc.ESTIMATED_SHIP_DATE}}Location{{loc.LOCATION}}In Transit{{loc.IN_TRANSIT_QUANTITY}}Restocking date is unavailable at this time.Location Est. Restocking Qty & Date{{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}View AllView Less

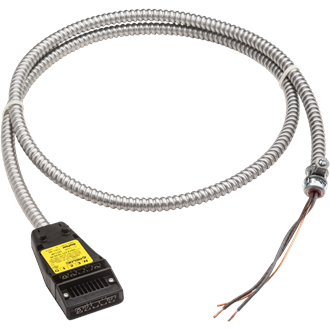

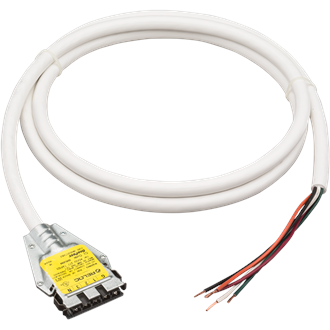

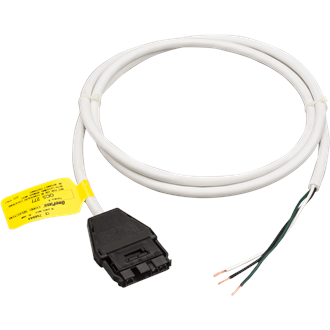

Compatible Products
