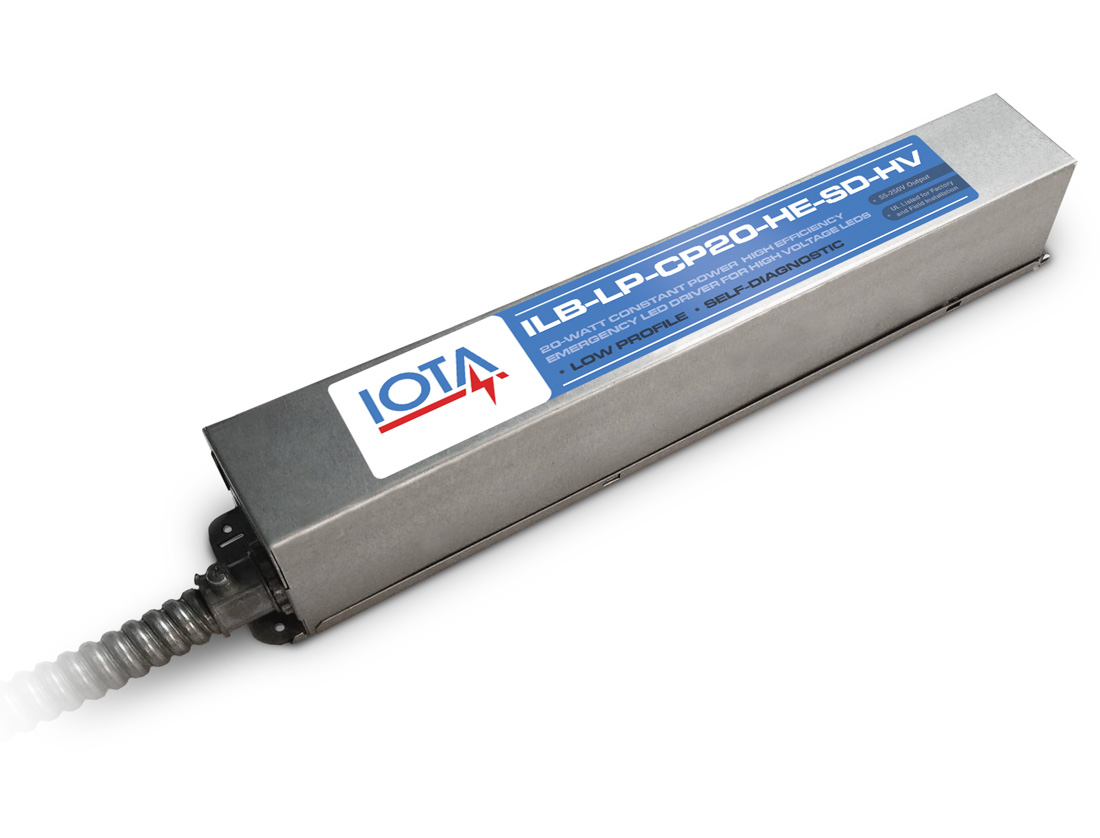

ILBLP CP20 HE SD HV Emergency LED Driver

20 Watt Constant Power Low Profile High Voltage Emergency LED Driver

By IOTA

    CA Title 20
  • Overview
  • Specifications
The IOTA ILBLP CP20 HE SD HV is a UL Listed emergency LED driver for field and factory installation that allows a fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP20 HE SD HV switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure with the option of either single or dual flexible conduit for wiring to the fixture and test accessories. The patented Constant Power design of the unit maintains the rated output wattage to the LED array even as the battery voltage diminishes, resulting in a constant illumination level for the entire emergency runtime. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard. Self-diagnostic status is communicated via the illuminated single-piece test accessory, which can be mounted up to 25 ft. from the unit.
LED Operation
  • 20 Watts Constant Power
  • 55-200 VDC Output
Product Advantages
  • Auto-Sensing Non-Class 2 Output
  • Constant Power Performance
  • Self-Diagnostic / Self Testing
  • High Output for Increased Illumination
  • Certified for CA Title 20
Features
  • UL 924 Listed for U.S. and Canada
  • Two flexible conduit options for wiring to the fixture
  • AC-Activate circuity simplifies wiring by eliminating the need for manual battery connection during installation
  • Maintenance-free, high-temp recyclable LiFePO4 for significantly reduced space requirements
  • Durable, galvanized steel enclosure
  • Single-piece test switch and charge indicator can be remote-mounted up to 25 ft
  • For use with switched or unswitched fixtures
  • 5-year warranty.
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Suitable for use in plenum, damp location, and enclosed and gasketed luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 55-200 VDC
Output Power 20 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type Lithium Iron Phosphate
Battery Recharge Time 24 hours
Battery Activation AC Activate
Life Safety Testing Self Diagnostics, Self Test
Regulatory Listing C-UL-US, cUL
Compliance Listing CA Title 20, ROHS
Series ILBLP

Read More Read Less
