Compact Pro LED High Bay

The Compact Pro High Bay by Lithonia Lighting™ is the budget-oriented high bay designed for contractors from the ground up. It’s the most compact high bay on the market, making it easier and quicker to install. Built with quality to last and performance to get the job done. At the price you need to win.

The Story Design Performance Quality Controls Gallery

Save Time, Save Money, Without Compromising Quality

Watch this video to learn how Compact Pro redefines the High Bay Industry!

Small Design, Big Savings

The ultra-compact size and innovative packaging makes for a quick and easy install, saving you time and money!

CPHB_Contractor Image_Final

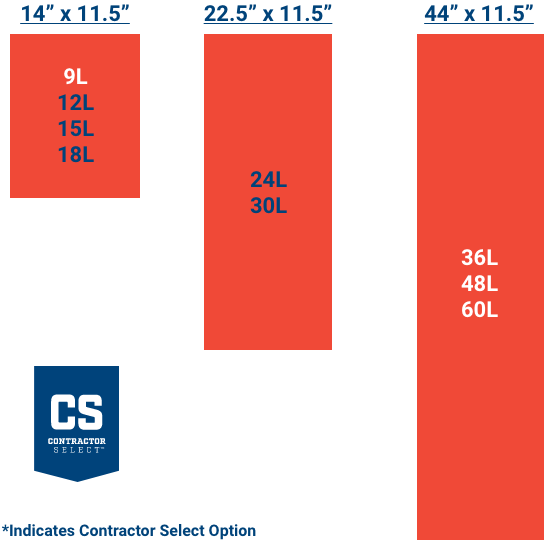

Contractor Graphics

Reduces install time and labor by >30%

Reduces packaging waste by >75%

Ships with up to >140 units per pallet

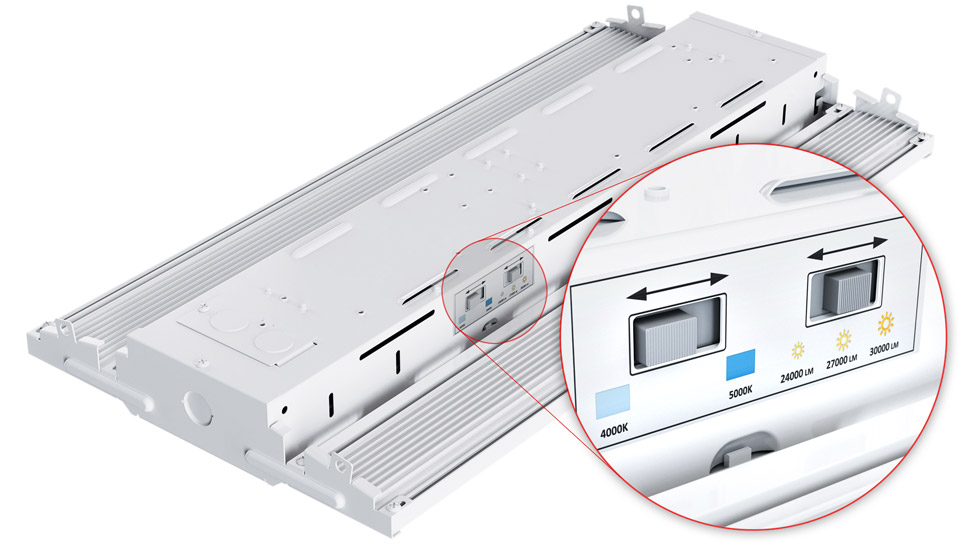

Switchable Lumens and Color Option

12 Configurations in 3!

ALO 13: 4000K/5000K with 12,000L/15,000L/18,000L
ALO 16: 4000K/5000K with 24,000L/27,000L/30,000L
ALO 22: 4000K/5000K with 12,000L/15,000L

Static Options

Lumen Outputs:
12,000L - 30,000L available through Contractor Select
9,000L – 60,000L available through Design Select or Made-to-Order
Color Temperature:
4000K/5000K available through Contractor Select
3500K/4000K/5000K available through Design Select or Made-to-Order

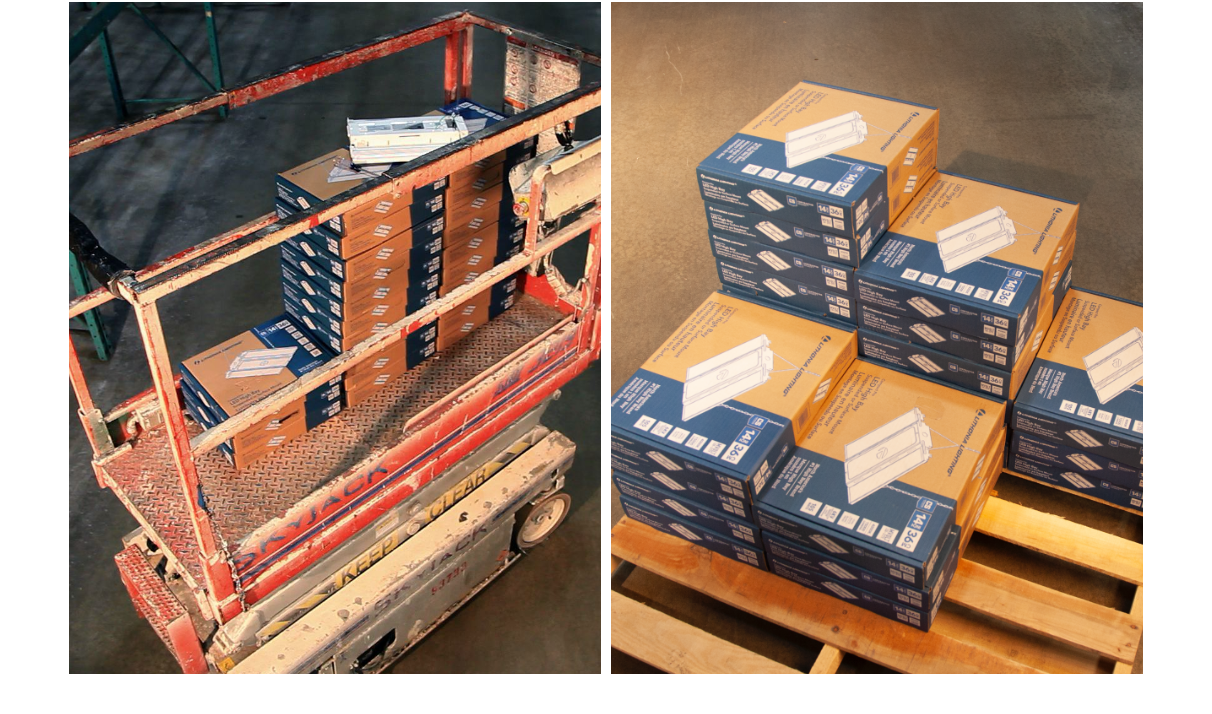

Optimized Unit Pack

Fits 3x more on a lift saving both time and money

Job_2x

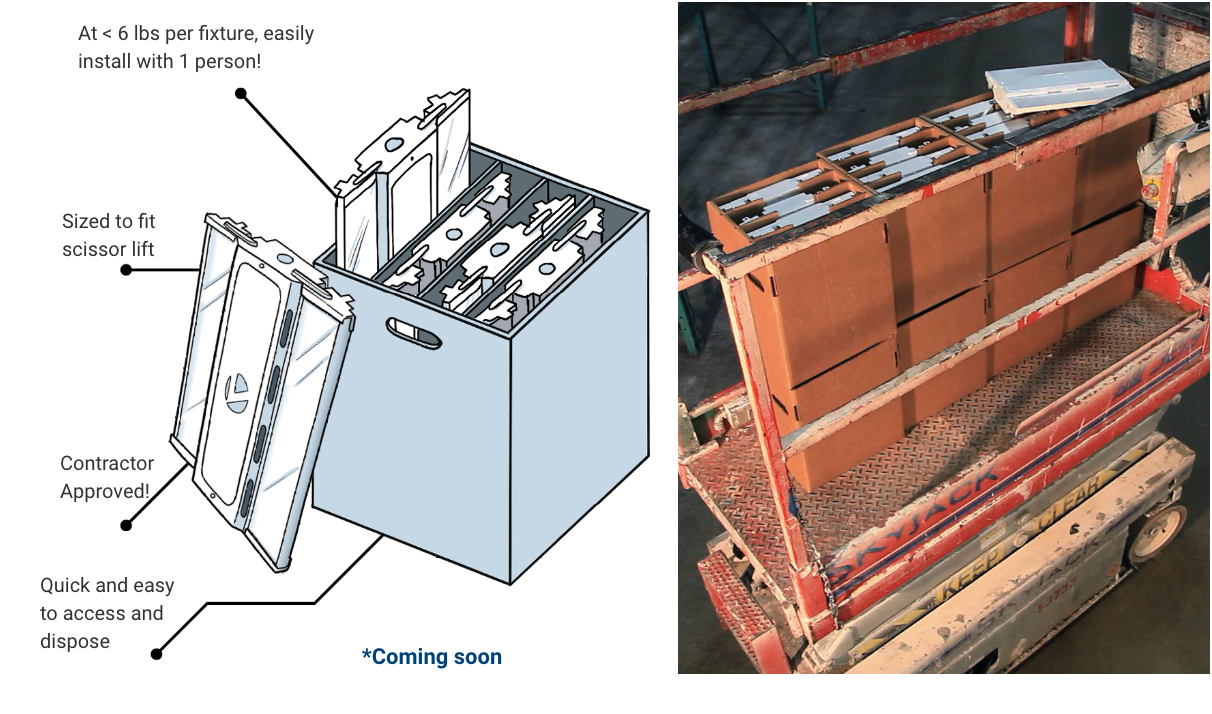

Job Pack

Contractor-Friendly Job Pack

Job12x

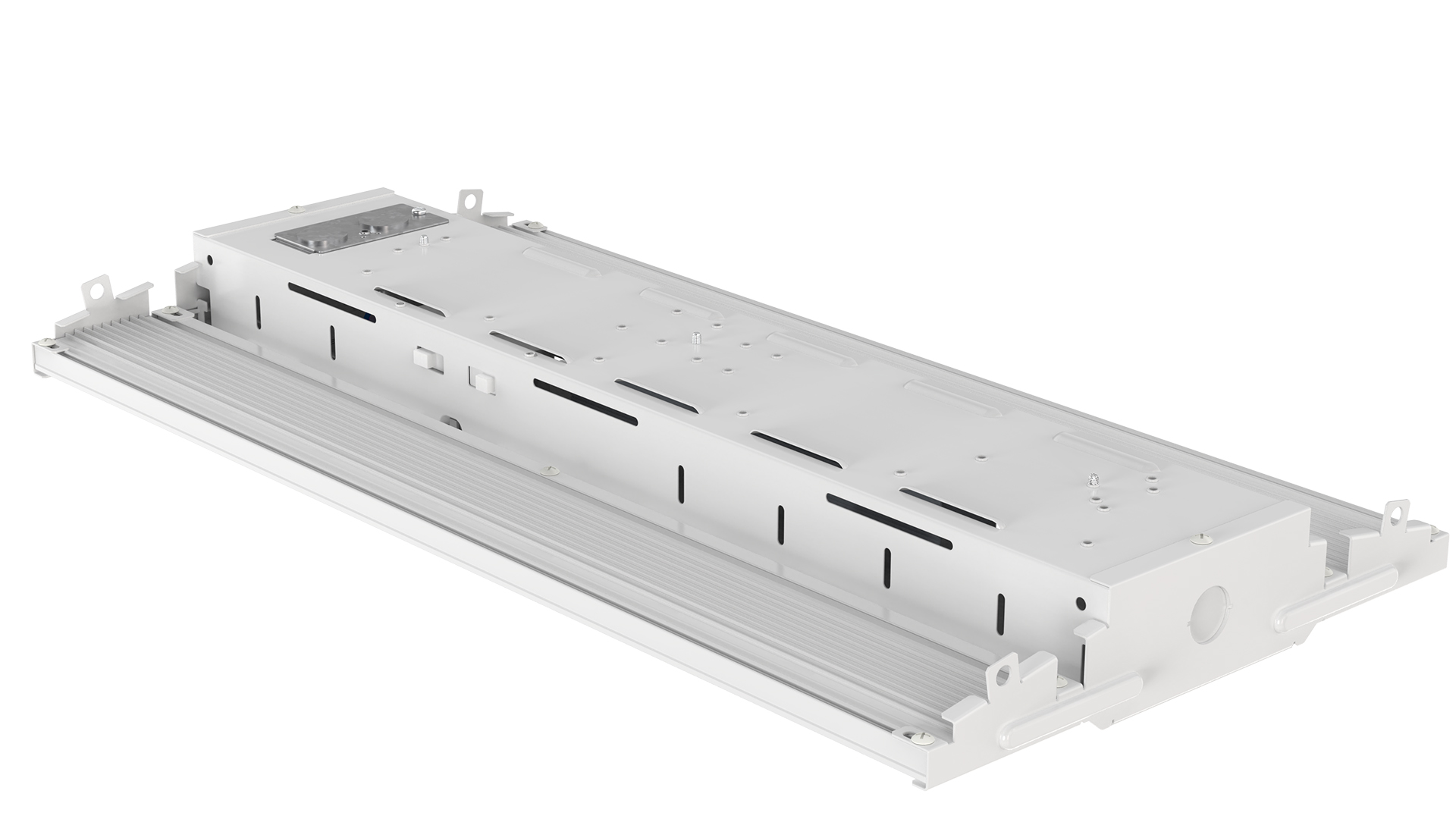

Ultra Compact Size, Full Scale Performance

30-50% smaller than typical high bays without sacrificing performance
Glare Reduction Optics featuring White Optics^® Technology allowing for maximum light output while reducing glare
Meets DLC 5.0 and 5.1 UGR glare ratings

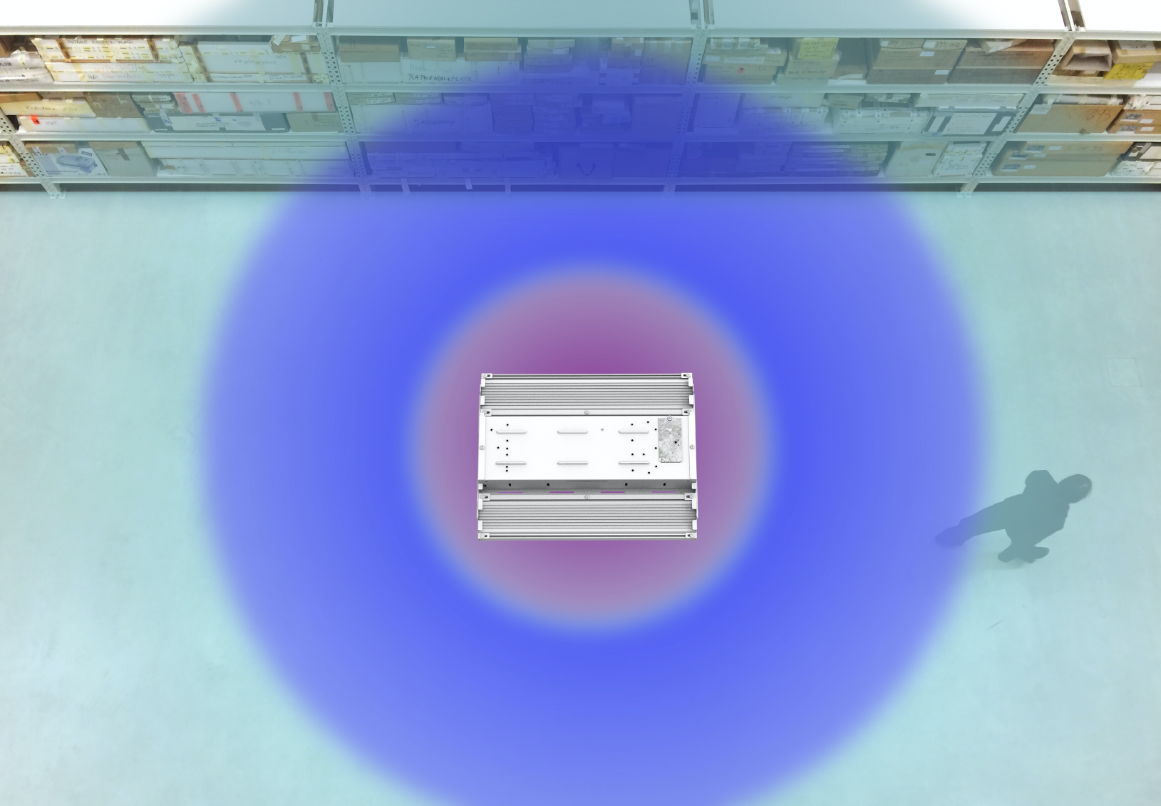

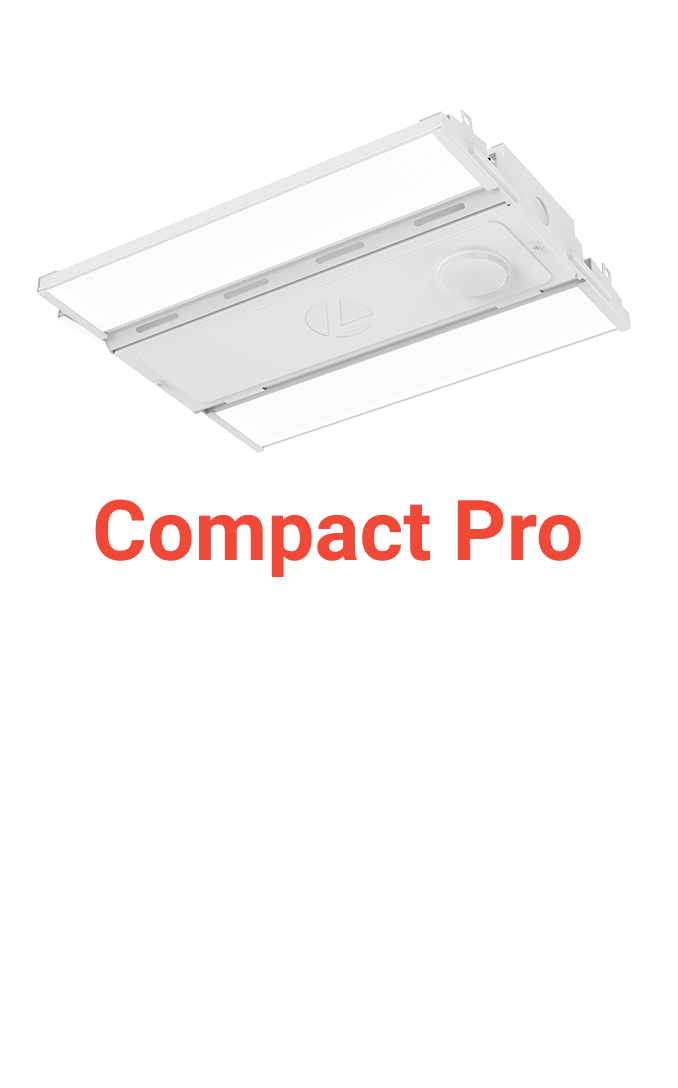

Compact Pro

CPHBarial light comparison2x

Typical 2ft / 4ft High Bay

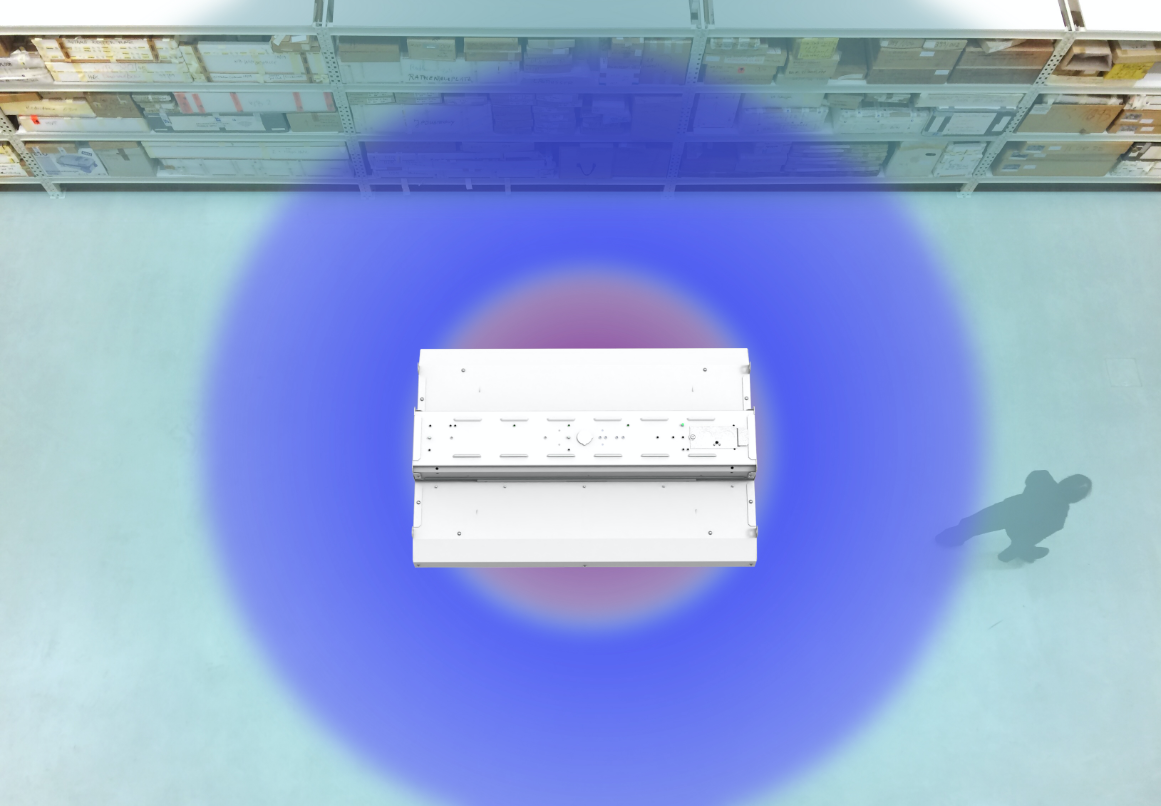

CPHBarial light comparisonibe2x

* True one for one replacement of a typical 2ft high bay

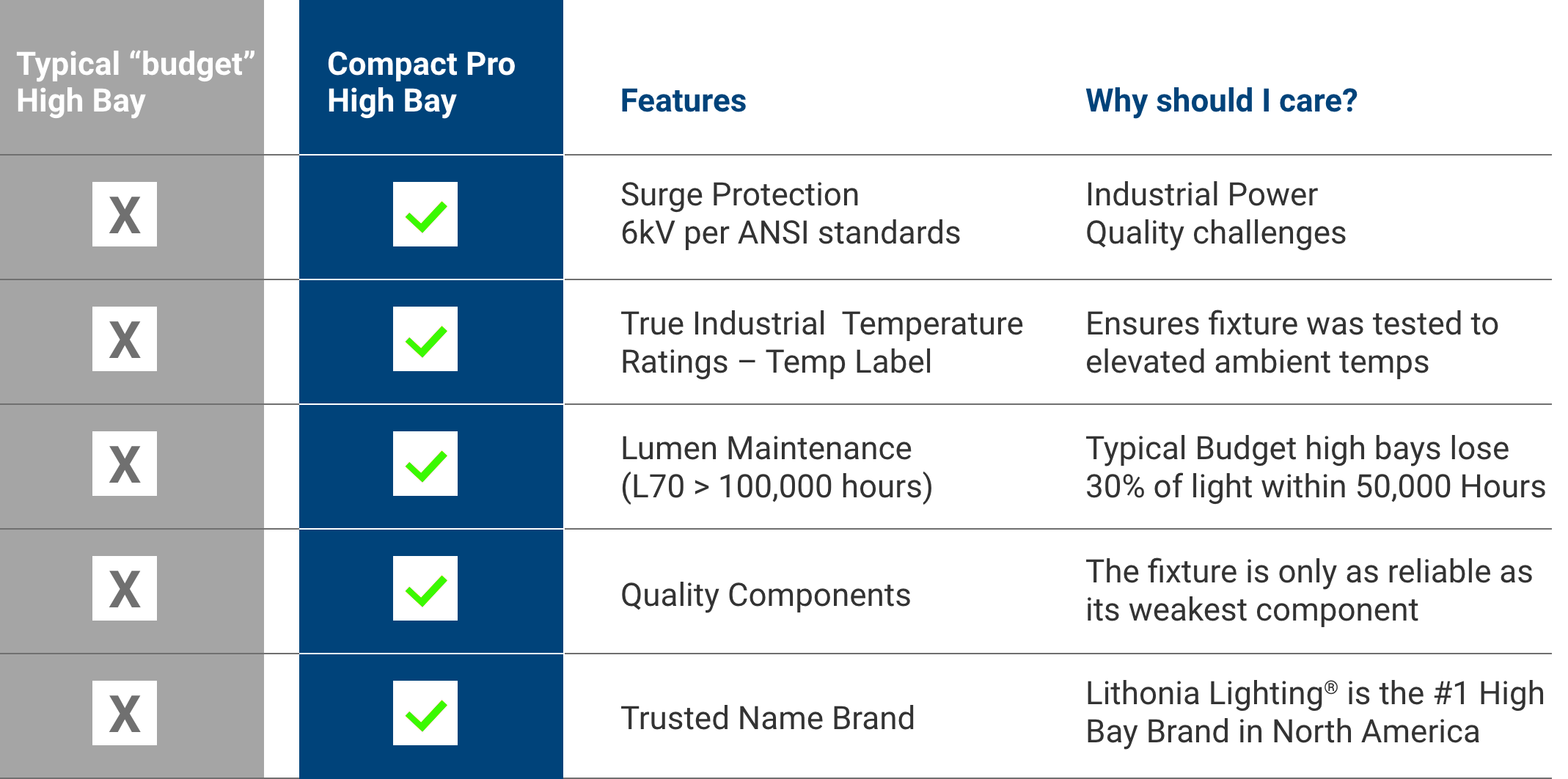

Rock Solid Quality

Unlike most ‘budget’ high bays on the market, Compact Pro doesn’t cut corners when it comes to quality, designed with key ratings and specs needed for real industrial spaces.

Lighting Controls for CPHB

The Compact Pro High Bay achieves energy savings up to 63%* and addresses utility rebates with standalone or networked occupancy and daylight controls.

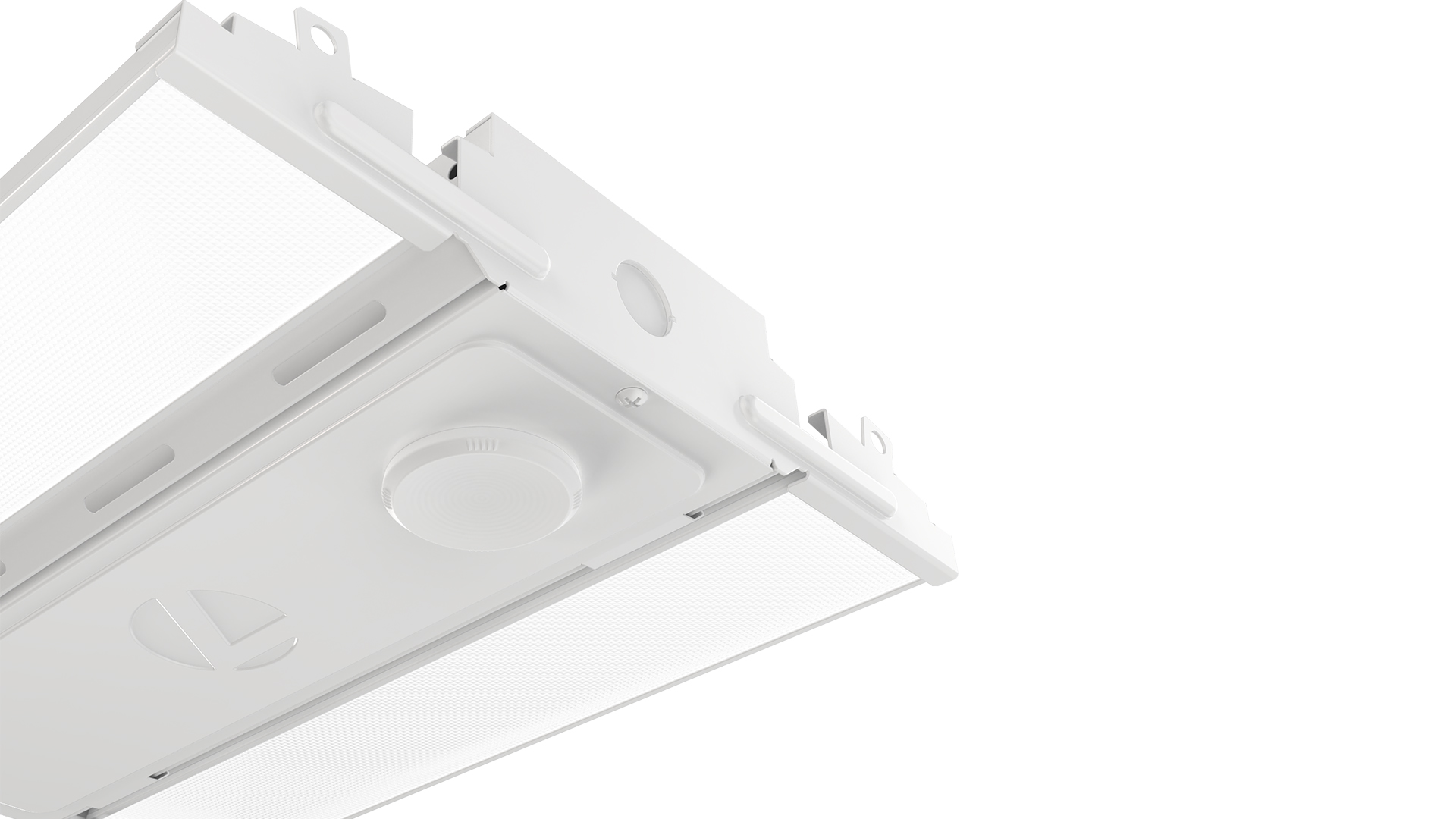

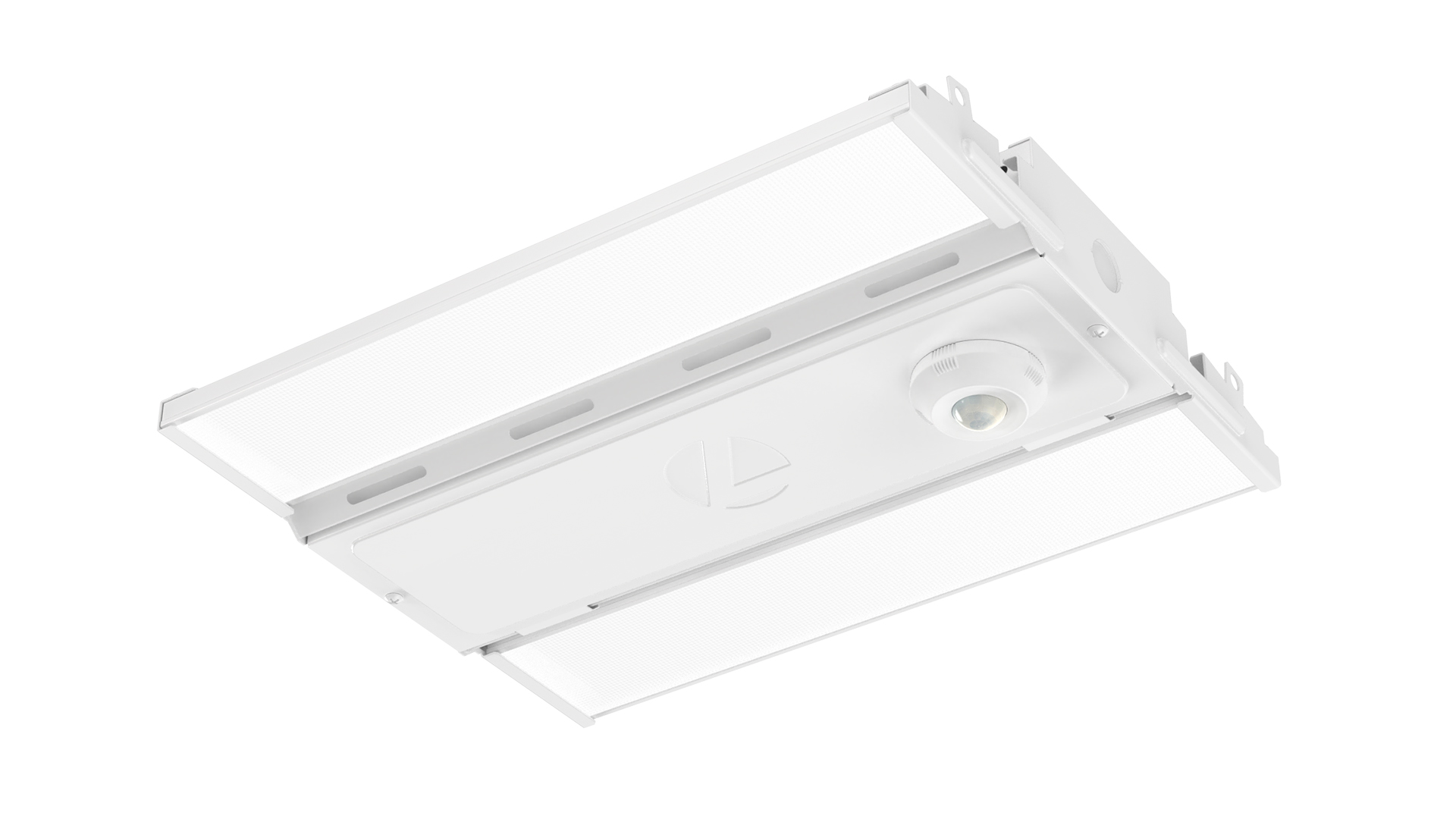

TLS Sensor by SensorSwitch™

The TLS Sensor by SensorSwitch™ is available as field-installable with twist-to-lock, tool-less installation offering flexibility within CPHB and other industrial luminaires.

The Infrared Wireless Programmer allows for programming TLS sensors while installed or in the box, enabling changes from floor level – ideal for large spaces like warehouses.

SensorSwitch TLS Sensor is available with CPHB Contractor Select ALO13 and ALO16.

Other SensorSwitch Control Options

Haleon BTP from SensorSwitch™ offers Bluetooth® programmable controls, with additional standalone options available via the LSXR fixture-mount occupancy sensor..

Wireless nLight AIR Sensor by nLight®

Wireless nLight AIR Sensor by nLight® is available as embedded, addressing requirements of Luminaire Level Lighting Controls (LLLC). Configure the light you need and easily scale from one room to multiple sites with the nLight platform.

Aids in Code Compliance by setting levels in a given space as defined by the specific building code (when entering or leaving a room, as an example).

nLight AIR Sensor by nLight is available with configurable CPHBs.

*2025: Report: Energy Savings from Networked Lighting Control (NLC) Systems with and without LLLC - DesignLights– Design Lights Consortium

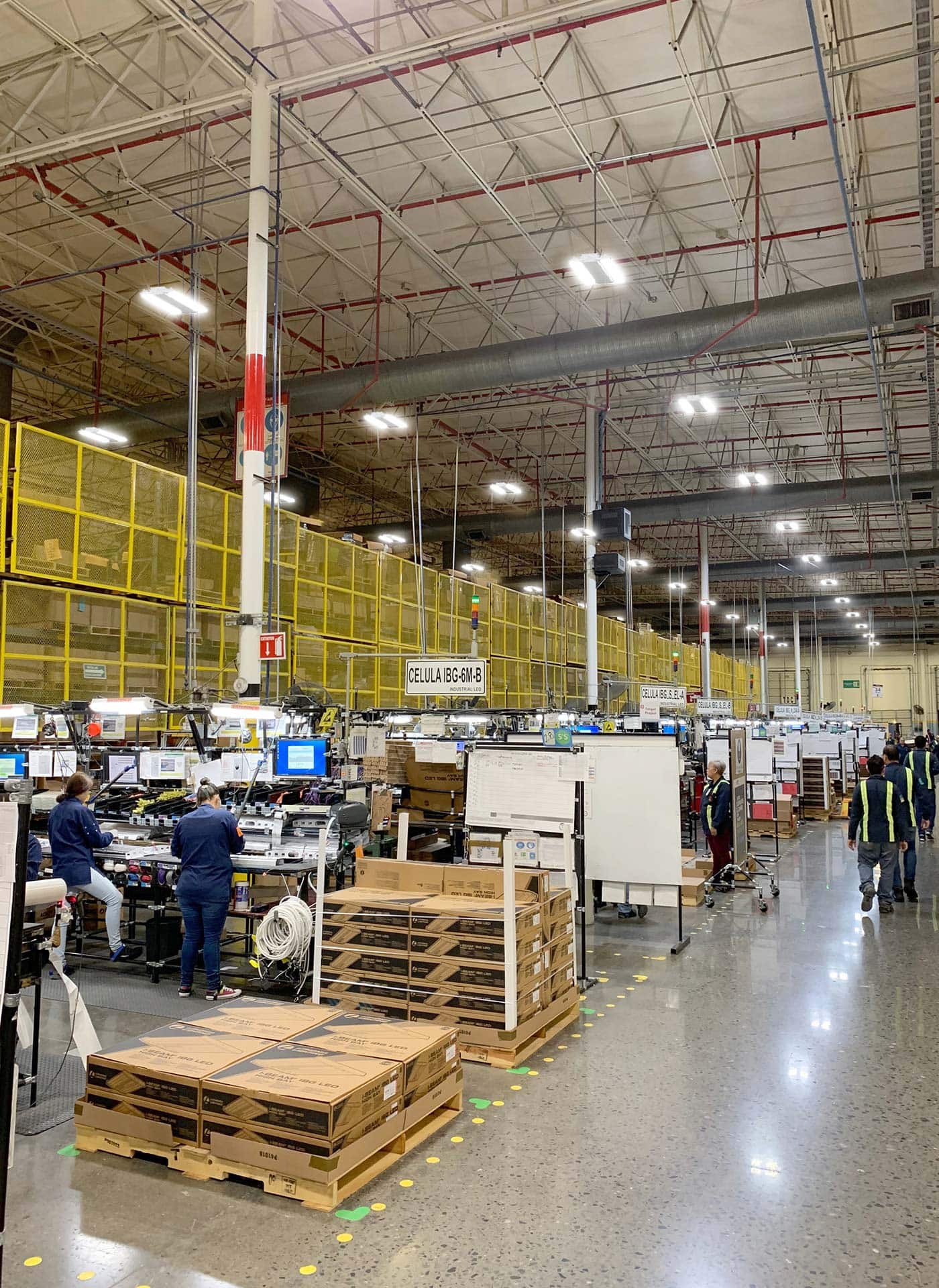

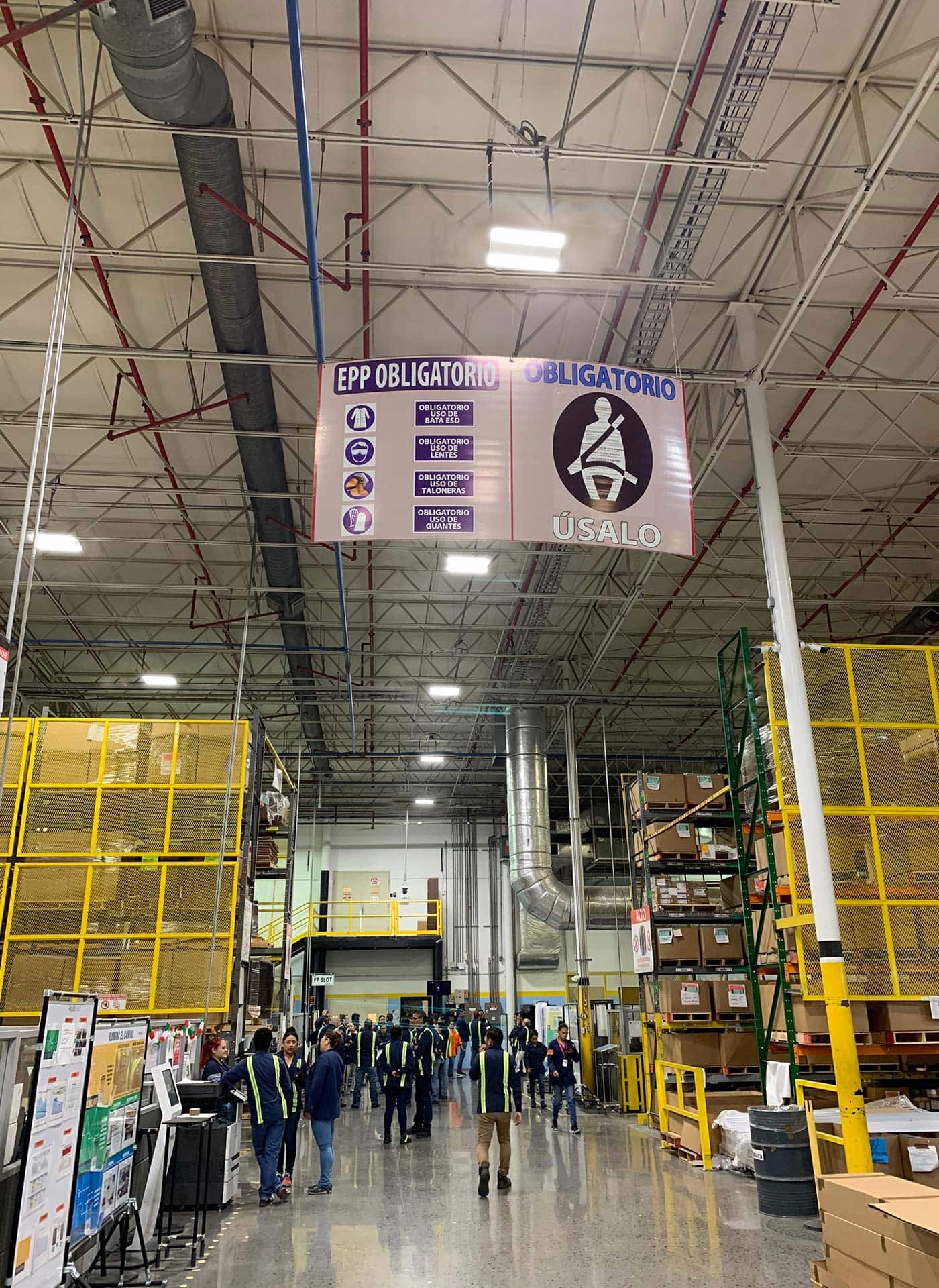

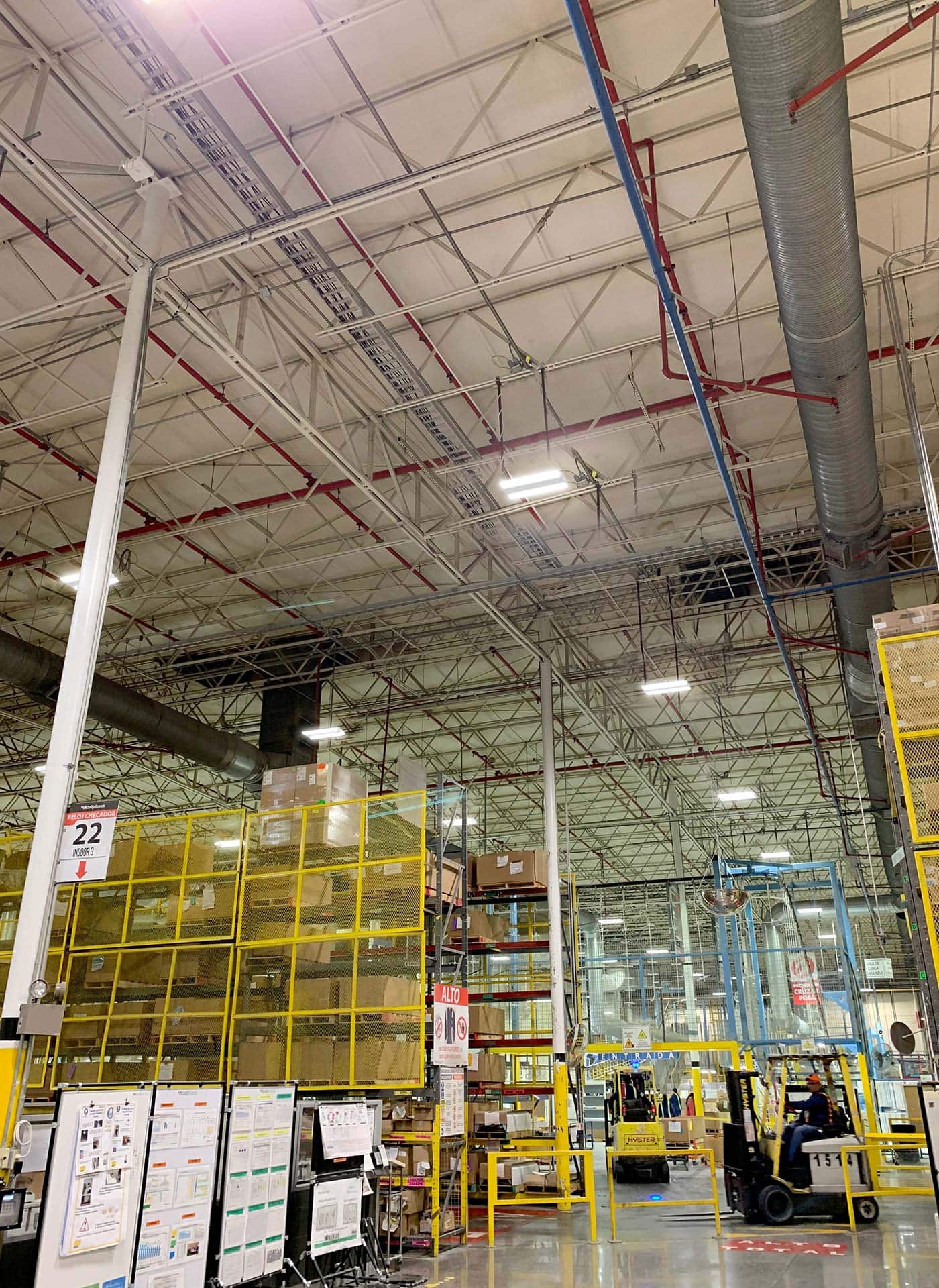

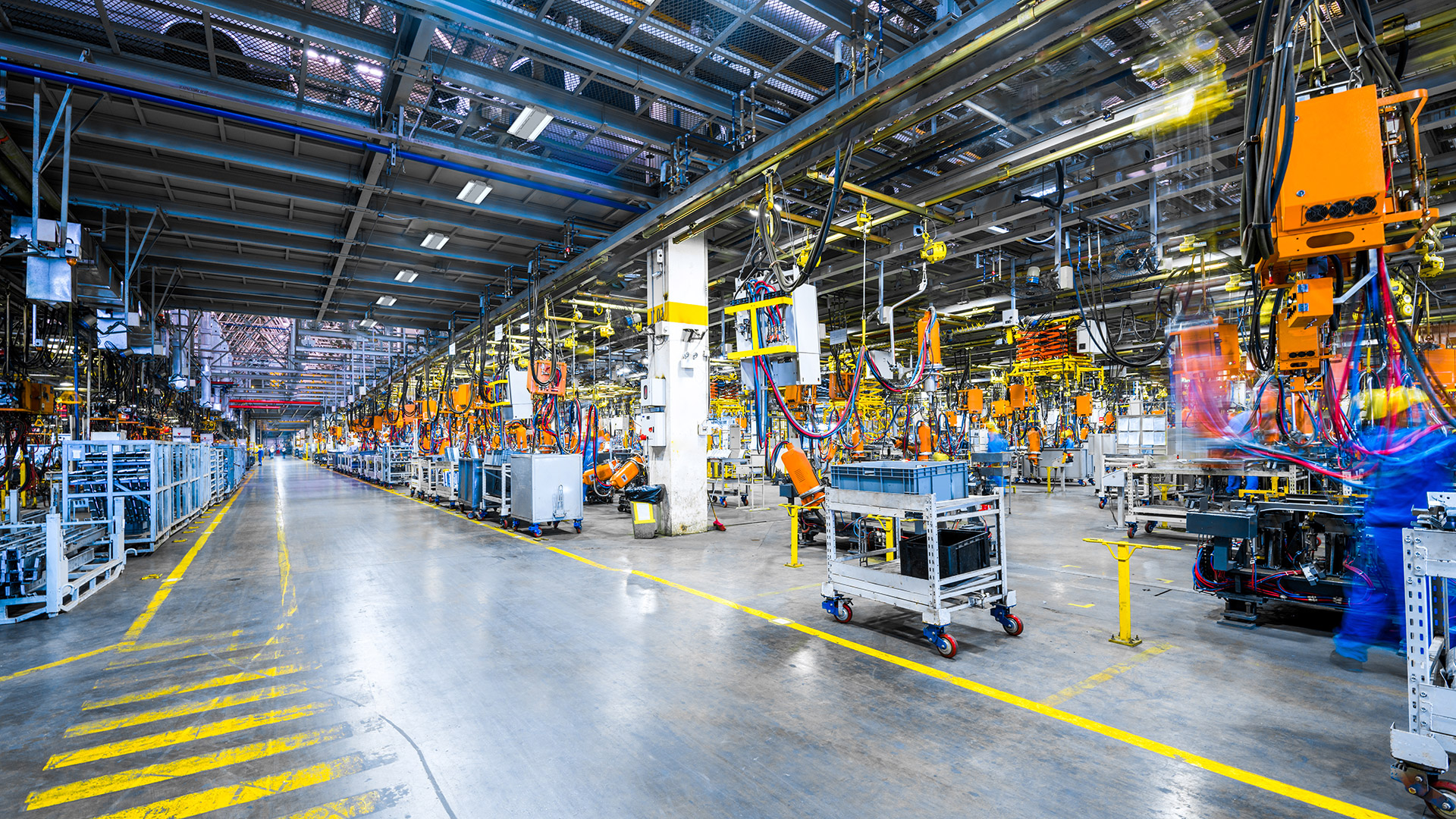

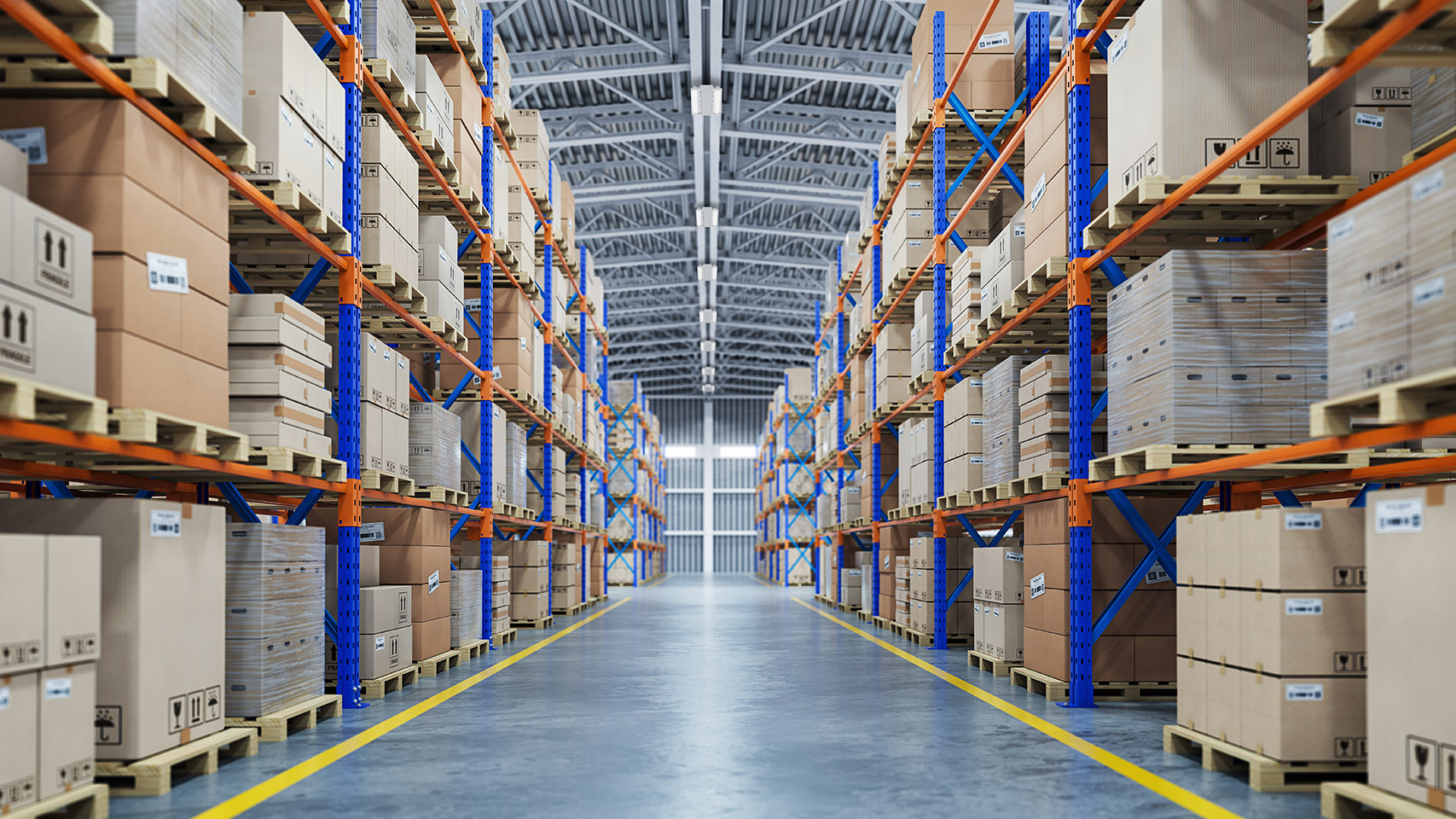

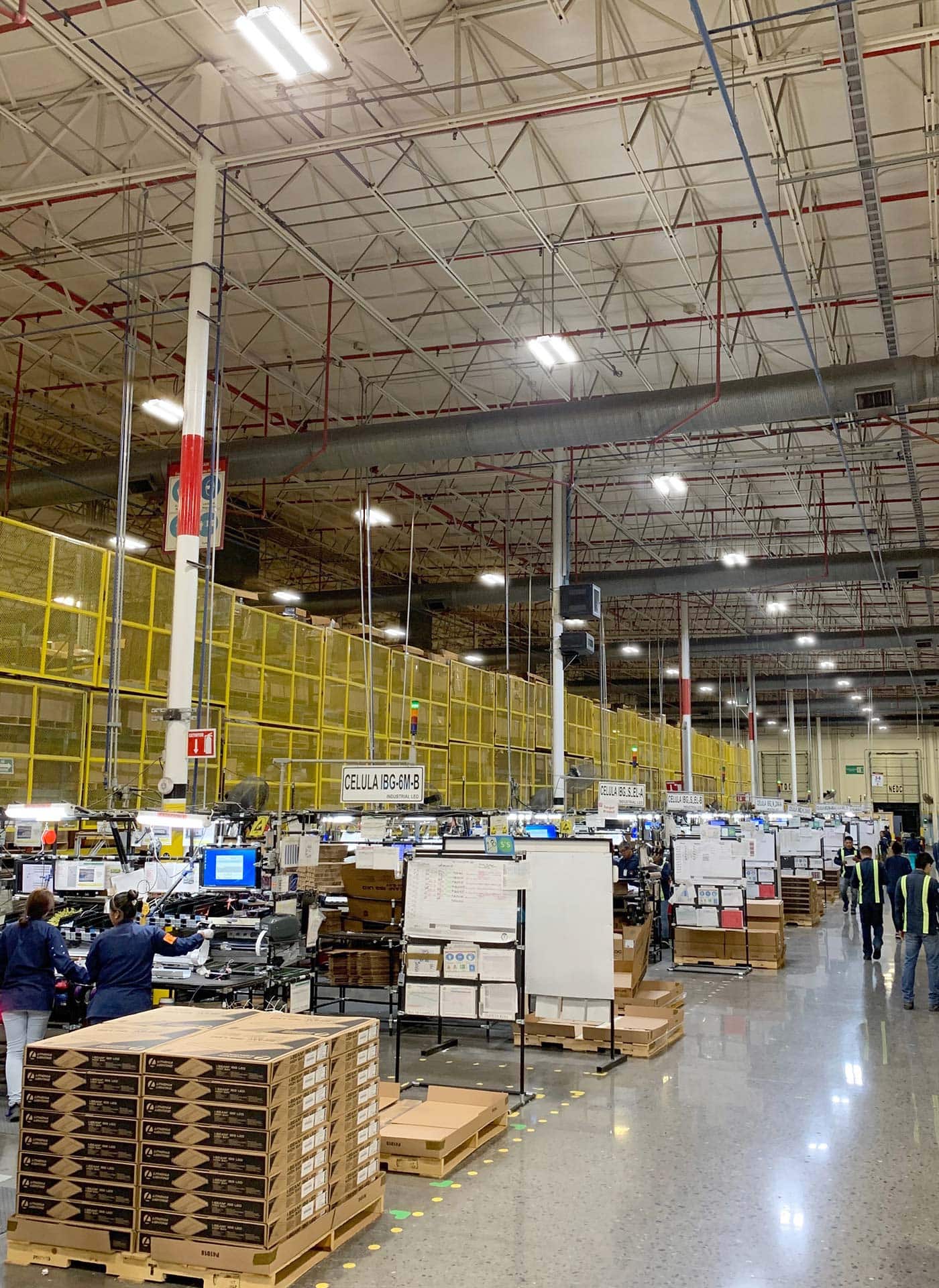

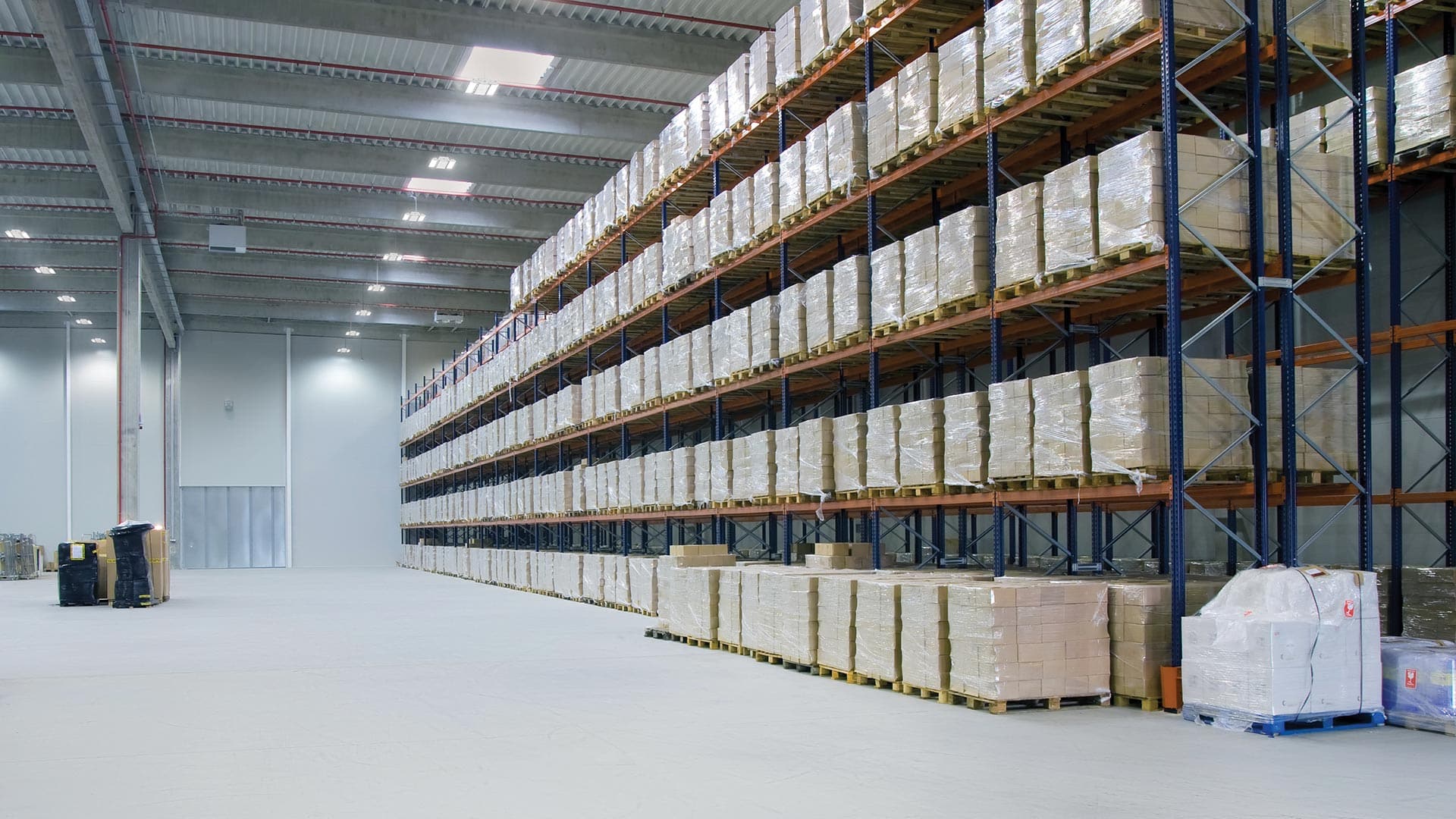

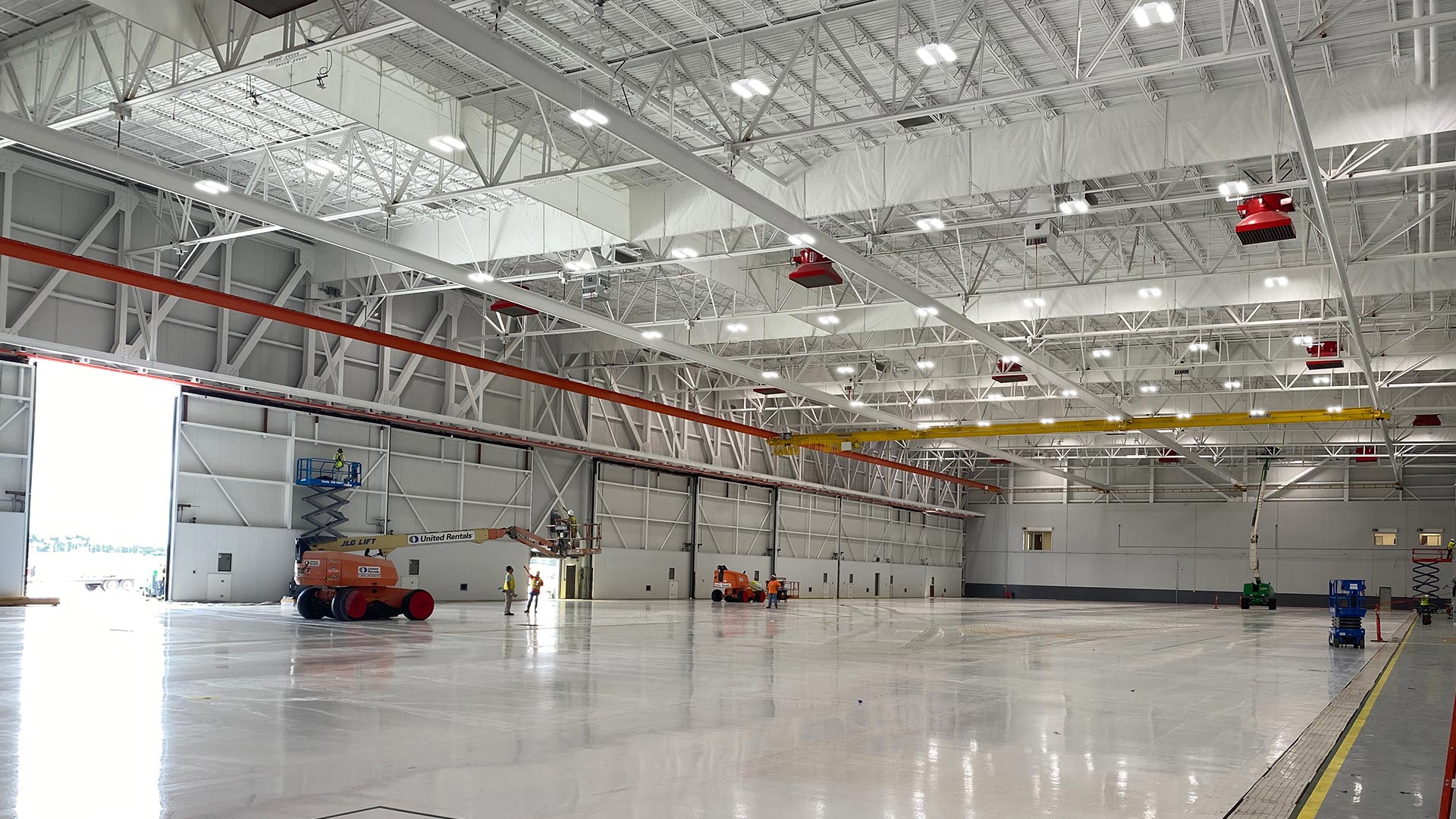

Application Gallery

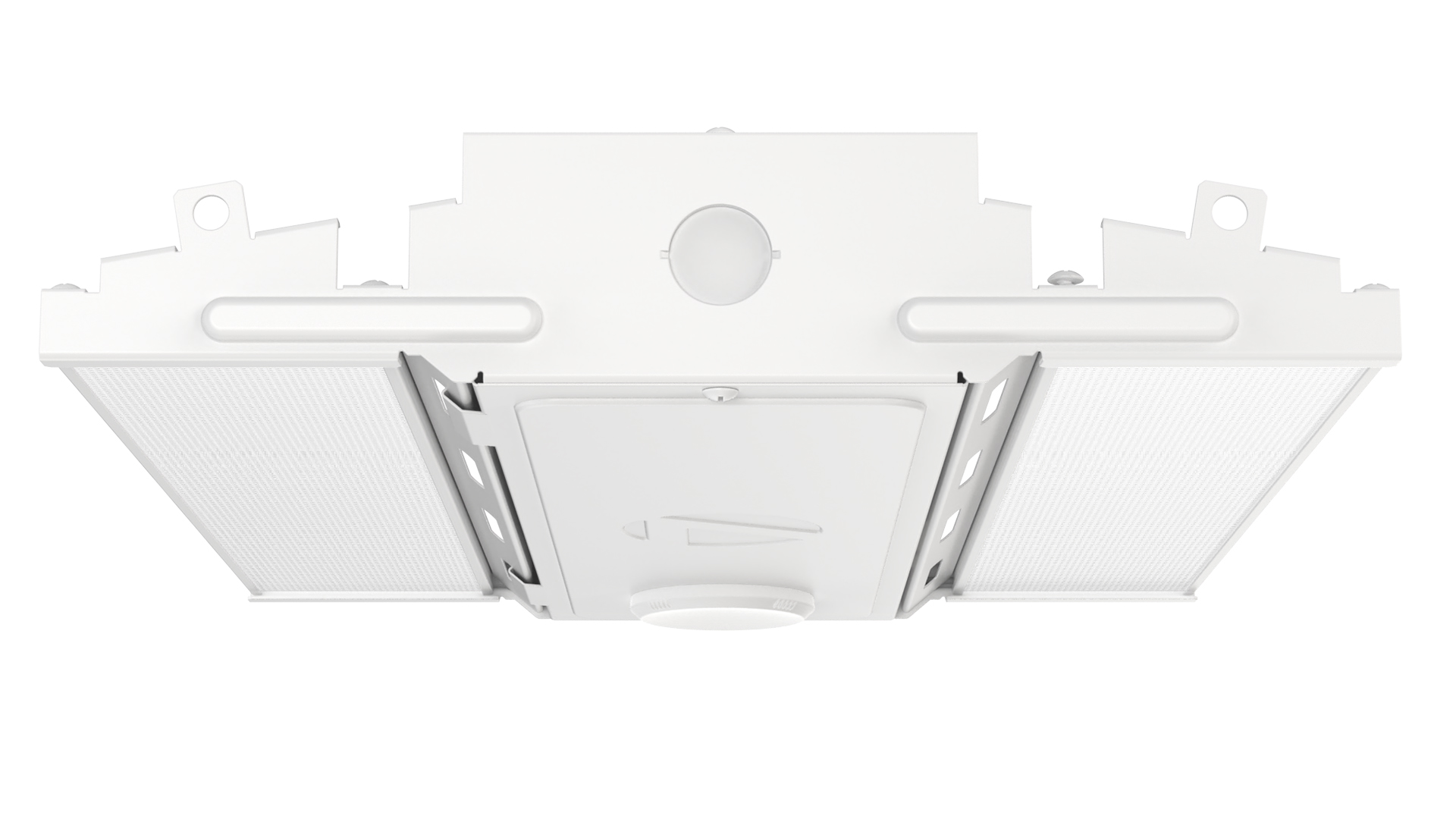

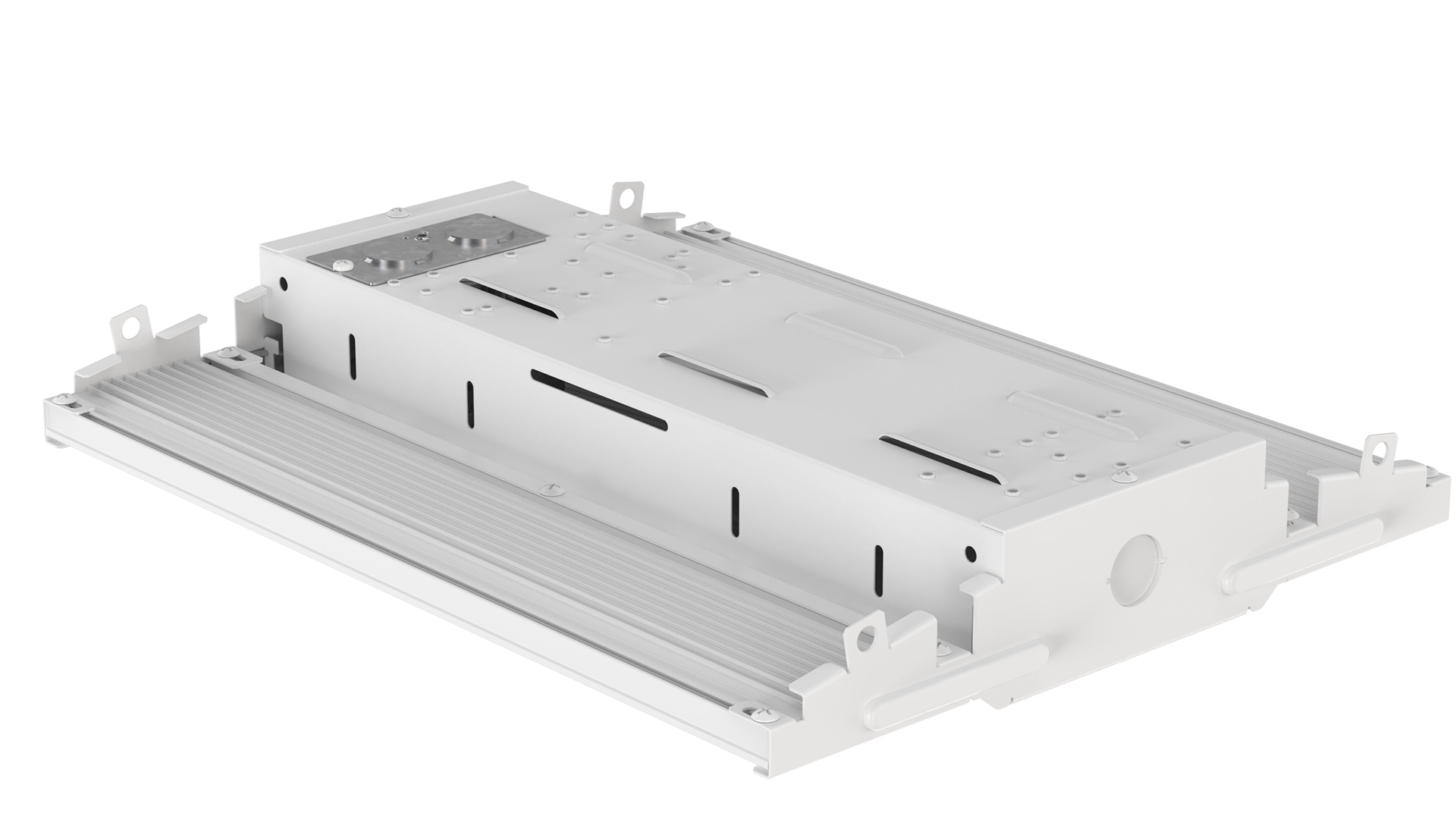

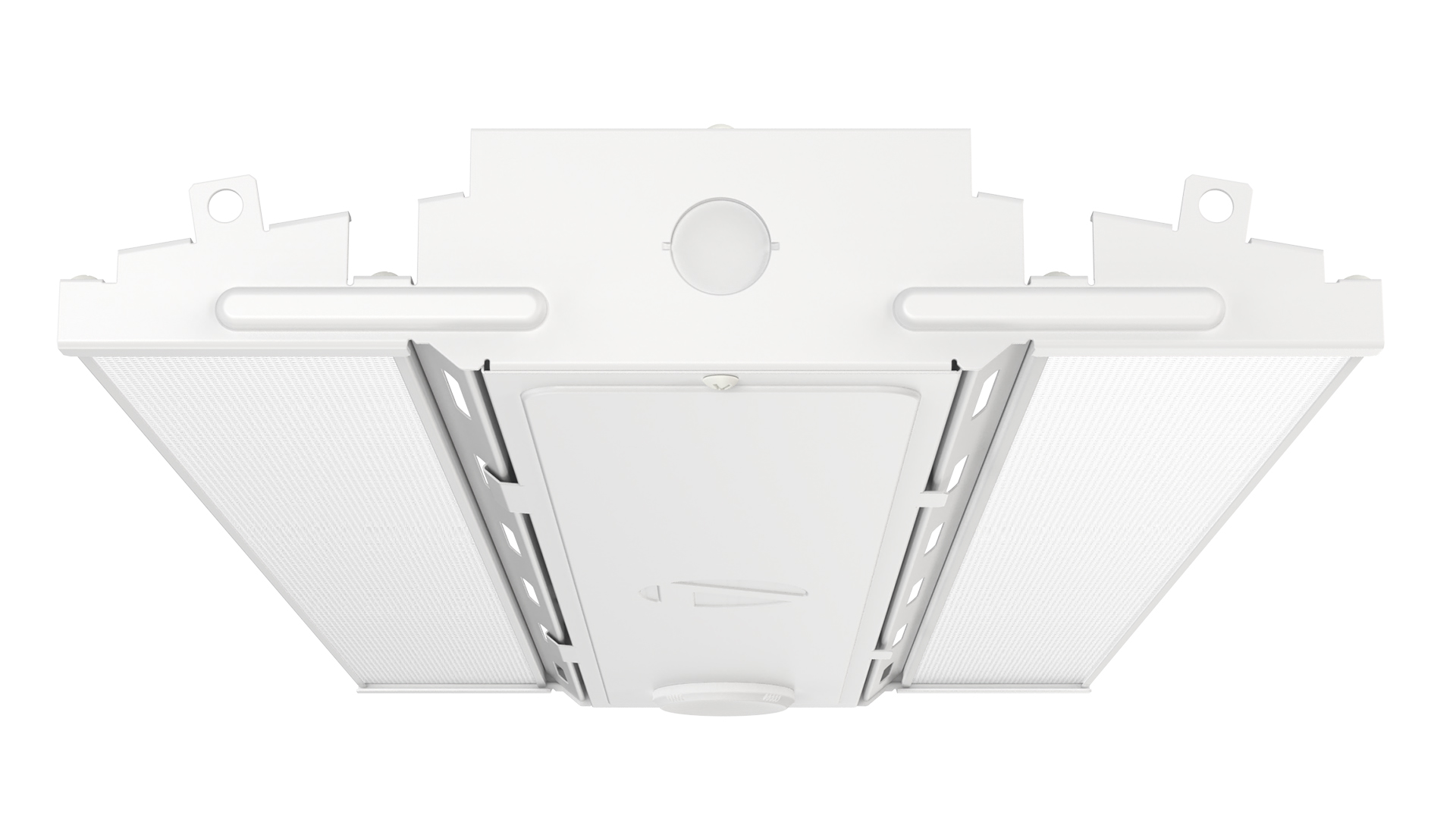

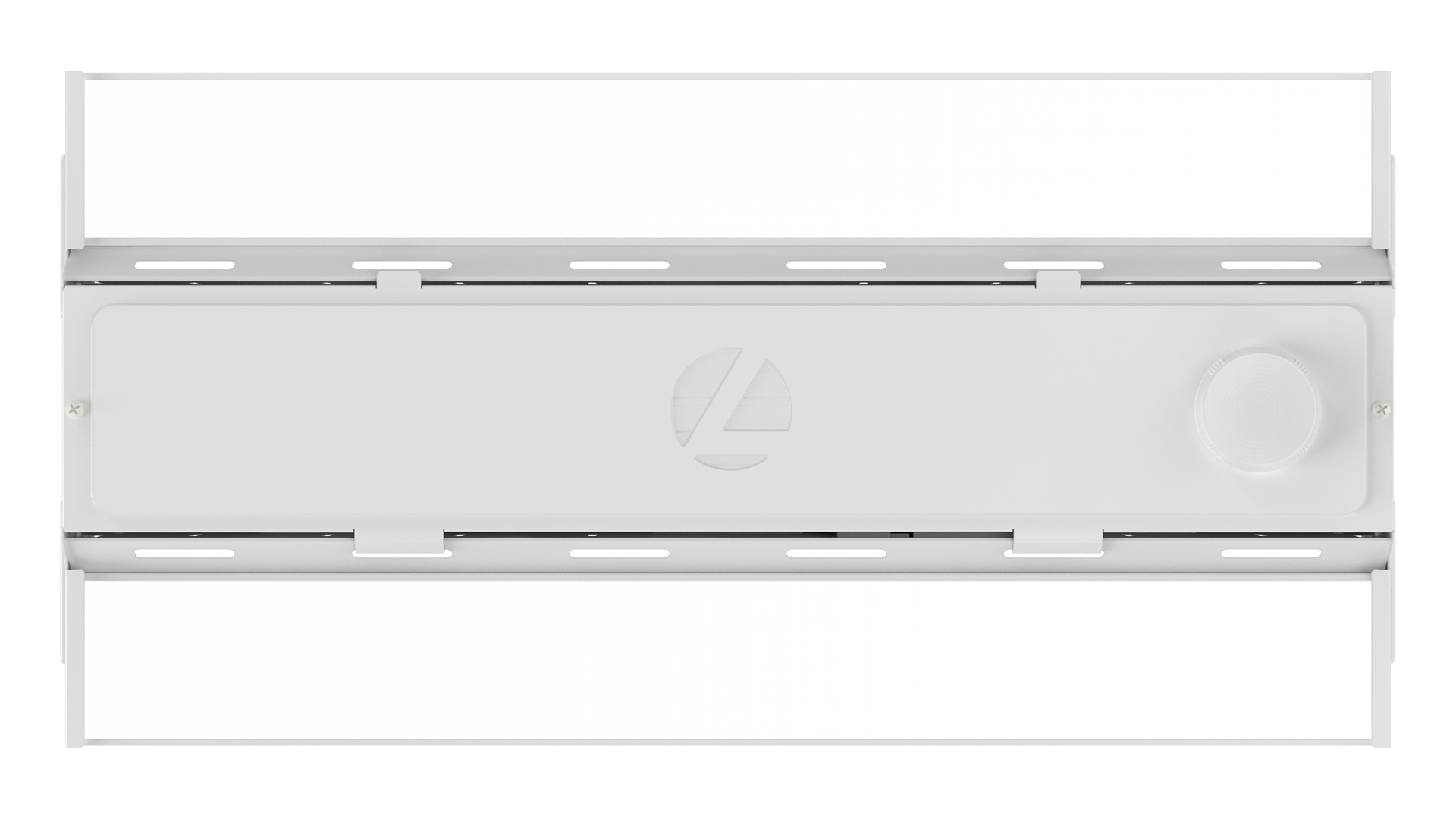

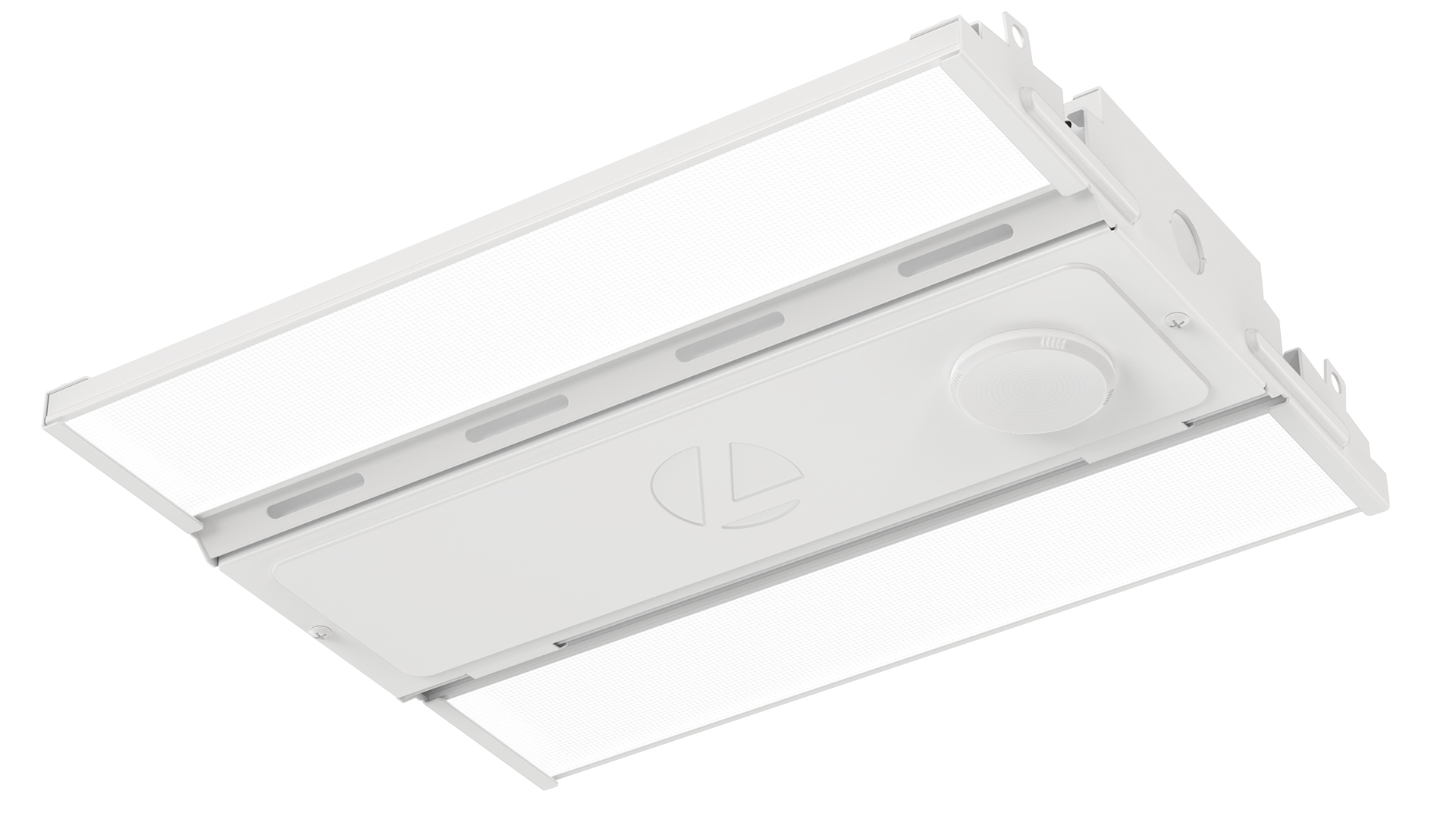

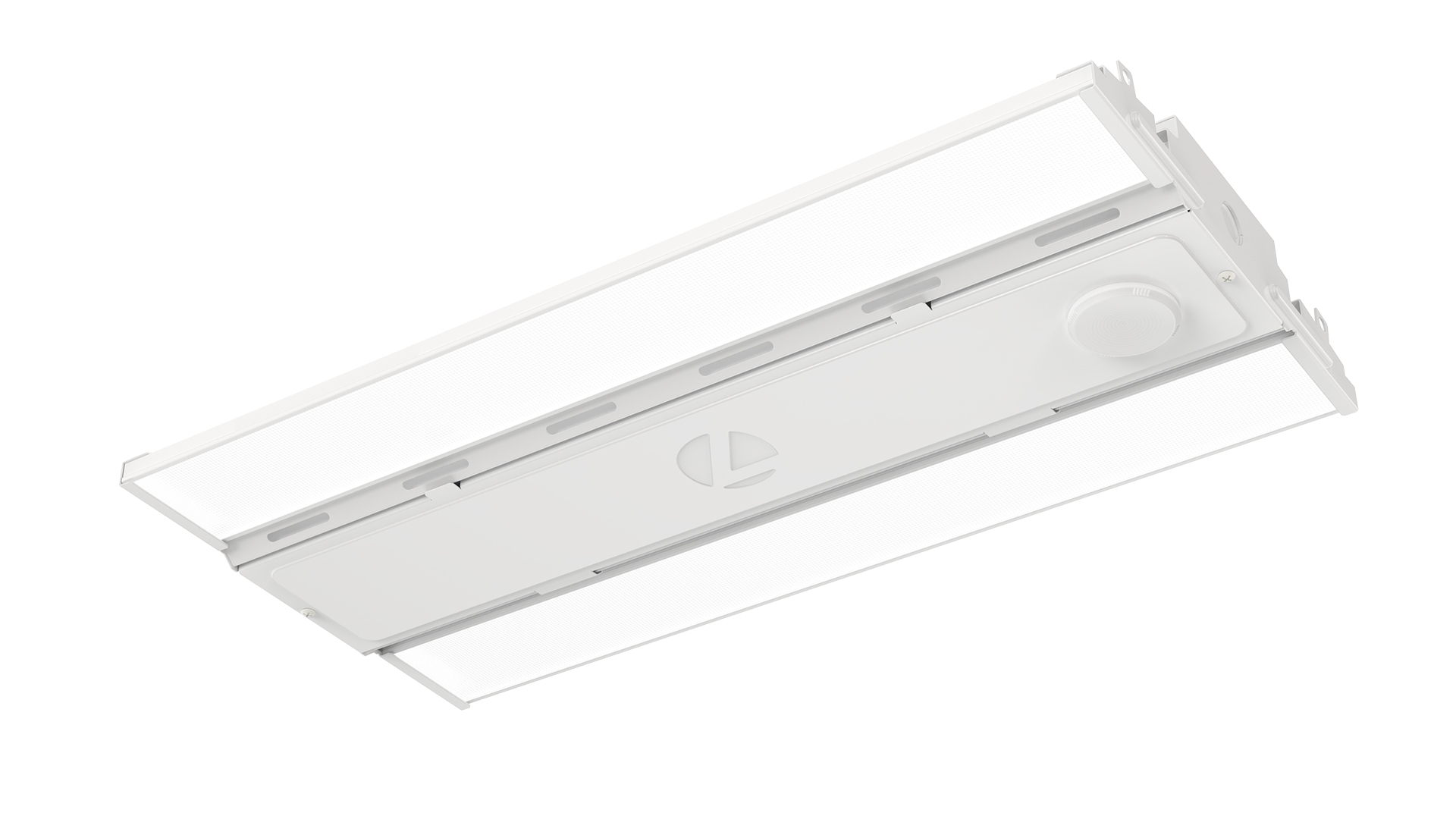

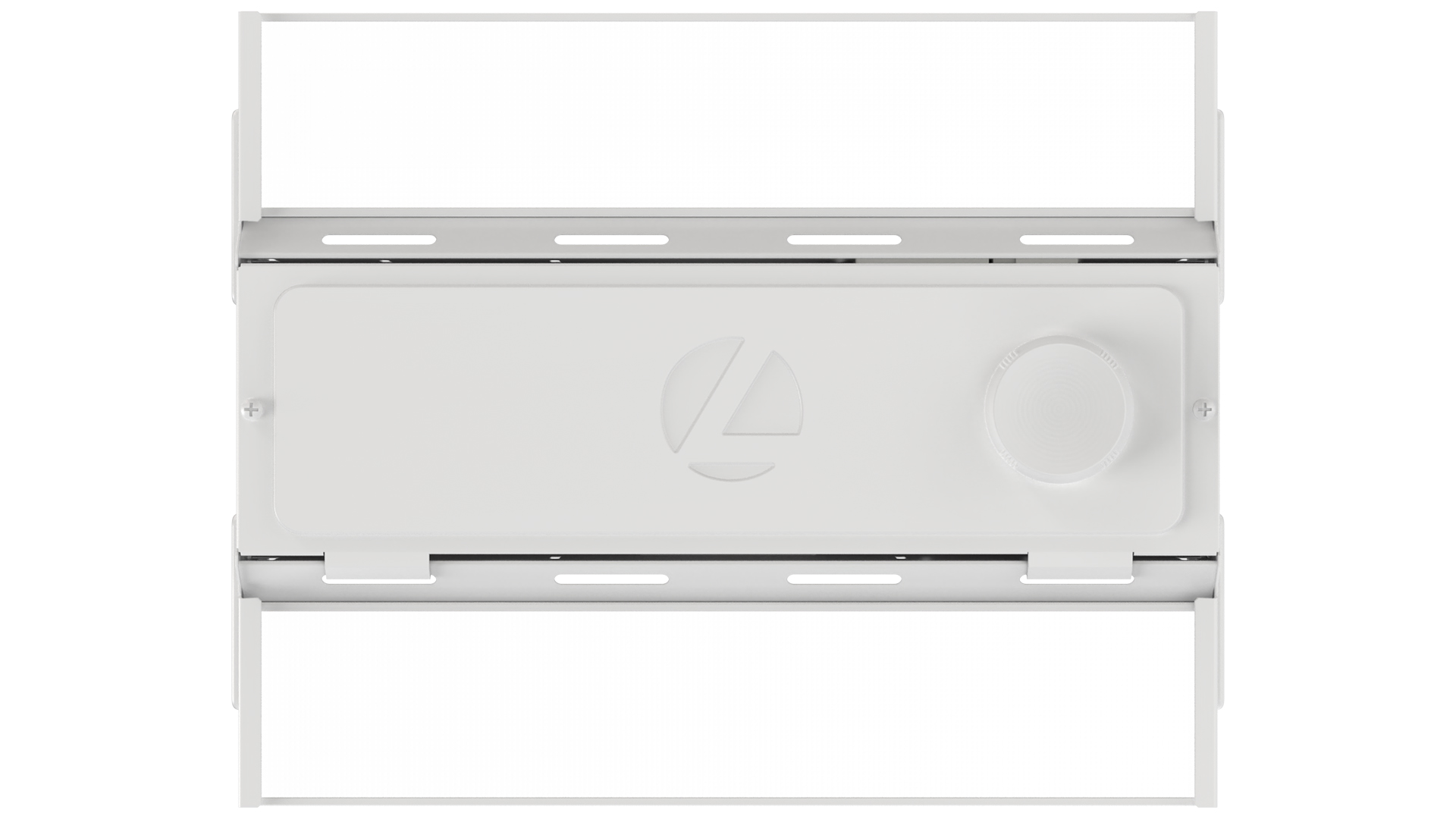

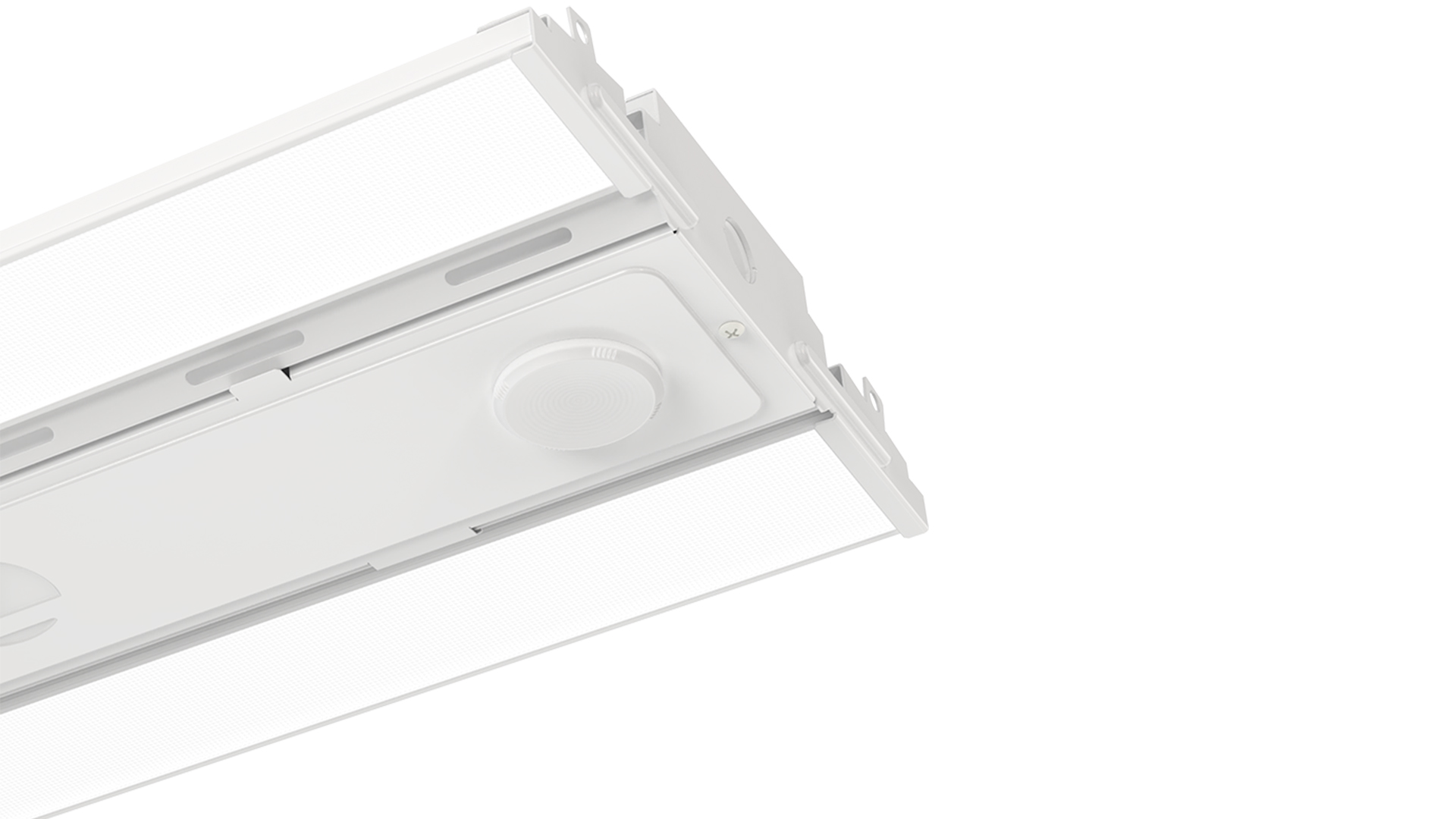

Photo Gallery

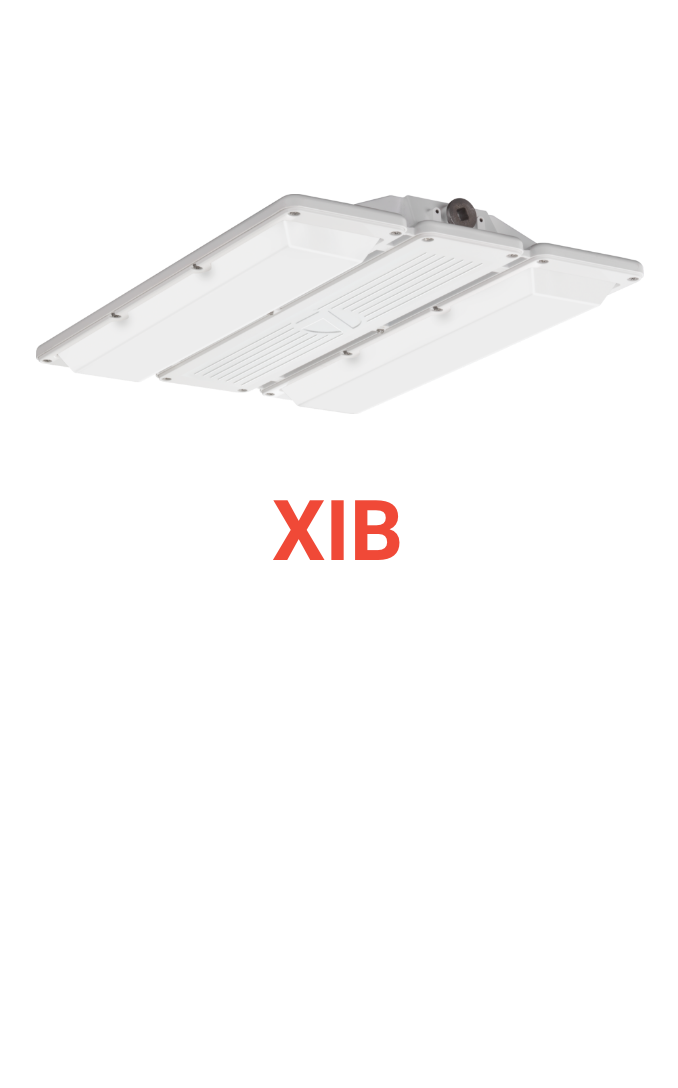

Comparison Chart

Which Lithonia Lighting® High Bay do I need?

Comp12x

All available with nLight® AIR wireless controls
