M9400C LED

LED Flow-Through In-Grade 9"

By Hydrel

    DLC Standard / PremiumBuy America(n) Option Available
  • Overview
  • Specifications

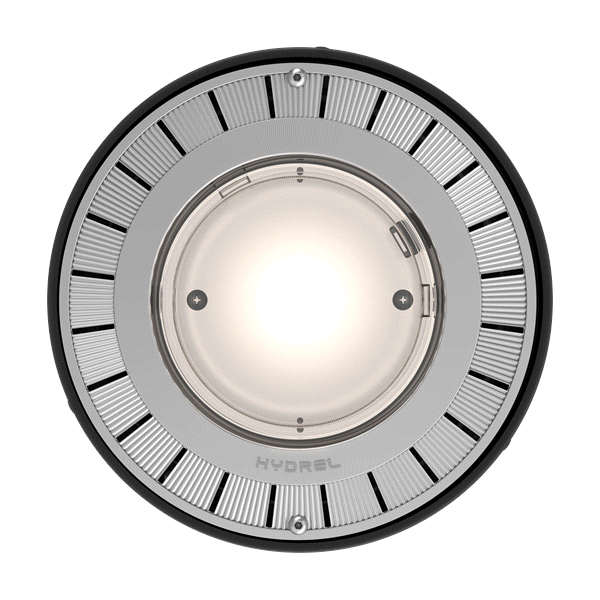

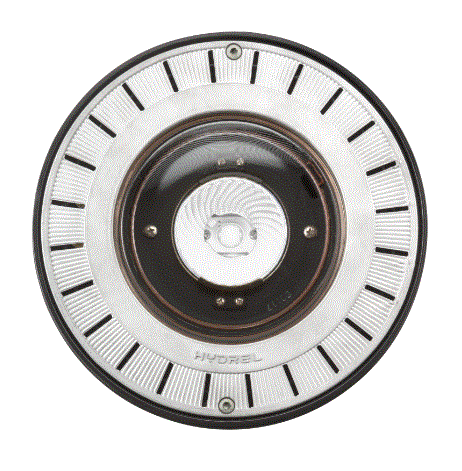

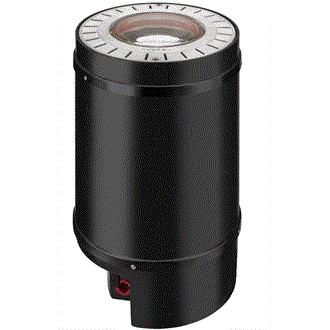

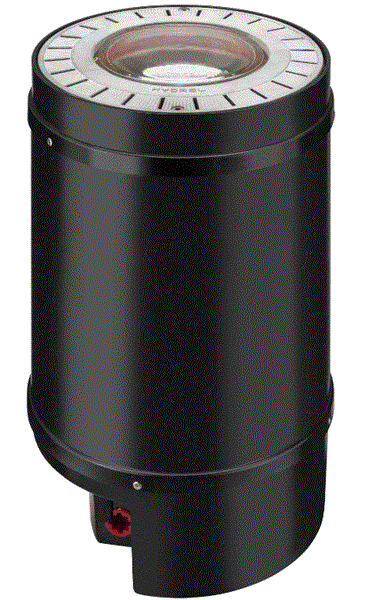

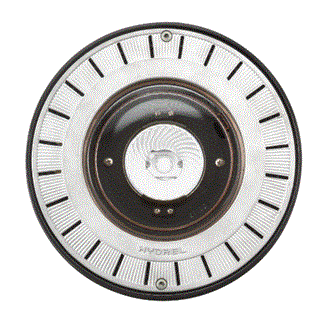

The Hydrel M9400C is a powerful in-grade solution that delivers unmatched high-quality illumination. Like the M9700C LED, the Hydrel M9400C LED delivers consistent, uniform color from luminaire to luminaire, with minimal color shift and depreciation over the life of the product. M9400C provides improved optical and mechanical aiming with an optional double lens, and its modular flow-thru design ensures peak performance and extends the life of the product.
Read More
Read Less
Size 9 IN
Light Source LED - Static
Lumens 240 LM, 250 LM, 350 LM, 1000 LM, 1300 LM, 1900 LM, 2400 LM, 2500 LM, 3300 LM, 3900 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength
CRI 80
Product Type In-Grade
Compliance Listing BAA, DLC Standard
Environmental Listing IP68, Wet Location
Regulatory Listing CSA, CSAus, NOM
Dimming Protocol 0-10V, Forward Phase
Light Distribution Flood, Medium Flood, Narrow Flood, Narrow Spot, Very Narrow Spot, Wall Wash, Wide Flood
Fixture Wattage 10, 14, 20, 28, 31
Voltage Rating 120-277
Mounting Type In-grade
Color Beige, Black, Bronze, Brown, Gray, Green, Silver, White
Series M9410C, M9420C, M9430C, M9440C

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET M9400C_LED.pdf In-Grade Luminaire 9/1/2022 View
    SPEC SHEET M9400C_LED_RETROFIT.pdf Retrofit LED components for use in 9000 series housing and M9400 HID series housing 11/30/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9400C_80CRI_30K.pdf Spectral Data Report M9400C 80CRI 30K 11/9/2022 View
    Spectral Data Sheet Spectral Data Report_Hydrel_M9400C_80CRI_40K.pdf Spectral Data Report M9400C 80CRI 40K 11/9/2022 View
  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ABL General Warnings, Form No. 503.204 ABL General Warnings, Form No. 503.204 View
    Installation Instructions ABL LED General Warnings, Form No. 503.203 ABL LED General Warnings, Form No. 503.203 View
    Installation Instructions Installation Instructions - M9400C.pdf M9400C In-Grade 4/8/2021 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions Ingrade_Internal_Accessories.pdf M9000 In-Grade Internal Accessories View
    Replacement Part Spec Sheet PARTS MACSC.pdf Replacement parts for M9400C MACSC LED module 6/26/2019 View
    Replacement Part Spec Sheet PARTS MHSLC94.pdf Replacement Parts for M9400C LED driver module 6/26/2019 View
    Replacement Part Spec Sheet PARTS-MFSC94DOUBLE LENS.pdf Replacement parts for M9400C double lens finishing section 7/14/2022 View
    Replacement Part Spec Sheet PARTS-MFSC94SINGLE LENS.pdf Replacement parts for M9400C single lens finishing section 6/26/2019 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide flag_pole_lighting pdf.pdf Application Guide for Flag Pole Lighting 7/8/2021 View
    Brochures M9000C Brochure Hydrel Product brochure for M9000C 8/26/2019 View
    FAQ M9400C FAQ M9400C Frequently Asked Questions 9/20/2019 View
    Sell Sheet Sell Sheet M9400C Sell Sheet 7/24/2019 View
