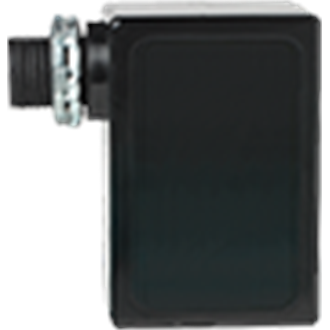

PP16X

External Fault Protection Power Pack

By SensorSwitch

  • Overview
  • Specifications
The PP16X EFP Series power pack transforms Class I line voltage (347 VAC) to Class 2 15 VDC for powering up to 19 SensorSwitch low-voltage sensors. The PP16X EFP is capable of switching lighting loads on and off using its internal latching relay, designed with robust protection from the harsh switching requirements of LED drivers and fluorescent electronic ballasts. Class 2 wire leads connect to 18 to 22 AWG low voltage cable running to the sensors, making installation easy and clean.

The PP16X EFP Power Pack also has an elongated chase nipple that allows it to be mounted either directly through a ½ inch knockout into a junction box or inside an adjacent box for meeting specific local code requirements in ceiling plenums.

Features:
  • Powers up to 19 Low Voltage Sensors
  • Self-Contained Relay(s) Switch Line Voltage Loads
  • Plenum Rated
  • Includes fuse integrated to relay wirelead for protection from load faults
  • Meets NEMA410 ratings for LED/electronic ballast inrush
Read More
Read Less
Control Device Type Lighting Relay
Mounting Type Unit to J Box
Product Type Power Pack
Color Black
Voltage Rating 347
Environmental Listing High Humidity
Series PP16X
