MR1-LED

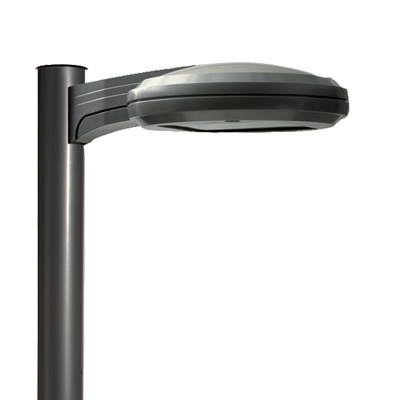

Omero™ Area and Roadway Lighting LED Outdoor Size 1

By Lithonia Lighting

    Buy America(n)
  • Overview
  • Specifications

Ideal for parking areas, street lighting, walkways and car lots.


Construction

Rugged, die-cast, single piece aluminum housing with nominal wall thickness of .012”. Die-cast doorframe has impact-resistant, tempered, glass lens (3/16” thick). Doorframe is fully gasketed with one-piece tubular silicone.

Finish: Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 3 mm thickness for a finish that can withstand extreme climate changes without cracking or peeling. Standard Super Durable colors include dark bronze, black, natural aluminum and white. Available in textured and non-textured finishes.

Optics

Precision acrylic refractive optics for optimum light distribution through the flat glass lens. Available with Type 2, Type 3, Type 4 and Type 5.

Electrical

High-efficiency nominal 4000K, 65 CRI LEDs mounted to a metal-core circuit board and aluminum heat sink, ensuring optimal thermal management and long life. Designed to provide more than 60,000 hours of performance (L85) at 250C (770F) ambient temperatures. Standard and dimming drivers are available in 120-277V and 347-480V; 50/60 Hz. Drivers have power factor >90% and THD <20%. Expected driver life is over 60,000 hours, matching the light engine life. Integral surge protection tested in accordance with IEEE/ANSI C62.41.2 to Category C Low.

Installation

Integral arm for pole or wall mounting.

Read More
Read Less
Shape Round
Light Source LED - Static
Lumens 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing BAA
Regulatory Listing UL
Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
Color Black, Bronze, Silver, White
Mounting Type Pole Mount
Series MR1

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Architectural LED Area and Roadway Lighting Architectural LED Area and Roadway Lighting 3/17/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Accessories OA-AL.pdf Options and accessories-Area View
    Installation Instructions INST SHT SPA19_RPA19 Installation Instructions to adapt DM19 drill pattern #5 to DM19AS drill pattern #8 View
    Installation Instructions Instruction Sheet MR LED Installation Instructions for Omero LED View
    Installation Instructions WBA 2018.pdf Installation Instructions for wall bracket (WBA) 3/11/2020 View
    Templates TD-drill--8 Aeris pole drill template #8 11/20/2019 View
    Templates TD-drill--9 Aeris wall drill template #9 View
