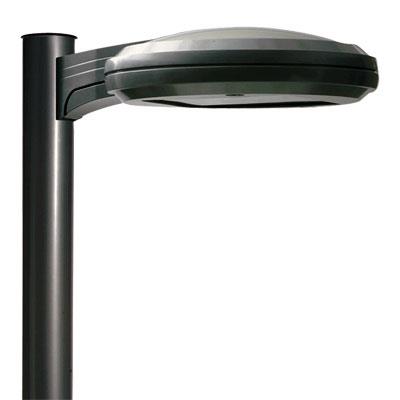

MR2-LED

Omero™ Area and Roadway Lighting LED Outdoor Size 2

By Lithonia Lighting

    Buy America(n)
  • Overview
  • Specifications

Highly efficient and long lasting, the MR2-LED is ideal for streets, walkways, parking lots and surrounding areas.


Construction

Sturdy low copper aluminum, single piece die cast housing. Unique flow through design allows for optimized thermal management through convective cooling. A perforated housing prevents debris buildup while allowing air flow and natural cleaning of the light engine heat sink. Modular design allows for ease of maintenance and future light engine upgrades. The LED driver and electronics are thermally isolated from the heat generating light ensuring long life. Housing is completely sealed against moisture and environmental contaminants. Low profile design minimizes wind loading.

Finish: Exterior parts are protected by a zinc infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multistage process ensures a minimum 3 mm thickness for a finish that can withstand extreme climate changes without cracking or peeling. Standard Super Durable colors include dark bronze, black, natural aluminum and white. Available in textured and non-textured finishes.

Optics

Individual precision molded acrylic lenses provide optimal luminaire spacing and improved uniformity. Lenses are indexed to the circuit board to ensure consistent optical alignment on each module and mechanically set in a proprietary material, delivering repeatable photometric performance. Choice of three optimized distributions: Type III, Type IV, and Type V. The optical system controls light above 90 degrees, eliminating wasteful up light.

Electrical

High efficiency 5100K , 70 CRI LEDs mounted to a metal core circuit board and aluminum heat sink, ensuring optimal thermal management and long life (L70 50,000 hrs, 40°C ambient). Standard and dimming drivers are available 120 - 277V and 347 - 480V; 50/60 Hz. Drivers have power factor >90% and THD <20%. Thermal isolation results in expected driver life of over 50,000 hours, matching that of the light engine. Integral surge protection in accordance with IEEE/ANSI C62.41.2 Category C Low is standard.

Installation

Integral arm provides easy installation to a pole and ensured alignment and leveling. Rugged, secure connection built to withstand up to 1.5 G vibration load per ANSI C136.31. MR2 pole mounted luminaire utilizes the AERIS™ series pole drilling pattern. Optional wall mounting.

Decorative Poles - Architectural distinction from top to bottom. Optional decorative bases complete the contemporary daytime assembly.

Read More
Read Less
Shape Round
Light Source LED - Static
Lumens 15,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM
CCT / LED Color 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing BAA
Regulatory Listing CSA
Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
Color Black, Bronze, Silver, White
Mounting Type Pole Mount
Series MR2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Architectural die-cast area luminaire, LED Architectural die-cast area luminaire, LED 3/17/2021 View
    SPEC SHEET Architectural die-cast, size 2 Architectural die-cast, size 2 12/10/2019 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Accessories OA-AL.pdf Options and accessories-Area View
    Installation Instructions INST SHT PUMBA.pdf Instruction Sheet Pumba, Rev B View
    Installation Instructions Instruction Sheet MR LED Installation Instructions for Omero LED View
    Installation Instructions WBA 2018.pdf Installation Instructions for wall bracket (WBA) 3/11/2020 View
    Templates TD-drill--8 Aeris pole drill template #8 11/20/2019 View
    Templates TD-drill--9 Aeris wall drill template #9 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Outdoor Buy American Brochure Buy American Outdoor Portfolio 2/7/2022 View
    Sell Sheet Universal Mounting Bracket Sell Sheet PUMBA sell sheet View
