ECL-600 and ECx-400 Series

By Distech Controls

  • Overview
  • Specifications

For AHU, chiller, boiler, cooling tower, and central plant applications

  • 16 universal inputs including 4 for fast pulse counting and metering applications
  • Expandable I/O capabilities with up to 2 ECx modules for a total of 40 inputs and 36 outputs
  • Optional HOA switch with potentiometer to locally override and monitor overridden outputs
  • 15 VDC power supply to power 4-20mA transducers
  • 2 calendar, 8 schedule, and 30 loop (PID)
  • Internal alarm functionality

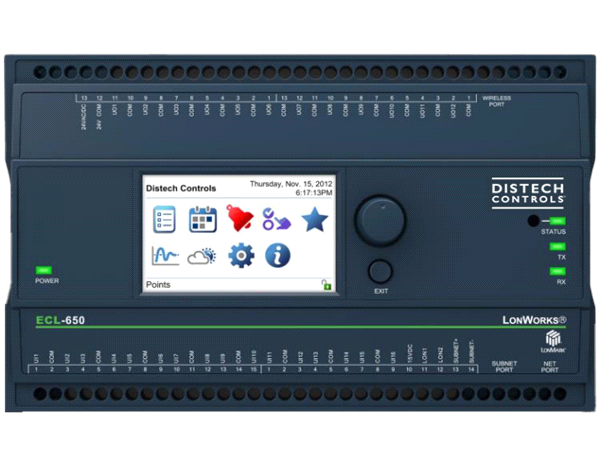

  • ECL-650 includes live graphics color display (integrated LCD operator interface)
  • Supports up to 12 Allure series communicating sensors
  • Open-to-Wireless™: support of up to 28 wireless battery-less inputs
  • LonMark® certified
  • ECL 600 and ECL 650 (AHU) LonMark® certified controllers designed to meet oil and gas industry standards
Read More
Read Less
Brand Distech Controls
Product Family System and Equipment Control Solution
Subcategory LonWorks
Sales Regions US, OC, ME, EU, CSA, CA, AS
