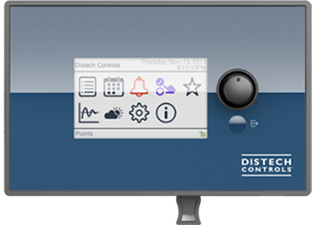

ECx-Display

By Distech Controls

  • Overview
  • Specifications

Streamlined mechanical room display for your ECB series BACnet® controllers, ECL series LonWorks® controllers, and ECY series ECLYPSE Connected BACnet/IP and Wi-Fi controllers. Managers and technicians will benefit from this powerful, user-friendly color backlit LCD display, providing convenient access to important system data in real time.

  • Preloaded with a visual interface:
    • View, edit, and override values and configure schedule and calendar
    • View Tune PID loops with system response graphing
    • View and acknowledge alarms
    • Set up a list of favorites to rapidly access commonly-used values
    • Perform diagnostics and take corrective actions such as overriding a sensor, pump, fan, or changing a setpoint
    • Test and commission HVAC systems singlehandedly

  • Simplified installation:
    • Can be DIN rail or panel mounted, or used as a handheld device for servicing
    • Connects directly to controllers using a dedicated subnet port
    • Option of connecting Allure EC-Smart-Vue and ECx-Display to the same controller with the ECx-Subnet-Adapter

  • Easy-to-use, rugged design:
    • Convenient jog-dial offers quick and easy navigation
    • With an IP-54 Rating, the ECx-Display is dust and splash resistant
    • Black enclosure offered with your choice of a blue or black LEXAN™ face
Read More
Read Less
Brand Distech Controls
Product Type Displays
Subcategory Ecx-Display
Sales Regions US, OC, ME, EU, CSA, CA, AS

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ECx-Display Spec Sheet Streamlined mechanical room display 6/13/2019 View
