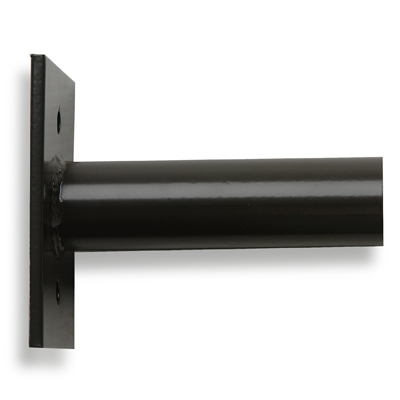

SMACST

Side Tenon Mounting Arm Mast Arm

By Lithonia Lighting

  • Overview
  • Specifications

Durable brackets are engineered to provide versatile mounting options. They ~13;~10;allow optimal positioning of the light fixture to maximize the lighting ~13;~10;effectiveness. This pole mounted side tenon bracket is an effective way to light ~13;~10;additional areas around a pole. These tenons are made from A500 Grade B Steel ~13;~10;tubing and can be provided primed, painted, or galvanized.

~13;~10;

Check out POLESCENTRAL for additional resources and ~13;~10;solutions.


To be mounted to square steel, aluminum, fiberglass or concrete poles ~13;~10;providing a T14 or T20 tenon mounting option on the side of the pole. The ~13;~10;side tenon can extend either 6" or 8" from the pole.

Read More
Read Less
Shape Round
Light Source Not Applicable
Product Type Bracket
Regulatory Listing UL
Color Black, Gray, Silver, White, Bronze
Arm Mounting Type Side, Wall
Mounting Type Pole Mount
Series SMACST
