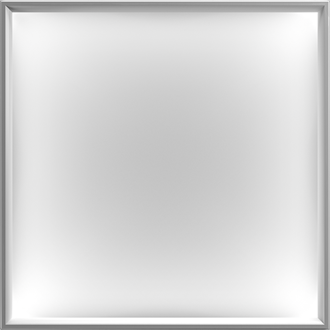

Chisel™ Recessed Luminaire 2x2

CHSL Architectural Troffer with Static White & Tunable White

By Mark Architectural Lighting

    Tunable White
  • Overview
  • Specifications

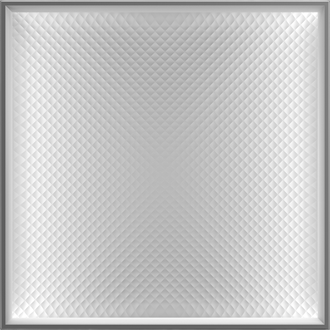

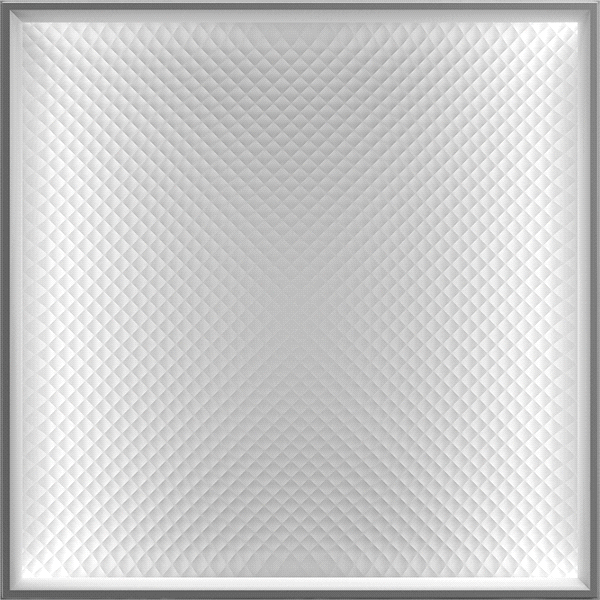

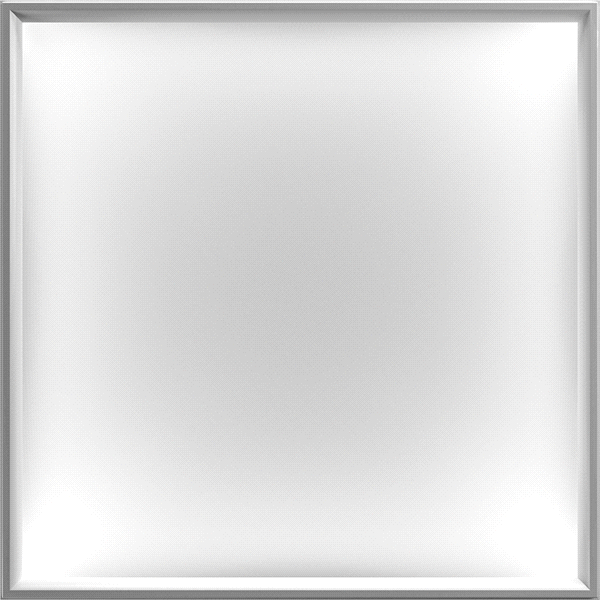

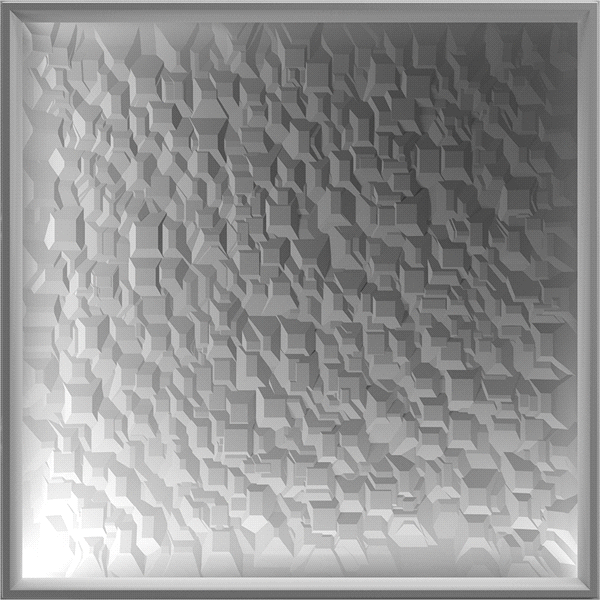

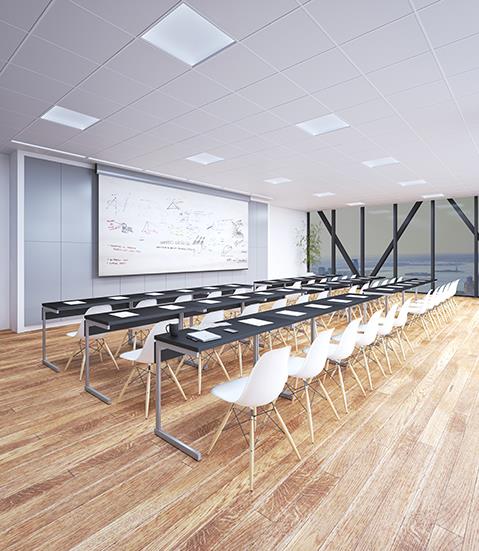

The Chisel recessed luminaire adds dimensionality across grid ceilings. Chisel 2x2 features an optional clear, acrylic lens for easy wipe-down maintenance, an extruded aluminum housing, various directional gradients and textured patterns, including pyramid, weave, and minimalist. Color renderings are at 80 and 90 CRI. An eldoLED driver provides smooth, flicker-free dimming. Color temperatures range from 2700K to 6500K. Available in Static White and Tunable White, Chisel is complete with nLight wired and wireless control options. Chisel is now Declare listed
Read More
Read Less
Size 2x2
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 500 LM, 1000 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing Chicago Plenum, Declare
Environmental Listing Damp Location
Regulatory Listing UL
Dimming Protocol 0-10V, DALI, DMX
Mounting Type Recessed
Fixture Wattage 10.4, 10.6, 11.3, 11.6, 11.9, 13, 13.3, 14, 14.3, 14.5, 14.6, 14.7, 15.4, 16.2, 16.4, 17.2, 17.7, 18.7, 19.5, 19.7, 20.6, 38.3, 38.4, 39.5, 39.7, 39.8, 41.7, 42, 42.5, 44.2, 8.3, 8.8, 9, 9.1, 21, 21.6, 21.9, 22, 22.6, 22.8, 23, 23.4, 23.6, 24, 24.1, 24.3, 24.4, 24.7, 26.4, 26.6, 26.7, 26.8, 27.1, 27.2, 27.4, 27.5, 27.7, 28.2, 29, 30, 30.3, 30.5, 30.9, 31.2, 32, 32.2, 32.6, 32.7, 33.2, 33.6, 34.8, 35.4, 35.8, 36.2, 36.8, 37.9, 38.1
Voltage Rating 120, 277, 347
Series CHSL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Confidential Documents

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information

    •  Contact Us (Lighting)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


Videos

Product Family

Mark Architectural Lighting

Chisel Recessed Troffers | Mark Ar...

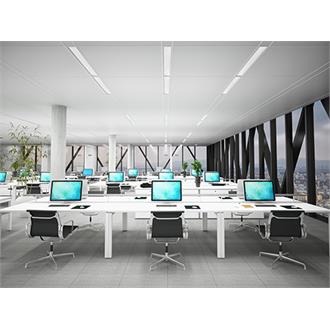

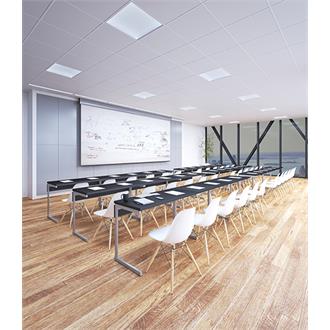

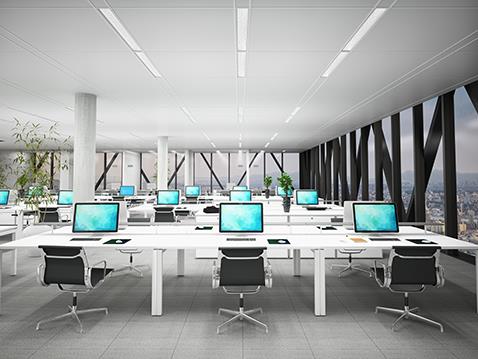

Chisel recessed troffers create dimensional lighting in commercial office, hospitality and healthcare spaces - cost-effective, e...
