nHW 13

Hallway, Low Volt, PIR

By nLight

    DLC Standard
  • Overview
  • Specifications

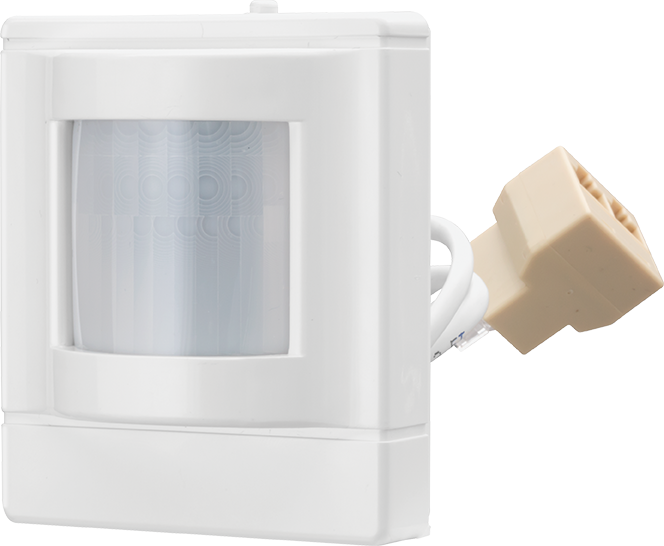

The nLight nHW 13 Series occupancy sensor provides long narrow PIR detection for control of hallway lighting. Typically mounted at either end, these sensors detect occupants entering a hallway up to 130 ft away. Detection at this distance is for entrances at right angles to the beam pattern. Additionally, the nHW 13 may be used in combination with other nLight sensors to customize coverage for very long or irregularly shaped corridors. For example, an nCM 10 ceiling sensor may be in a entrance vestibule at one end of a hallway while the nHW 13 is at the other. The nHW 13 is best mounted at a 7 ft height.
PIR Occupancy Detection
Coverage up to 130 Linear Feet
Communicates w/ nLight Network
Remotely Configurable/Upgradeable
Push-Button Programmable
Programmable w/o removing cover
Adjustable Time Delay
100 Hr. Lamp Burn-in Timer Mode
Green LED Indicator
Read More
Read Less
A+ Capable Yes
Control Device Type Occupancy Sensor
Mounting Type Surface
Networkable Control Networkable Control
Product Type Sensor
Voltage Low Voltage
Compliance Listing DLC Standard, ROHS
Series NHW
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses
