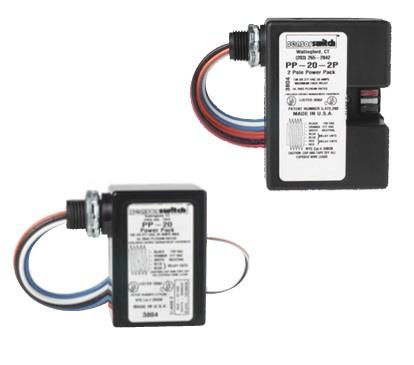

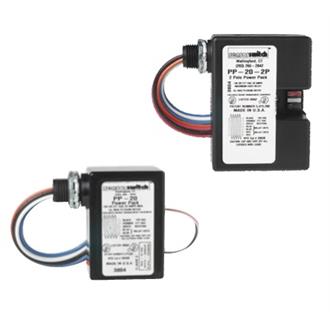

SP20

Secondary Relay Pack

By SensorSwitch

  • Overview
  • Specifications
Power Packs are the heart of the Low Voltage Sensor System. The PP20 transforms 120, 240 or 277 Volts to Class II 15 VDC to power the remote sensors. Utilizing our Patented Relay Circuit Protection the PP20 also switches the lighting load On and Off. This method has been tested to over 400,000 cycles at rated load! Although Plenum Rated, the elongated mounting nipple allows for the PP20 to be mounted either directly through a 1/2 inch knockout in a junction box, or to be located inside an adjacent box for specific local code requirements. Up to 14 sensors may be connected to one PP20. Multi-circuit control can be handled by multiple PP20's, or via 2-Pole Power Packs (PP20 2P) and Slave Packs (SP20). PP20's can be wired continuously hot (line side), or on the switch leg (load side) without nuisance delays upon turn on.
Self-Contained Relay
Patented Relay Contact Protection (Tested to over 400K cycles)
Extended Chase Nipple
Read More
Read Less
Control Device Type Lighting Relay
Mounting Type Unit to J Box
Product Type Power Pack
Color Black
Finish Gloss
Voltage Rating 120, 240, 277
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series SP20
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PP20 (SP20) PP20 Relay Pack Spec Sheet 6/8/2023 View
