PP20

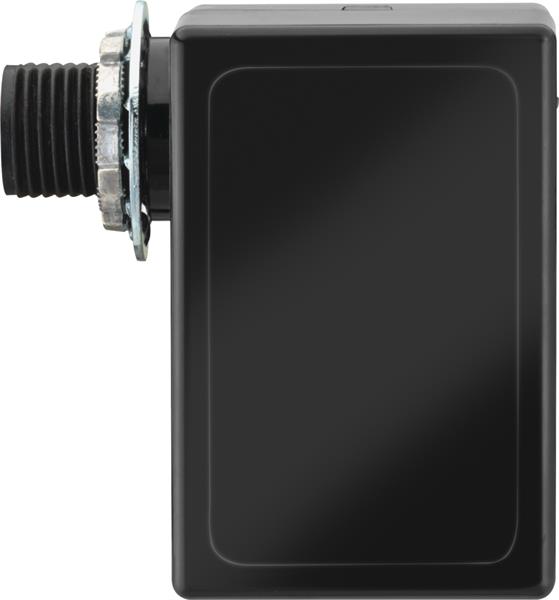

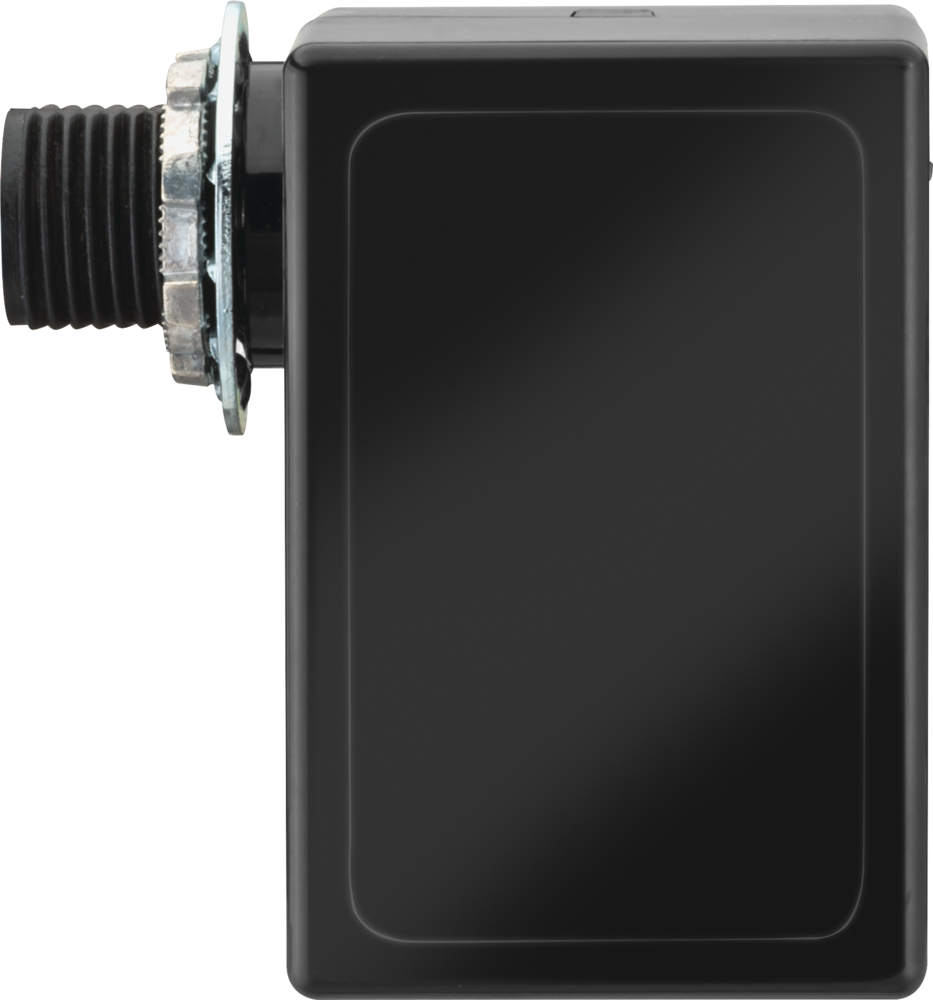

Power Pack with 20 Amp Relay

By SensorSwitch

    Buy America(n)
  • Overview
  • Specifications
Power Packs are the heart of the low voltage sensor system. The PP20 transforms 120, 240 or 277 volts to Class II 15 VDC to power the remote sensors. Utilizing our patented relay circuit protection, the PP20 also switches the lighting load on and off. This method has been tested to over 400,000 cycles at rated load!

Although Plenum Rated, the elongated mounting nipple allows for the PP20 to be mounted either directly through a 1/2 inch knockout in a junction box or to be located inside an adjacent box for specific local code requirements. Up to 14 sensors may be connected to one PP20. Multi-circuit control can be handled by multiple PP20s or via 2-pole power packs (PP20 2P) and slave packs (SP20). PP20s can be wired continuously hot (line side) or on the switch leg (load side) without nuisance delays upon turn on.
Features:
  • Dual voltage transformer
  • Self-contained relay
  • Patented relay contact protection (tested to over 400K cycles)
  • Powers up to 14 sensors
Read More
Read Less
Control Device Type Lighting Relay
Mounting Type Unit to J Box
Product Type Power Pack
Color Black
Finish Gloss
Voltage Rating 120, 277
Compliance Listing BAA
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series PP20
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PP20 (SP20) PP20 Relay Pack Spec Sheet 3/8/2022 View
    SPEC SHEET PP20_BAA.pdf PP20 Relay Pack BAA Spec Sheet 1/10/2022 View

    Create Submittal Spec Sheet
