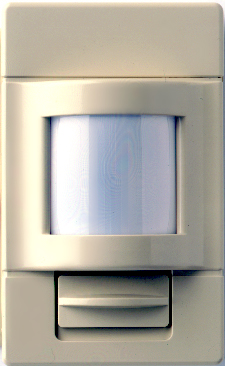

Product Image

HMR 50

High Bay Aisleway, Surface, Line Volt, PIR

By SensorSwitch

  • Overview
  • Specifications
The HMR 50 Series sensor provides Bi-Directional High Bay Aisle Way sensing extending 70 to 110 ft when mounted at heights of 30 to 45 ft. HID Bi-Level or T5 / T8 Fluorescent systems can be switched directly using this sensor without the use of power packs. The HMR 50 SH controls Bi-Level HID with a Start-to-High timer, whereas the HMR 50 controls individual fluorescent fixtures. The sensor's view pattern provides coverage of the lighting areas of three typically spaced High Bay fixtures. Therefore, when mounted at a fixture, the coverage area extends out to the area that is lighted by the neighboring fixtures. This effect is useful with some Program-Start ballasts that have a delay such that when traveling in a fork-lift truck, lighting needs to be initiated On ahead of the truck. Masking the sensor to cutoff at the end of an aisle is easily done with the enclosed kit. For freezer or high humidity applications, use the HMR 50 LT or HMR 50 SH LT which allows for cold temperatures or condensing humidity. For total aisle way sensing consider the HMR 10 at each end, and HMR 50s in the center section.
PIR Occupancy Detection
Up to 45 ft Mounting
Bi-directional Aisle Way Sensing Pattern (70-110 feet)
Self-Contained Relay - No Power Pack needed
No Minimum Load Requirements
Time Delay: 75 sec to 20 min
Green LED Indicator
Read More
Read Less
Product Type Sensor
Series HMR
Application Type Education, Healthcare, Hospitality, Manufacturing, Offices & Banks, Transportation, Warehouses

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HMR 50 HMR 50 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Wiring Diagram WIRING20 WIRING20 View
