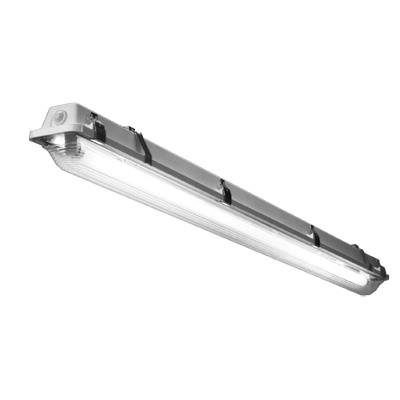

Product Image
4183_large

FEN

Narrow Industrial Enclosure Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

Ideal for use in cold, wet or damp environments where an attractive yet shallow enclosure is required - such as parking garages, industrial facilities, retail malls and multi-purpose centers. Well-suited for lower mounting heights where wide fixture spacings are required. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Shallow 4" depth overall and attractively contoured diffuser obscure lamp while maintaining high transmission of light. One-piece fiberglass housing with integral perimeter channel utilizing continuous poured-in-place closed cell gasket. Tool-less ballast and wiring access. Stainless steel latches are standard.

Power connection is easily accommodated through pre-drilled holes at each end, with wet location fittings provided for maximum flexibility. Easily mounted to ceilings and structure, or suspended with chain, cable or rod, using mounting brackets (included).

Optics

Precision-formed, high-performance, 95% total reflectance optics utilizing premium specular aluminum warranted for 25 years. White ballast cover has 93+% total reflectance and is finished with an in-house polyester powder coating system.

Factory-installed lamps are available in various CRI ratings, temperature colors and rated life. Lamps are secured with rotary locking lamp sockets for ease of relamping and to reduce lamps disconnecting due to vibration or incidental contact.

Electrical

All standard ballasts are electronic, energy saving, thermally protected, Class-P, HPF, non-PCB, Sound Rated A, UL/CSA certified where applicable and comply with 4 Federal Ballast Law (Public Law 100-357, 1988). Default ballast configuration is for two-lamp ballasts except for one-lamp fixtures.

UL listed wire, rated for required temperatures, used throughout.

Installation

May be surface mounted or suspended by chain or cable. Stainless steel mounting brackets included (two per luminaire), pre-punched for easy field-attachment of bolts, screws and other mounting hardware.

Read More
Read Less
Size 4FT
Shape Rectangular
Light Source Fluorescent
Lumens Not Applicable
CCT / LED Color 3000 K, 3500 K, 4100 K, 5000 K
CRI 80, 85
Product Type Linear
Environmental Listing Damp Location
Regulatory Listing CSA
Fixture Wattage 28, 32, 54
Voltage Rating 120-277, 277, 347, 347-480
Color Beige
Mounting Type Pendant
Series FEN4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Low-profile enclosed and gasketed specular; T5HO or T8; 4'x4' Low-profile enclosed and gasketed specular; T5HO or T8; 4'x4' 7/9/2020 View
    SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information View
    Installation Instructions FEM-FENdpmb.pdf FEM-FEN DPMB installation instruction View
