TH A15
- Overview
- Specifications

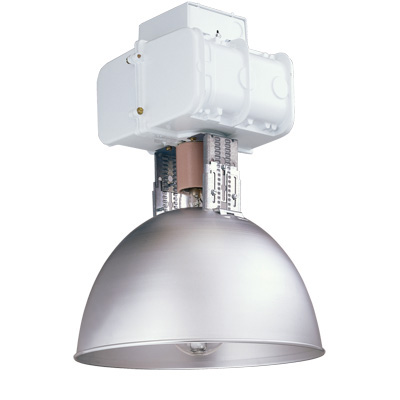

Use in high mounting heights that require high efficiencies, horizontal illumination and high vertical illumination. Ideal for manufacturing and warehouse aisles where color is critical.
Construction
Housing: Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components horizontally opposed and heat-sinked to ballast housing for cooler operation. Integral splice box mounting flange ensures structural integrity.
Optics
Self-cleaning ventilated design carries contaminants through the top of the reflector.
High-efficiency, anodized, spun aluminum reflector features exclusive contoured design.
Electrical
Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-450W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S.
Socket: Vertically oriented mogul base protected exclusionary "PINK" socket with copper alloy, nickel-plated screw shell and center contact.
Installation
Pendant splice box: Removable cast-aluminum box slides on integral die-cast aluminum housing mounting flange and mounts to 3/4" pendant conduit prior to ballast housing installation. Matching wire access cover accepts RELOC® modular wiring. Complete assembly meets or exceeds UL 50- pound pull test.
Optic mounting adjustable reflector mounting brackets are progressively die-formed of 18-gauge galvanized steel.
Shape | Round |
Light Source | HID - High Pressure Sodium, HID - Metal Halide, Not Applicable |
Lumens | Not Applicable |
Product Type | Reflector |
Environmental Listing | Damp Location |
Regulatory Listing | CSA, NOM, UL |
Fixture Wattage | 175, 250, 320, 350, 400 |
Voltage Rating | 120, 208, 240, 277, 347, 480, Not Applicable |
Color | Silver |
Mounting Type | Pendant, Suspended |
Series | TH, A15 |
