TE E17
- Overview
- Specifications

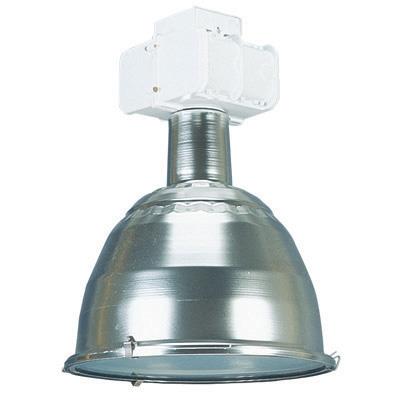

For high-mounting heights that require high efficiencies, horizontal illumination, premium glare control and total enclosure. Ideal for heavy manufacturing areas, gymnasiums and wet location applications (Must be ordered with WL option).
Construction
Housing: Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components are horizontally opposed and heat-sinked to ballast housing for cool operation.
Optics
One-piece, totally enclosed-and-gasketed spun aluminum, anodized reflector combines high efficiency with extended shielding angle for high-performance optical control. Exclusive fluting design minimizes arc tube voltage rise. Gasketed, clear, tempered-glass lens inhibits the entrance of ambient contaminants. Hinge and lens retainer latches for tool-less access.
Electrical
Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-400W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S. 1000W is constant wattage autotransformer.
Socket: Vertically oriented mogul base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V, 5KV pulse rated for U.S. lamps.
Installation
Pendant splice box-removable cast-aluminum box slides on integral die-cast aluminum housing mounting flange and mounts to 3/4" pendant conduit prior to ballast housing installation. Matching wire access cover accepts RELOC® modular wiring. Complete assembly meets or exceeds UL 50-pound pull test.
Optical mounting: four 8-32 corrosion-resistant, tri-lobular, thread-rolling screws are arranged concentrically around the lamp socket. Optic is sealed at the point of attachments with a one-piece gasket of FDA -approved material. A 16-gauge galvanized steel support ring with matching keyhole slots is pre-installed for vibration-resistant mounting.
| Light Source | HID - Metal Halide, Not Applicable |
| Lumens | Not Applicable |
| Product Type | High Bay |
| Environmental Listing | Damp Location, Wet Location |
| Regulatory Listing | CSA, NOM, UL |
| Fixture Wattage | 320, 350, 400 |
| Voltage Rating | 120, 208, 240, 277, 347, 480 |
| Color | Silver |
| Mounting Type | Not Applicable |
| Series | TE |
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET TE-E17 17" Premium Enclosed Shrouded, 70-400W HPS, 175-400W MH 9/30/2021 View -
