rSDGR

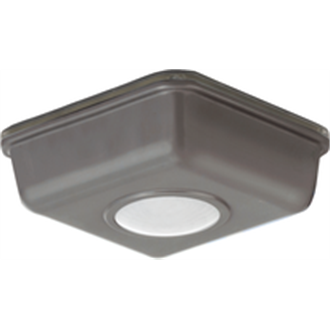

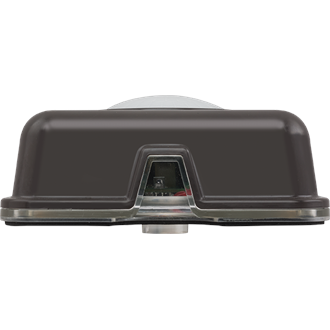

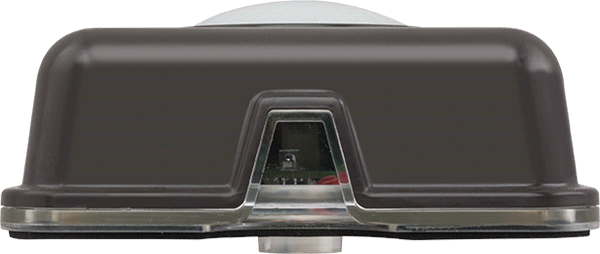

nLight® AIR Outdoor, Fixture-Embedded Smart Sensor

By nLight

    DLC Standard / Premium
  • Overview
  • Specifications

The nLight AIR wireless controls rSDGR sensor provides embedded wireless lighting control for 0-10V dimmable Lithonia Lighting® D-Series outdoor area luminaires, specifically the DSX0, DSX1, and DSX2. The rSDGR can both switch and dim its connected lighting providing occupancy and daylighting control. For motion detection, the sensor utilizes 100% Digital Passive Infrared (PIR) technology that is tuned for rolling motion and large motion. The rSDGR’s integrated photocell enables additional energy savings during daytime periods when there is sufficient daylight.

As part of the nLight AIR wireless controls family, the rSDGR uses a 900MHz communication frequency that easily penetrates obstructions and its five-tier security architecture helps building owners and occupants can rest easy.

To learn more about nLight AIR wireless controls please contact your local lighting representative or visit the nLight AIR systems page.


Features and Benefits:

• Factory installation into Lithonia Lighting D-Series Outdoor Luminaire to enable simple retrofits - no communication wires to pull between devices

• 900MHz frequency communicates across large geographical areas and penetrates typical obstructions found in commercial buildings, like concrete

• 100% digital PIR detection provides occupancy sensor and photocell in single device, integrated from the factory to eliminate onsite wiring

• Easy integration with the nLight ECLYPSE® via nLight adapter for more advanced control strategies like time-based scheduling, demand response and to connect with BACnet™, cloud-based applications, and remote control capabilities

• Five tier security architecture delivers peace of mind for building owners and occupants

• IP65 rating for outdoor use

• CLAIRITY™+ mobile application configuration makes configuration easy - no specialized tools or software to learn

Read More
Read Less
Control Device Type Daylight Sensor, Occupancy Sensor
Mounting Type Fixture Embedded
Networkable Control Networkable Control
Control Protocol 0-10V
Product Type Sensor
Color Black, Bronze, Gray, White
Finish Matte
Voltage 120-277, 347, 480
Compliance Listing DLC Standard, ROHS
Regulatory Listing UL
Series RSDGR

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET rSDGR.pdf nLight AIR rSDGR Outdoor Fixture-Embedded Sensor Spec Sheet 8/31/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IS-RSDGR-001 nLight AIR rSDGR Installation Instructions 11/16/2020 View
    User Manual CLAIRITY PRO Quick Start Guide.pdf (Archived) CLAIRITY PRO Quick Start Guide 1/21/2020 View
