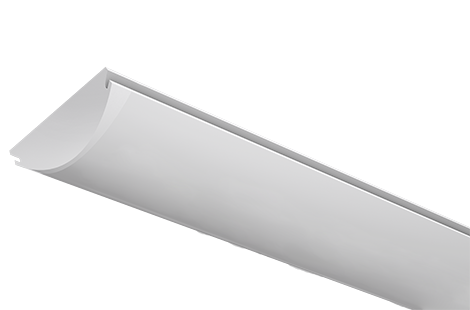

Lightedge LED Curved Suspended Indirect

EGCM1L Linear Luminaire

By Peerless

    Buy America(n)
  • Overview
  • Specifications
The Lightedge LED curved suspended indirect luminaire is a beautifully sophisticated and gracefully blends with the architectural elements of any room. With its signature feature, the double-edge body, this timeless luminaire offers elegant indirect lighting with smooth and flicker-free deep dimming performance to dark provided by the eldoLED® driver. The Lightedge offers powerful options with integrated nLight® or nLight® AIR wireless controls.
Read More
Read Less
Shape Curved
Light Source LED - Static
Lumens 700 LM, 750 LM, 800 LM, 850 LM, 900 LM, 950 LM, 1000 LM, 1100 LM, 1200 LM, 1300 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Linear
Compliance Listing BAA, Chicago Plenum
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Mounting Type Suspended
Voltage Rating 120, 277
Series EGCM1L

Read More Read Less
