SBOR Series

Outdoor Pole High Mount

By SensorSwitch

  • Overview
  • Specifications

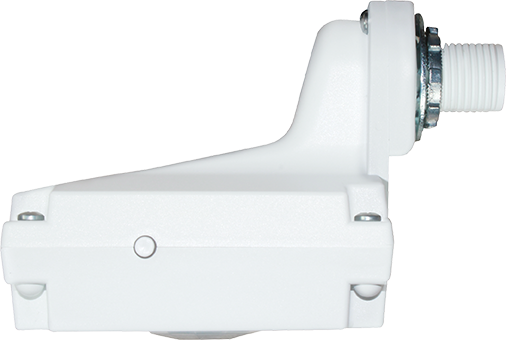

The SBOR Series outdoor rated sensor incorporates passive infrared (PIR) technology into a line powered motion sensor. Designed to mount directly through a 1/2 inch knockout (7/8 inch diameter hole) in a light fixture or pole, the SBOR utilizes 100% Digital Passive Infrared (PIR) technology that is tuned for walking size motion while preventing false tripping from the environment.

The unit's optional integrated photocell enables additional energy savings during daytime periods when there is sufficient daylight.
Features:
  • 100% digital PIR detection - excellent RF immunity
  • Self-contained relay (no power pack needed)
  • No minimum load requirements
  • Compatible with electronic and magnetic ballasts, CFLs, LEDs and incandescents
  • Interchangeable hot and load wires
  • Impossible to wire backwards
  • Push-button programmable
  • Non-volatile settings memory
  • Adjustable time delay
  • No field calibration or sensitivity adjustments required
  • Convenient test mode
  • 100-hour lamp burn-in timer mode
  • Green LED indicator
  • LampMaximizer® Control
  • Protects lamp life while maximizing energy savings
  • Minimum on timer (15-minute default)
  • Occupancy time delay (10-minute default)
  • LampMaximizer+ mode optimizes lamp life and energy savings (disabled by default)
  • Switch counter (in 1000s)
  • Total lamp on time (in khrs)
Read More
Read Less
Control Device Type Daylight Sensor, Dimming Switch
Mounting Type Fixture Attached, Pole Mount
Control Protocol 0-10V
Product Type Sensor
Color Black, Bronze, White
Finish Gloss
Voltage Rating 208, 347, 347-480, 480
Environmental Listing IP66
Series SBOR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET SBOR Family SBOR Family Line Voltage, Outdoor Pole/Fixture Mount Occupancy Sensor Spec Sheet. 4/18/2022 View
    SPEC SHEET SBOR PC SBOR PC Line Voltage, Outdoor Switching On/Off Photocell Spec Sheet. 2/15/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC014-003-Outdoor ODP Motion Sensor Programming Instructions.pdf SBO ODP Outdoor Rated Dimming, Photocell & Motion Sensors Programming Sheet. View
    Installation Instructions IS-SBOR-ODP.pdf SBOR ODP Outdoor Dimming Photocell & Motion Sensors Instruction Sheet. View
    Installation Instructions IS-SBOR-OEX.pdf SBOR OEX Outdoor/Indoor Dimming/Occupancy Sensors Instruction Sheet. View
    Technical Bulletins Sensor Switch SBOR Reliability Test Chart_0619.pdf Sensor Switch SBOR Reliability Test Chart 6/13/2019 View
