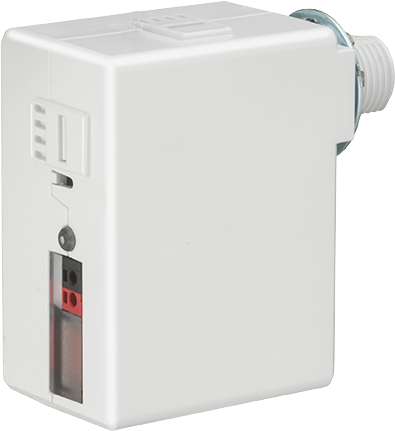

rPP20 Relay Pack

rPP20 Power Relay Pack

By nLight

    DLC StandardCA Title 24/JA8
  • Overview
  • Specifications

The nLight AIR rPP family of power packs are lighting control devices designed to offer flexible control for commercial and industrial lighting applications. The rPP20 consists of a relay, 0-10V dimming control, and a low voltage power supply output to power and wireless switches and sensors. The rPP20 is capable of switching loads up to 20A via a latching relay designed with robust inrush protection from the harsh switching requirements of fluorescent and LED loads. Select power packs provide +24VDC low voltage output to power up to 4 nLight AIR mounted occupancy sensors and photocells.

As part of the nLight AIR wireless controls family, the rPP20 uses a 900MHz communication frequency that easily penetrates obstructions and its five-tier security architecture helps building owners and occupants rest easy.

To learn more about nLight AIR wireless controls please contact your local lighting representative or visit the nLight AIR systems page.


Features:

• Communicates with nLight AIR luminaires, switches and sensors as part of lighting control groups

• CLAIRITY™+ mobile application configuration makes configuration easy - no specialized tools or software to learn

• Easy integration with the nLight ECLYPSE® via nLight adapter for more advanced control strategies like time-based scheduling, demand response and to connect with BACnet™, cloud-based applications, and remote control capabilities

• Suitable for plug load control

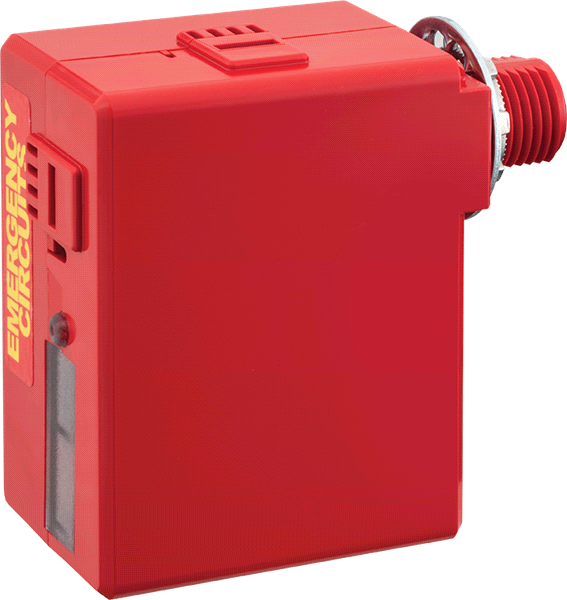

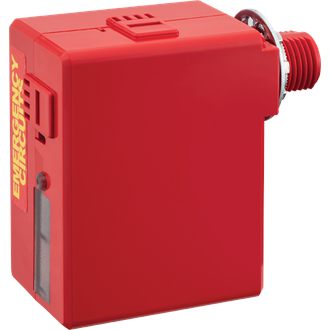

• UL924 listed option for simplified lighting control on emergency lighting circuits

• UL2043 listed for plenum applications

• Chicago Plenum option available

• UVOLT option available

• User button for self-test and CLAIRITY+ beaconing capabilities

• Dimming and non-dimming options supply 24VDC to power up to 4 rCM nLight AIR low voltage sensors or other low-voltage devices

Read More
Read Less
Control Device Type Dimming Switch
Mounting Type Unit to J Box
Networkable Control Networkable Control
Control Protocol 0-10V
Product Type Power Pack
Finish Gloss
Voltage 120-277, 347-480
Compliance Listing CA Title 24, DLC Standard, ROHS
Regulatory Listing UL
Series RPP20, RPP20Z
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail, Retrofit

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET RPP20.pdf nLight Air RPP20 Power/Relay Pack Spec Sheet 5/8/2023 View
    SPEC SHEET Clairity Pro Mobile Application.pdf (Archived) Mobile App for nLight® AIR Startups 1/3/2020 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IS-RPP20-002.pdf nLight AIR rPP20 Installation Instruction 4/24/2023 View
