LWSH Series

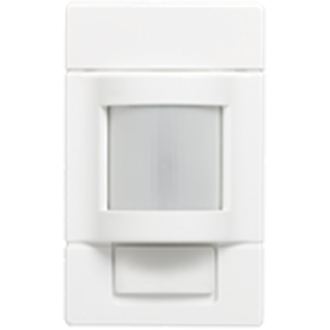

Large Area Wall Switch Sensor

By SensorSwitch

  • Overview
  • Specifications
Large Area Wall Switch sensors are ideal products for retrofitting classrooms, main storage centers or open spaces where low voltage systems are cost prohibitive. The LWSH mounts from 4 to 7 feet and is available in passive infrared (PIR), Passive Dual Technology (PDT) with PIR and Microphonics, single and 2-pole, and color options of ivory and white. This sensor surface mounts making it ideal for retrofits, and can control up to 13 amps each pole.


Features:
  • PIR occupancy detection
  • Time delay: 30 seconds to 20 minutes
  • No minimum load requirements
  • Relay protection
  • 3-way and multi-level switching compatibility
  • Green LED indicator light
Read More
Read Less
Control Device Type Occupancy Sensor
Mounting Type Surface
Product Type Sensor
Color Ivory, White
Finish Gloss
Voltage Rating 120, 277
Environmental Listing High Humidity
Series LWSH
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LWS(H) Large Area Wall Switch Sensor View
    SPEC SHEET LWS(H) PDT Series Large Area Wall Switch Dual Tech Sensor View
  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC16-001.pdf LWS(H) Large Area Wall Switch Sensor WVR Wide View Corner Mount Sensor HM(R) Hallway Sensor View
