CMB Series

Fixture Mount Sensors

By SensorSwitch

  • Overview
  • Specifications

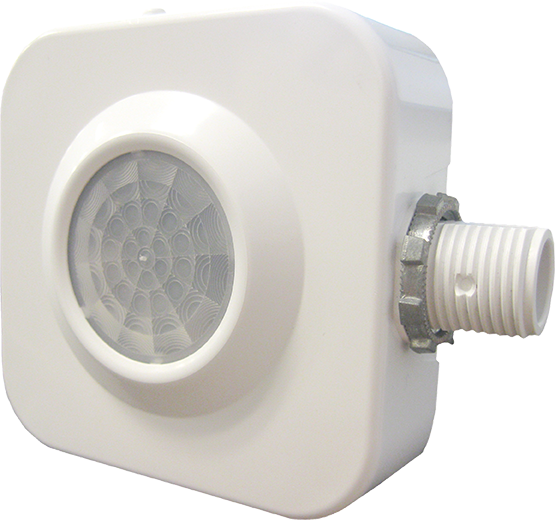

Fixture mount sensors provide passive infrared occupancy detection that overlap the areas lit by a luminaire. Fixture mount sensors are designed to mount directly to the end of a light fixture through an extended ½ inch chase nipple.

Lens options include large motion extended range, small motion standard range, bi-directional for hallways and high bay. Low voltage sensors are used in conjunction with power packs, which contain a relay, and are ideal when multiple sensors are needed. Options include passive dual technology (PDT), integrated photocell, dimming control and low temp/humidity.
Read More
Read Less
Control Device Type Daylight Sensor
Mounting Type Fixture Attached
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Voltage Rating 208, 240, 480
Environmental Listing High Humidity
Series CMB
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET CMB 10 Box Mount Large Motion Extended Range View
    SPEC SHEET CMB 50 Box Mount Large Motion Aisle Way View
    SPEC SHEET CMB 6 Box Mount Large Motion High Bay View
    SPEC SHEET CMB 9 Box Mount Small Motion Standard Range View
    SPEC SHEET CMB ADC Box Mount Photocell Never Off/Auto-Dimming View
    SPEC SHEET CMB PC Box Mount Photocell On/Off View
    SPEC SHEET CMB PC ADC Box Mount Photocell On/Off & Auto-Dimming View
    SPEC SHEET CMB PC Espanol Box Mount Photocell On/Off (Espanol) 8/13/2019 View
    SPEC SHEET CMB PDT 10 Box Mount Dual Tech Large Motion Extended Range View
    SPEC SHEET CMB PDT 9 Box Mount Dual Tech Small Motion Standard Range View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    2D Model cmb10.dwg Extended Range 360 Sensor
    2D Model cmb10lt.dwg Extended Range 360 Sensor and Low Temp
    2D Model cmb50.dwg High Bay Aisleway Sensor
    2D Model cmb502p.dwg High Bay Aisleway Sensor with 2 Pole
    2D Model cmb502plt.dwg High Bay Aisleway Sensor with 2 Pole and Low Temp
    2D Model cmb50lt.dwg High Bay Aisleway Sensor and Low Temp
    2D Model cmb6.dwg High Bay 360 Sensor
    2D Model cmb62p.dwg High Bay 360 Sensor with 2 Poles
    2D Model cmb62plt.dwg High Bay 360 Sensor with 2 Poles and Low Temp
    2D Model cmb6lt.dwg High Bay 360 Sensor and Low Temp
    2D Model cmb9.dwg Standard Range 360 Sensor
    2D Model cmb92p.dwg Standard Range 360 Sensor with 2 Poles
    2D Model cmb92plt.dwg Standard Range 360 Sensor with 2 Poles and Low Temp
    2D Model cmb9lt.dwg Standard Range 360 Sensor and Low Temp
    2D Model cmbadc.dwg
    2D Model cmbpc.dwg On/ Off Photocell Sensor
    Installation Instructions IC7-002.pdf Recessed Mount Occupancy Sensors Programming Sheet. View
