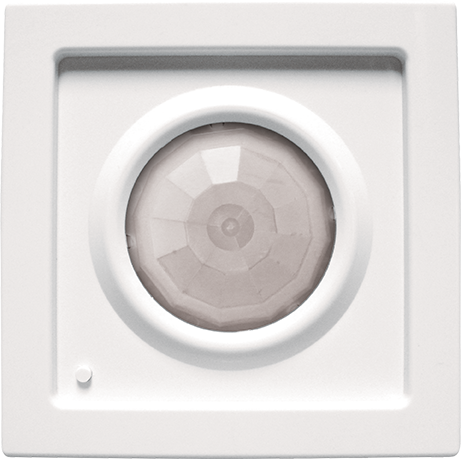

SBR Series

Fixture Embedded - Small Box Sensors

By SensorSwitch

  • Overview
  • Specifications
The Small Box (SB) Series utilizes an enclosure that can be internally mounted in lighting fixtures. SB series sensors can accommodate several lens types, utilize passive infrared (PIR) or dual technology (PDT) detection, and be low or line voltage (single or 2-pole).
Features:
  • Digital PIR detection - excellent RF immunity
  • User adjustable time delays
  • Push-button programmable
  • Convenient test mode
  • 100-hour lamp burn-in timer
  • Green LED status indicator
Read More
Read Less
Control Device Type Daylight Sensor
Mounting Type Recessed
Control Protocol 0-10V
Product Type Sensor
Color Black, White
Finish Gloss
Voltage Rating 208, 347, 347-480, 480
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series SBR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET SBR 10 Small Box Extended Range 360 PIR View
    SPEC SHEET SBR 10 2P Small Box Extended Range 360 PIR 2 Pole View
    SPEC SHEET SBR 10 2P AO Small Box Extended Range 360 PIR 2 Pole Alternating Off View
    SPEC SHEET SBR 50 Small Box Aisle Way PIR View
    SPEC SHEET SBR 6 Small Box High Bay 360 PIR View
    SPEC SHEET SBR 9 Small Box Standard Range 360 PIR View
    SPEC SHEET SBR PDT 10 Small Box Extended Range 360 Dual Tech View
    SPEC SHEET SBR PDT 9 Small Box Standard Range 360 Dual Tech View
    SPEC SHEET SBR Series.pdf Line Voltage, Fixture/Embedded Mount Occupancy Sensors Spec Sheet 7/13/2020 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC7-002.pdf RM,CM,CMB Ceiling, Recessed & Fixture Mount, Low Voltage Occupancy Sensors Ins Programming Sheet. View
