RM Series

Recessed Mount

By SensorSwitch

    DLC Standard / PremiumCA Title 24/JA8
  • Overview
  • Specifications

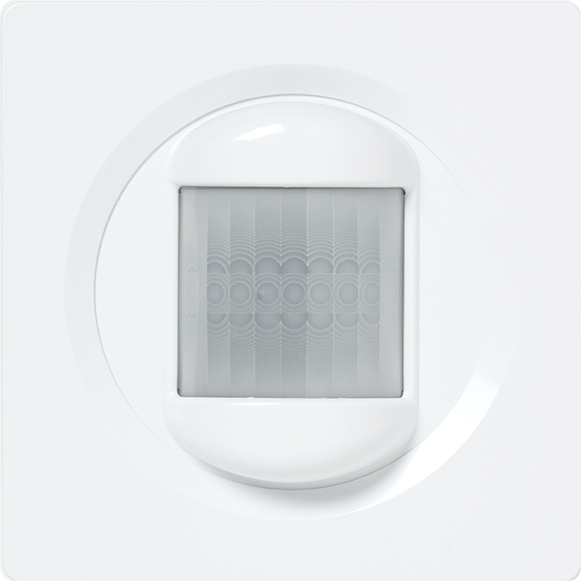

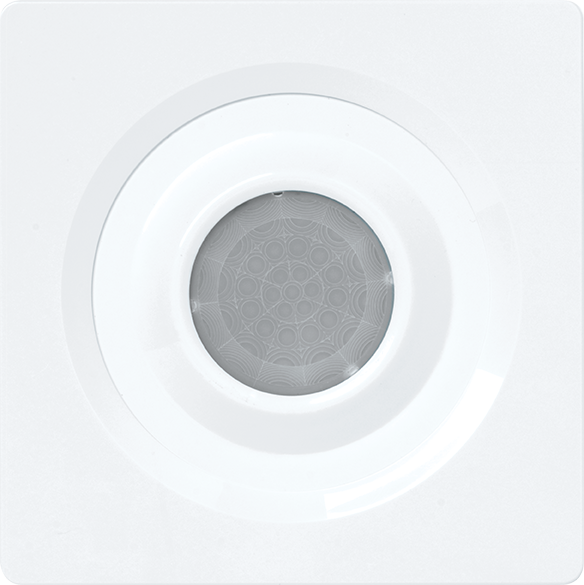

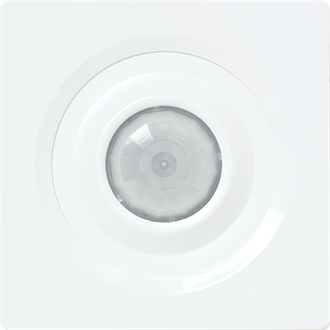

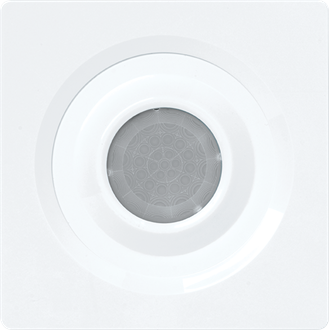

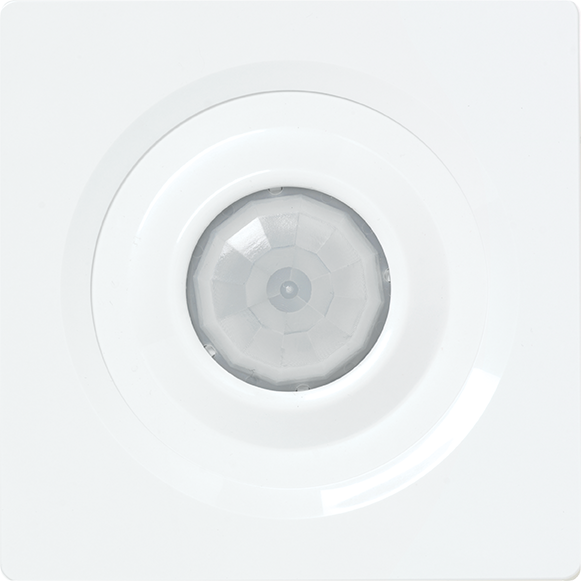

Recessed mount sensors offer the reliable functionality of the standard ceiling mount with an architectural aesthetic. Recessed mount sensors are designed to fit inside a standard junction box making installation quick and easy. Lens options include large motion extended range and small motion standard range.

Available in low voltage and line voltage models, these sensors are capable of covering an entire private office or small room by themselves. Multiple low voltage sensors can also work together to supply the ideal solution for oddly shaped rooms or large open office areas.

A line voltage sensor provides one relay for a single-level control, while the 2-pole version provides a second relay for an additional level of control. For rooms with obstructions, these sensors are also offered with Dual Technology, which adds Microphonics™ detection to the Passive Infrared (PIR) detection.
Features:
  • 30 sec to 30 min time delay
  • Digital PIR detection - excellent RF immunity
  • Push-button programmable
  • Minimum On-Timer (LampMaximizer®)
  • Convenient test mode
  • Green LED Status Indicator
Read More
Read Less
Control Device Type Daylight Sensor
Mounting Type Recessed
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Voltage Rating Low Voltage
Compliance Listing CA Title 24, DLC Standard, ROHS
Environmental Listing High Humidity
Regulatory Listing UL
Series RM
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET RM ADC Form RM ADC Recessed Mount, Low Voltage Photocell Never Off/Auto- Dimming Only Spec Sheet. View
    SPEC SHEET RM Family RM Family Recessed Mount, Low Voltage Occupancy Sensors Spec Sheet. View

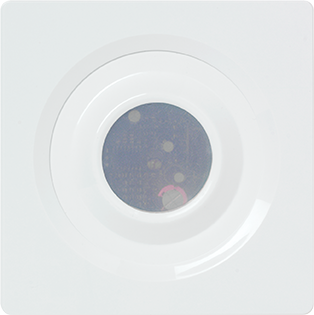

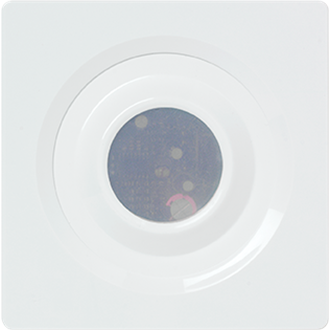

    SPEC SHEET RM PC RM PC Recessed Mount, Low Voltage Photocell On/Off Spec Sheet. View
    SPEC SHEET RM PC ADC RM PC/ADC Recessed Mount, Low Voltage Photocell On/Off and Auto-Dimming Spec Sheet. View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions I18.1.pdf RM Recessed Mount, Photocell ON/Off & Dimming Programming Instructions Sheet View
    Installation Instructions IC23-001.pdf CM, RM PC/ADC Photocell On/Off and Auto-Dimming Programming Sheet. View
    Installation Instructions IC7-002.pdf RM,CM,CMB Ceiling, Recessed & Fixture Mount, Low Voltage Occupancy Sensors Ins Programming Sheet. View
