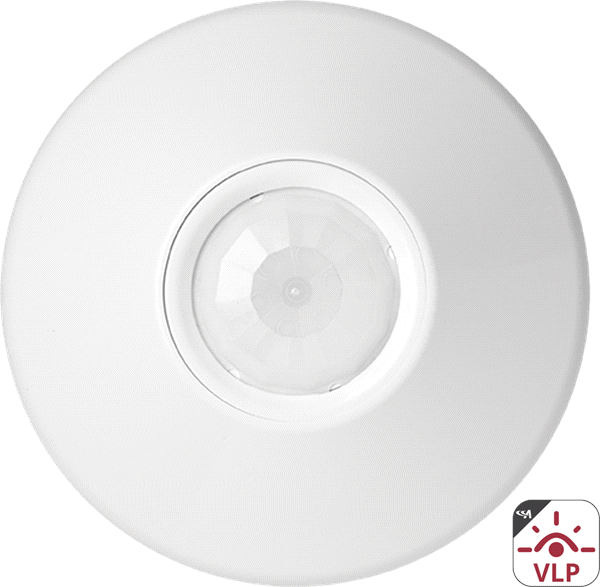

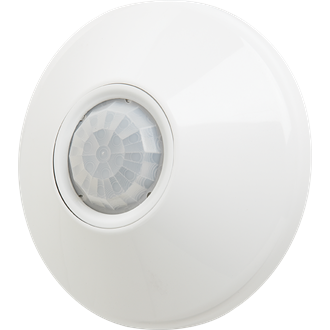

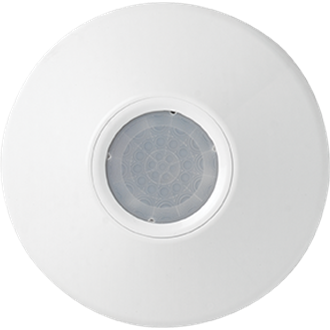

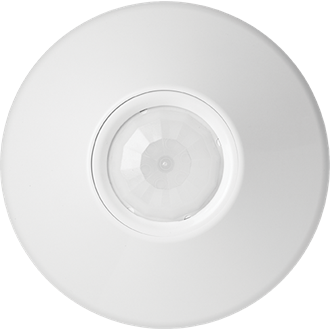

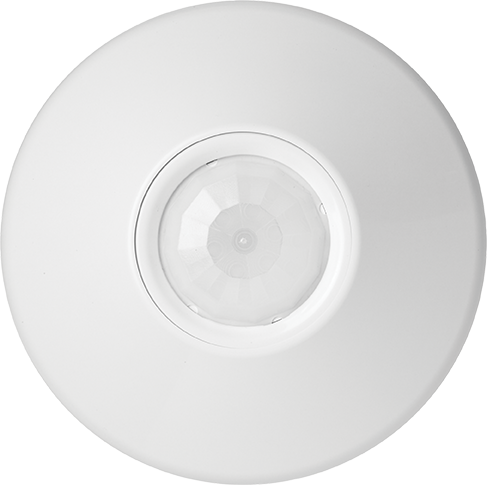

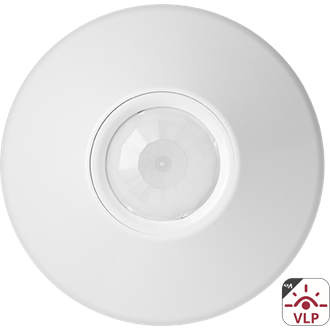

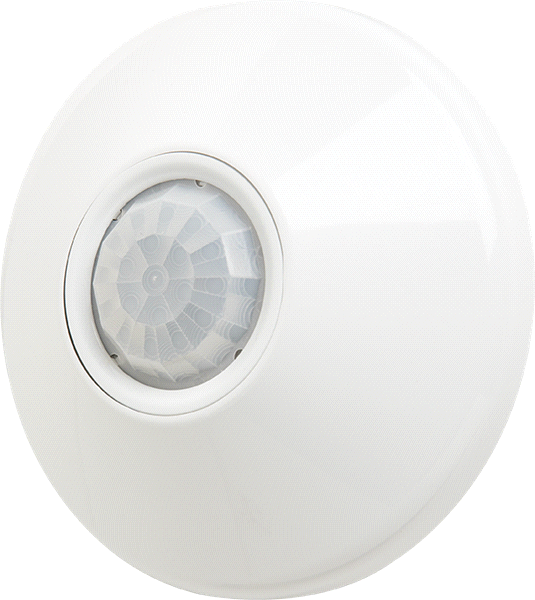

CMR Series

Ceiling Mount, Line Voltage Sensors

By SensorSwitch

  • Overview
  • Specifications
The CMR is a line voltage sensor that easily mounts directly to a ceiling. Ceiling mount sensors are offered in a multitude of configurations which address many applications. Lens options include large motion extended range, small motion standard range and bi-directional for hallways. These sensors are capable of covering an entire private office or small room by themselves.

A line voltage sensor provides one relay for a single-level control, while the 2-pole version provides a second relay for an additional level of control. For rooms with obstructions, these sensors are also offered with Dual Technology, which adds Microphonics™ detection to the Passive Infrared (PIR) detection.
Features:
  • PIR occupancy detection
  • 360° coverage
  • Self-contained relay (no power pack needed)
  • Time delay: 30 sec to 20 min
  • No minimum load requirements
  • Push-button programmable
  • Green LED indicator
  • 100-hour lamp burn-in timer mode
Read More
Read Less
Control Device Type Daylight Sensor
Mounting Type Flush, Surface
Product Type Sensor
Color White
Finish Matte
Voltage Rating 208, 240, 480
Environmental Listing High Humidity
Series CMR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET CMR 10 Ceiling Mount/Box Mount Large Motion Extended Range 6/18/2019 View
    SPEC SHEET CMR 10 480 Form Ceiling Mount/Box Mount Large Motion Extended Range 480 VAC View
    SPEC SHEET CMR 6 Ceiling Mount/Box Mount Large Motion High Bay 7/9/2020 View
    SPEC SHEET CMR 6 208 Form Ceiling Mount/Box Mount Large Motion High Bay 208 VAC View
    SPEC SHEET CMR 6 480 Form Ceiling Mount/Box Mount Large Motion High Bay 480 VAC View
    SPEC SHEET CMR 9 Ceiling Mount/Box Mount Small Motion Standard Range 7/9/2020 View
    SPEC SHEET CMR(B) ADC.pdf Automatic Dimming Control Photo Sensor 5/25/2021 View
    SPEC SHEET CMR(B) PC Ceiling Mount/Box Mount Photocell On/Off View
    SPEC SHEET CMR(B) PC ADC Ceiling Mount/Box Mount Photocell On/Off & Auto-Dimming View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC23-001.pdf Photocell On/Off and Auto-Dimming View
    Installation Instructions IC7-002.pdf Ceiling Mount Occupancy Sensors Small Box Occupancy Sensors View
    Installation Instructions IC8-002.pdf Programming Instructions View
    Technical Bulletins Model Comparison Matrix Model Comparison Matrix View
