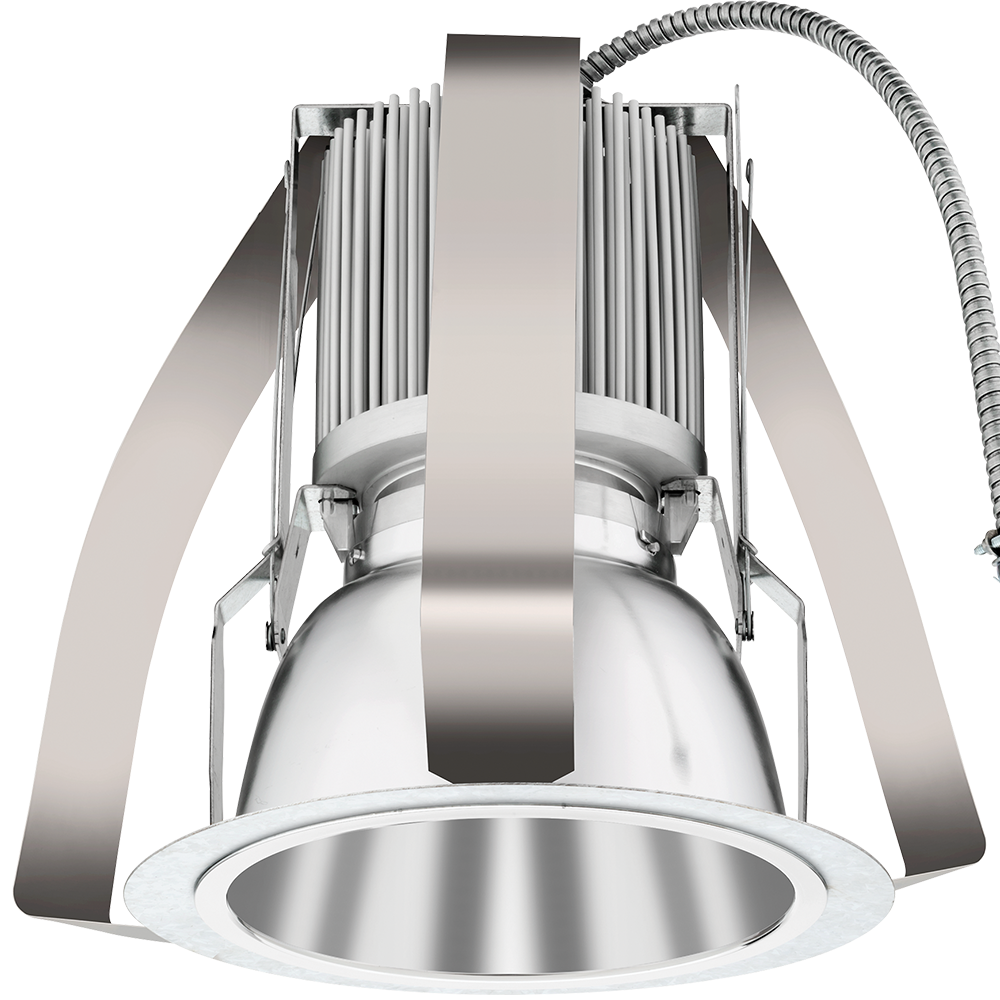

LDN10RV Retrofit Kit

LDN10RV Commercial Retrofit Downlights

By Lithonia Lighting

    Low UGR
  • Overview
  • Specifications
LDNRV universal retrofit downlight has the fastest installation time, is the broadest aperture offering, and most powerful retrofit on the market.
• Typical installation time is 3-4 minutes
• Aperture sizes allow for retrofitting from 4”, 5”, 6”, 7”, 8”, 9”, and 10” downlights
• Delivered lumens from 500lm up to 12,000lm
• 55deg cutoff and XXLPW yield a highly efficacious, glare-free experience
• 1.0 Spacing/Mounting Height ratio provides general illumination performance
• Open wallwash kicker design provides a complimentary asymmetric washlight distribution
• eldoLED dimming drivers available in 10% or 1% minimum dimming levels
• Available with nLight® AIR capability for wireless control and connectivity
Read More
Read Less
Size 10 IN
Shape Round
Light Source LED - Static
Lumens 500 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 8000 LM, 10,000 LM, 10,200 LM, 12,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Retrofit Kit
Compliance Listing Low UGR
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL
Dimming Protocol 0-10V
Fixture Wattage 117, 13, 20, 23, 30, 35, 44, 55, 68, 8.5, 98
Voltage Rating 120, 120-277, 277
Trim Style Cone, Open, Single Wallwash
Color Black, White
Mounting Type Recessed
Series LDN10RV

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LDNRV.pdf Open and Wallwash LED RETROFIT 12/1/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5201058 - LDN8RV-LDN10RV INSTALLATION INSTRUCTIONS.PDF LDN8RV, LDN9RV and LDN10RV Round Retrofit LED Downlight View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Commercial Downlighting Product Brochure LBR and LDN Commercial Downlighting Product Portfolio Brochure 3/20/2023 View
    Brochures LDN Family Brochure LDN Downlights, Switchable, Retrofits, & Cylinders 8/20/2020 View
    Sell Sheet Commercial Downlight Comparison Chart LBR and LDN Product Families Comparison Chart 8/18/2022 View
    Sell Sheet LDN Ceiling Height Flyer.pdf LDN Ceiling Height Flyer View
    Sell Sheet LDNRV Sell Sheet.pdf LDNRV Sell Sheet View
