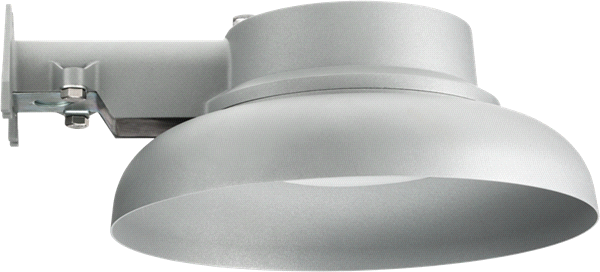

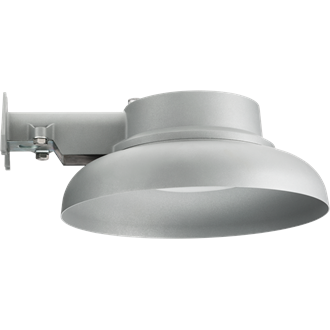

TDD Area Light

LED Area Luminaire Outdoor

By Lithonia Lighting

    Energy Star®
  • Overview
  • Specifications

Featuring a classic dayform, the TDD LED offers a fresh update to a traditional appearance and is powered by advanced LEDs.

The TDD LED luminaire is powerful yet energy efficient, designed to replace up to 100W MH luminaires while saving up to 75% on energy costs. The TDD LED virtually eliminates frequent lamp and ballast replacements associated with traditional technologies. Can be wall or post mounted with integral bracket or onto 1-5/8” mast arm.


The energy savings, long life and easy-to-install design of the TDD LED make it the smart choice for building-and post-mounted doorway, pathway and yard illumination for nearly any facility.
Read More
Read Less
Shape Round
Light Source LED - Static
Lumens 3000 LM
CCT / LED Color 4000 K
CRI 70
Product Type Area Light
Compliance Listing ENERGY STAR®
Environmental Listing Wet Location
Regulatory Listing cUL, UL
Fixture Wattage 31
Voltage Rating 120
Color Silver
Mounting Type Surface
Series TDD

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LED Area Luminaire TDD LED Area Light spec sheet 7/23/2020 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Instruction Sheet_TDD_102716.pdf TDD Instruction Sheet 6/30/2020 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures TDD LED sell sheet.pdf TDD LED sell sheet View
    FAQ TDD LED FAQ.pdf TDD LED FAQ View
    Product Presentation TDD LED Product Launch Presentation - Customer.pptx TDD LED Product Launch Presentation
