T385L TEK Trac Head

Trac-Master® Vertical Cylinder LED Trac Head with TEK Adapter

By Juno

    Energy Star®CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications

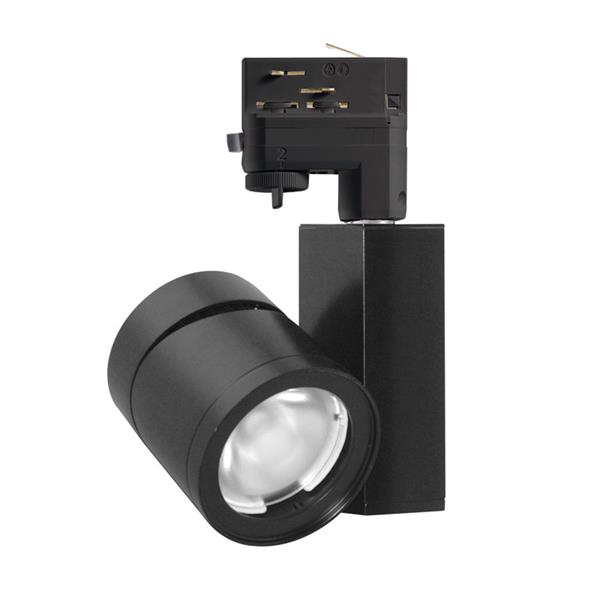

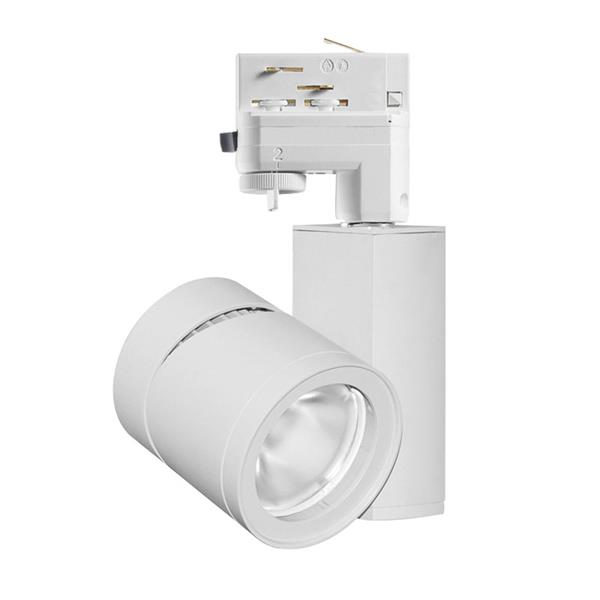

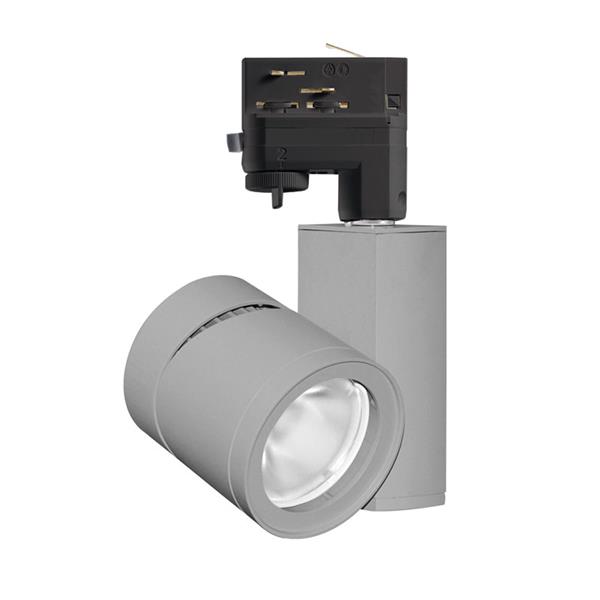

The classic appearance of the T385L TEK LED Vertical Cylinder fixture offers a fresh take on the traditional aesthetic. This 30W state-of-the-art trac light delivers up to 3250 lumens, is up to 80% more efficient than equivalent halogen and has a rated life of 50,000-hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer 90+ CRI, rendering colors richly and making whites appear naturally brilliant.
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 3-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI and 90 CRI versions. SpectralWhite version available in 3000K and 3500K, offers 90+ CRI All metal housing and custom designed heat sink provide outstanding thermal management, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver assembled in a side-mount vertical housing to minimize overall fixture footprint. Insulating air gap between driver and LED light engine optimizes thermal operation Precision designed custom TIR optical system available in either spot, narrow flood, flood or wide flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates up to two accessories if desired 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Dimmable using high quality, factory-approved reverse phase ELV dimmers - see spec sheet Available in white, black or silver finishes UL/cUL Listed; ENERGY STAR® Certified; DesignLights Consortium® Qualified
Read More
Read Less
Light Source LED - Static
Lumens 3200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA, CA Title 24, ENERGY STAR®, JA8
Regulatory Listing C-UL-US, UL
Dimming Protocol Forward Phase, Reverse Phase
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 120
Fixture Wattage 46
Track Mounting Adapter TEK
Series T385L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET T381L-DIM.pdf T381L, T382L, T383L, T385L, & T387L Gen 1 Dimmer Compatibility Sheet View
    SPEC SHEET T385L G2.pdf T385L G2 Spec Sheet 8/8/2022 View
    SPEC SHEET T385L_D1_3_51.pdf T385L Gen 1 Spec Sheet 8/8/2022 View
    SPEC SHEET T385L-G2-DIM.pdf T385L G2 Dimming Compatibility 3/26/2021 View
