Product Image

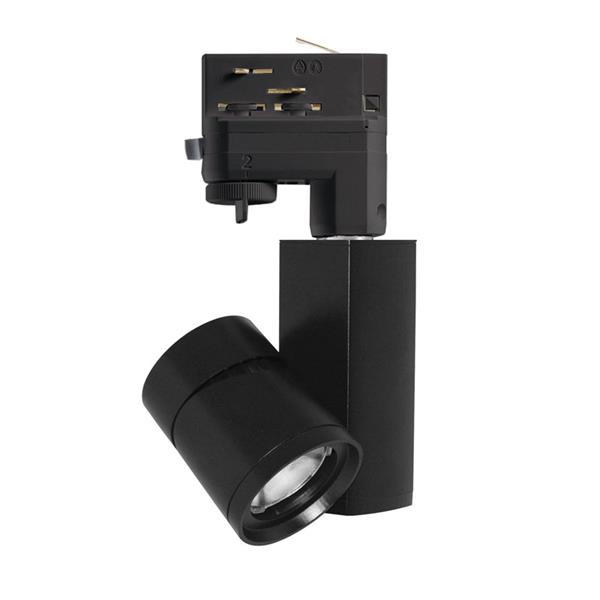

T383L HTEK BL G2.jpg

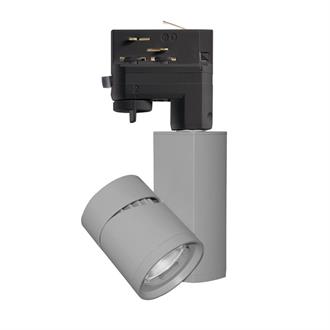

T383L HTEK SL G2.jpg

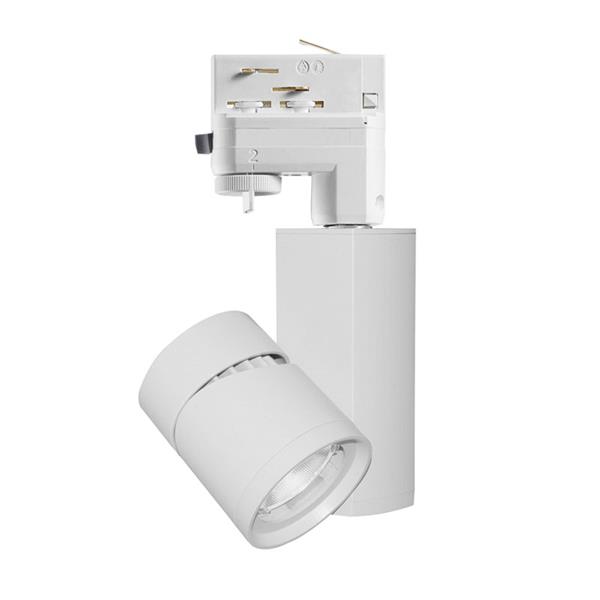

T383L HTEK WH G2.jpg
T383L WH_Living Room.jpg

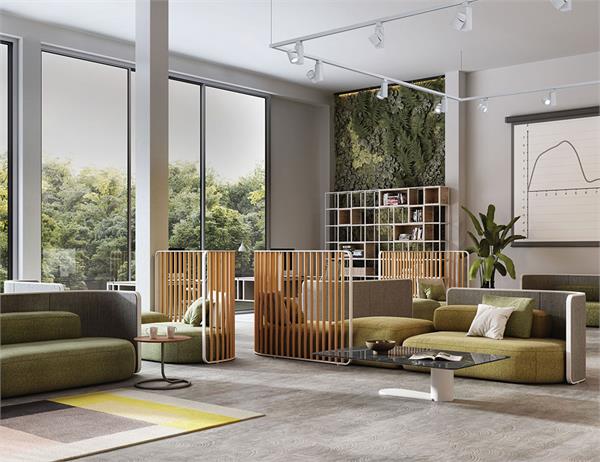

T383L WH_Office.jpg
JUN_T383L G2_LA.gif

T383L HTEK Trac Head

Trac-Master® Vertical Cylinder LED Trac Head with HTEK Adapter

By Juno

    Energy Star®CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
The classic appearance of the T383L HTEK LED Vertical Cylinder fixture offers a fresh take on the traditional aesthetic. This 24W state-of-the-art trac light delivers up to 2446 lumens, up to 80% more efficient than equivalent halogen and has a rated life of 50,000-hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer 90+ CRI, rendering colors richly and making whites appear naturally brilliant.
High performance LED array provides outstanding reliability, performance and color quality/consistency, chromaticity range within a 3-step MacAdam Ellipse 2700K, 3000K, 3500K and 4000K CCT's offer 80 CRI and 90 CRI versions. SpectralWhite version available in 3000K and 3500K, offers 90+ CRI All metal housing and custom designed heat sink provide outstanding thermal management, yielding 70 percent minimum lumen maintenance at 50,000-hours of operation Driver assembled in a side-mount vertical housing to minimize overall fixture footprint. Insulating air gap between driver and LED light engine optimizes thermal operation Precision designed custom TIR optical system available in either spot, narrow flood, flood or wide flood beam distributions An integral, bayonet-mount accessory holder enables quick conversion between beam spreads. Accommodates up to two accessories if desired 360-degree horizontal coverage, greater than 90-degree vertical aiming capability Available in white, black or silver finishes UL/cUL Listed. ENERGY STAR® Certified, DesignLights Consortium® Qualified
Read More
Read Less
Light Source LED - Static
Lumens 2400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA, CA Title 24, ENERGY STAR®, JA8
Regulatory Listing C-UL-US, UL
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 277
Fixture Wattage 46
Track Mounting Adapter HTEK
Series T383L

Read More Read Less
