MSSRT30 Recessed Multiple

LED Multi-Lamp Retrofit Kit

By Indy

    Buy America(n) Option Available
  • Overview
  • Specifications

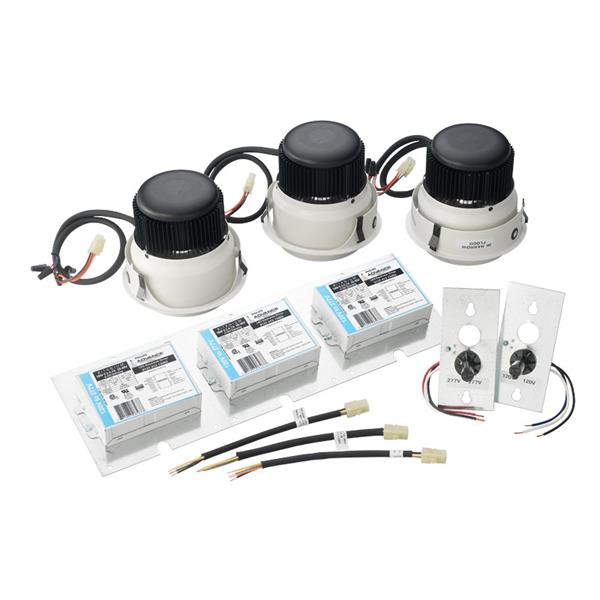

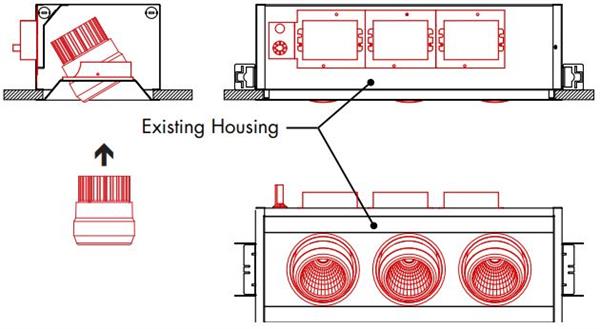

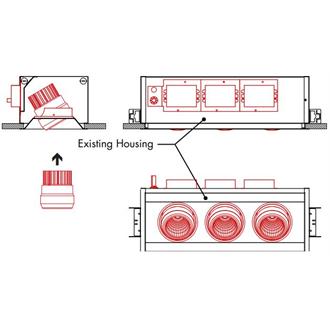

Converts your Indy™ CMH/H.I.D. and first generation 1000 lumen LED Multi-Spot fixtures to the latest, most advanced technology. Upgrades technology by easily replacing Lamp heads and drivers while utilizing existing housing. Kit includes: complete LED head, driver plate with pre-wired drivers, access door with 120V or 277V thermal protector and quick connect wire assemblies.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 1000 LM, 2000 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 97
Product Type Retrofit Kit
Compliance Listing BAA, ROHS
Environmental Listing Damp Location, Dry Location, Non-IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V
Fixture Wattage 101, 103, 12.6, 12.8, 15, 23.3, 23.6, 24.1, 24.2, 25.1, 27.9, 33.9, 34.4, 34.8, 35.8, 40.9, 46.2, 46.4, 48.1, 67, 68, 69, 70, 71, 99
Voltage Rating 120, 120-277, 277, 347
Color Black, White
Mounting Type Recessed
Series MSSRT30

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET MSSRT30_J6_1_26_1G3.pdf Specification Sheet - MSSRT30 Series 11/9/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LED-DIM.pdf LED Dimmer Compatibility Sheet 9/5/2019 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Indy Multi-Head LED Brochure Designer Cove and Multi-Spot Brochure 4/29/2022 View
