VRTL LED Troffer

Vandal-Resistant Recessed LED Troffer

By Lithonia Lighting

    DLC Standard / PremiumBAA
  • Overview
  • Specifications

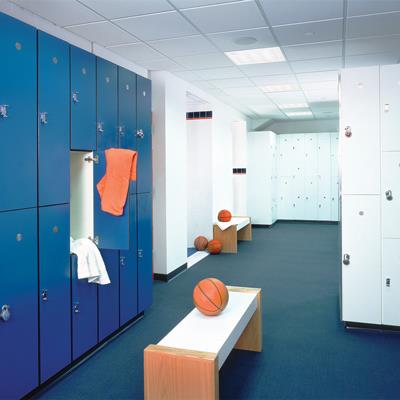

Specially designed for installations prone to vandalism, the VRTL LED recessed troffer is ideal for locker rooms, schools, isolated areas and other applications prone to negligence or abuse. The VRTL LED is available in three sizes including 1’x4’, 2’x2’ and 2’x4’ and is suitable for both flange and grid installations. The fixture housing is quality construction made from 20-gauge cold-rolled steel. All CRS parts are finished with electrostatically deposited, thermally set polyester powder paint after fabrication. Built tough, a one-piece, inset door is made of heavy duty, 18-gauge steel and includes tamper resistant fasteners. A polycarbonate lens, available in two thickness options, further protects the fixture from abuse while still enhancing general illumination.

Read More
Read Less
Size 2FT, 4FT
Shape Rectangular
Light Source LED - Static
Lumens 3000 LM, 5000 LM, 7000 LM, 10,000 LM, 12,000 LM, 15,000 LM, 20,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing BAA, DLC Standard
Environmental Listing Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V
Fixture Wattage 109, 121, 148, 204, 21, 26, 38, 41, 44, 58, 60, 80, 87
Voltage Rating 120, 120-277, 277, 347
Color White
Mounting Type Recessed
Series VRTL, 2VRTL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET VRTL.pdf LED Recessed Vandal-Resistant Troffer 4/14/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions VRTL (Rev 02).pdf Installation instruction sheet, 12.13.16 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet VRTL Replacement parts Replacement boards, drivers, etc. 8/13/2021 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures LL_807550_Industrial Portfolio Refresh_0621_Interactive.pdf Lithonia Lighting Industrial Portfolio 8/30/2021 View
    FAQ WRTL-VRTL LED FAQs.pdf WRTL/VRTL LED Demanding Environment Recessed Troffer FAQ View
    Sell Sheet WRTL-VRTL LED_Sellsheet.pdf WRTL/VRTL Demanding Environment Recessed Troffer LED Sellsheet View
