J6RLE WD Trim

WarmDim LED 6in Round Eyeball Module Retrofit Downlight Discontinued

By Juno

    WarmDimEnergy Star®CA Title 24/JA8
  • Overview
  • Specifications

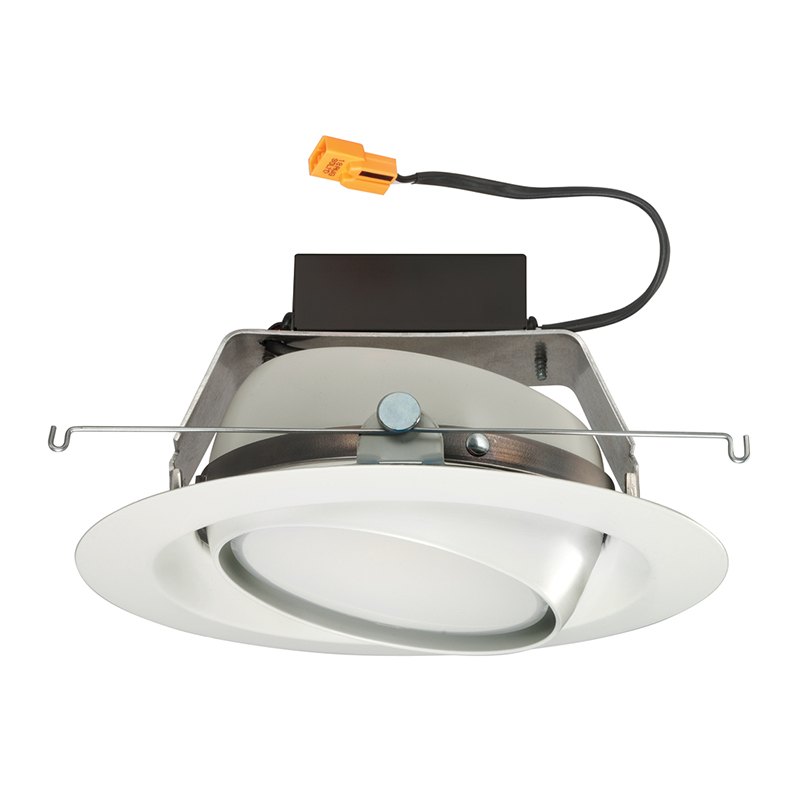

Juno® J6RLEWDG4N WarmDim®  Retrofit LED eyeball trim modules with patented WarmDim technology (Patent US 8,710,754) offers the warmth of incandescent dimming while providing a fast, economical way to upgrade existing 6-inch housings to energy-efficient LED illumination. They produce 600-lumens of brilliant LED light from less than 12W. The adjustable eyeball design provides 30-degrees vertical aiming, 358-degrees rotation. These all-in-one modules are IC-rated, ENERGY STAR® Qualified and certified to high efficacy requirements of California T24.
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Warm Dimming
CRI 90
Product Type Trim
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Dimming Protocol Forward Phase, Reverse Phase
Trim Style Eyeball
Color White
Voltage Rating 120
Fixture Wattage 15.8
Series J6RLE

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET J6RLE WD G4N G1_8_14.pdf (Discontinued) 6" LED Retrofit Eyeball Trim Module, Warm Dim 8/23/2019 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3764.pdf Juno J6RL and J6RLE Installation Instructions View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Juno Recessed Downlights With WarmDim Brochure.pdf Recessed Downlights with WarmDim 1/22/2021 View
    Brochures Juno Retrofit Recessed Lighting Brochure.pdf Juno Retrofit Recessed Lighting Brochure 8/25/2020 View
