IC1ALED 600LM Housing

LED 4in Round Adjustable New Construction Housing

By Juno

    Energy Star®CA Title 24/JA8
  • Overview
  • Specifications

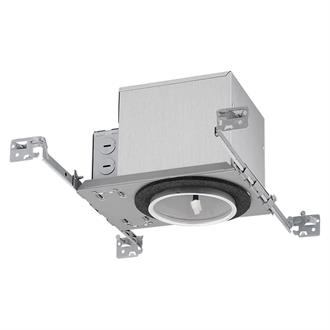

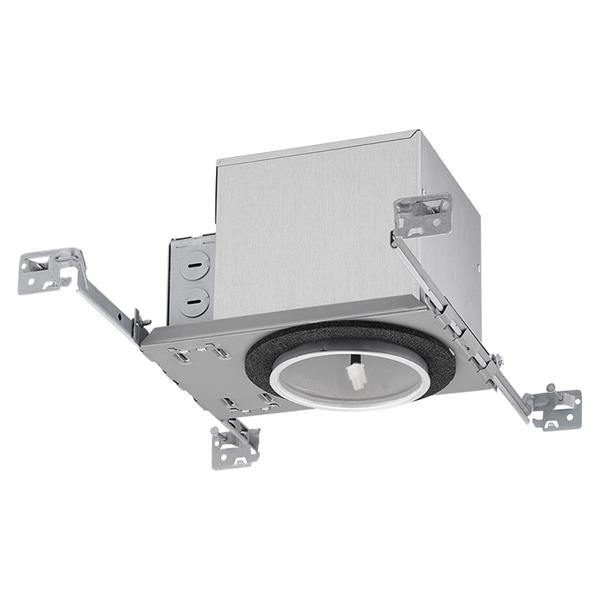

Juno® IC1ALED 600LM, Dedicated LED, Air-Loc® sealed new construction housing. Choice of dimmable drivers: 10.2W nominal dedicated 120 volt driver compatible with incandescent, magnetic low voltage and ELV dimming or 11W nominal universal 120V-277V driver with 0-10V dimming. Double wall, shallow housing allows for fit in 2 x 6 construction. IC housing designed for uses in IC or non-IC construction. For use with Juno 440LED Series, 4-inch LED recessed adjustable trim module. ENERGY STAR® Qualified and certified to meet the high efficacy requirements of California Title 24.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
Lumens 600 LM
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Mounting Type Recessed
Voltage Rating 120, 120-277
Fixture Wattage 8.75
Series IC1ALED

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET G1_7_84.pdf Juno 4" IC 600 Lumen LED Recessed Gimbal New Construction, IC1ALED 440LED (G4N 06LM) 5/12/2021 View
    SPEC SHEET JUNOICLED-DIM.pdf Juno 4", 5" and 6" LED Downlight Dimmer Compatibility 3/8/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC & TC P5142.pdf Juno IC and TC Recessed Housing Installation Instructions View
    Installation Instructions P4472.pdf Juno IC1ALED Installation Instructions View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Juno 4in LED Recessed Gimbals Brochure.pdf IC1ALED, 4in LED Recessed Gimbal Brochure View
