IC22RLED 900LM WD Remodel Housing

WarmDim LED 6in Round Remodel Housing

By Juno

    WarmDimEnergy Star®CA Title 24/JA8
  • Overview
  • Specifications

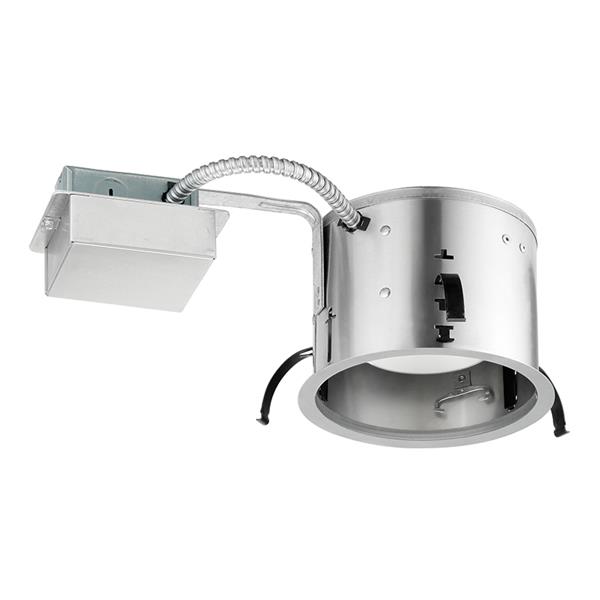

The Juno® 6-inch IC22RLED 900LM remodel downlight with patented WarmDim technology (Patent US 8,710,754) features an LED housing that’s compatible with many standard Juno trims. WarmDim warms LED color temperature while dimming to emulate the dimming performance of traditional incandescent light sources. The dedicated LED housing is IC-rated to be completely covered with insulation. When used with the supplied Air-Loc® Gasket (ALG) kit, the downlight stops infiltration and exfiltration of air, reducing heating and cooling costs.  without an extra gasket.
Exclusive Juno WarmDim LED technology warms color temperature during dimming to replicate the warm glow previously achieved only with incandescent dimming 3000K at full lumen output, 90 CRI minimum throughout dimming range; dimmable with most standard incandescent or electronic low-voltage dimmers ENERGY STAR® Qualified with select trims. See specification sheet for details. Over 900 lumens using only 18 watts LEDs rated for 50,000-hours at 70 percent lumen maintenance; no ultraviolet or infrared wavelengths, lead, or mercury Computer-optimized reflector design with high-reflectance finish and a high-transmission diffusing lens conceals LEDs and produces uniform aperture luminance Air-Loc housing when used with supplied ALG kit Remodel springs accommodate up to a 1-1/8-inch ceiling thickness Shallow housing allows for fit in 2 x 6 construction
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Warm Dimming
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Mounting Type Recessed
Voltage Rating 120, 120-277
Fixture Wattage 18
Series IC22RLED

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET G1_5_67.pdf Juno IC22RLED WD (G4 09LM) Recessed Housing, Open Trims 2/8/2021 View
    SPEC SHEET G1_5_68.pdf Juno IC22RLED WD (G4 09LM) Recessed Housing, Lensed Trims 8/6/2020 View
    SPEC SHEET G1_5_69.pdf Juno IC22RLED WD (G4 09LM) Recessed Housing, Wall Wash Trims View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3060.pdf Juno IC and TC Remodel Recessed Housing Installation Instructions View
