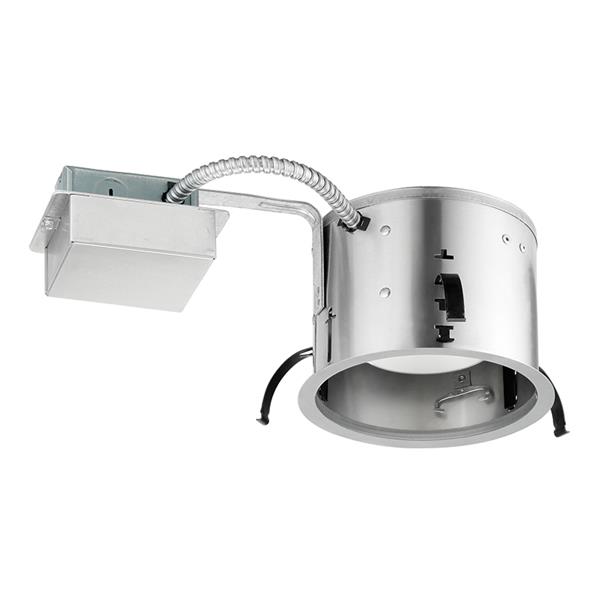

IC22RLED 600LM WD Remodel Housing

WarmDim LED 6in Round Remodel Housing

By Juno

    WarmDim  Energy Star®  CA Title 24/JA8
  • Overview
  • Specifications
The Juno® 6-inch IC22RLED 600LM remodel downlight with patented WarmDim technology (Patent US 8,710,754) features an LED housing that’s compatible with many standard Juno trims. WarmDim technology warms LED color temperature while dimming to emulate the performance of traditional incandescent light sources. When used with the supplied Air-Loc® Gasket (ALG) kit, the downlight stops infiltration and exfiltration of air, reducing heating and cooling costs. The dedicated LED is IC-rated and ideal for applications where the backside of the ceiling is inaccessible. The IC22RLED 600LM is secured in place by factory-installed remodel springs.
ENERGY STAR® Qualified and certified to high efficacy requirements of California T24 when used with select trims. See specification sheet for details 3000K at full lumen output, 90 CRI minimum throughout dimming range; dimmable with most standard incandescent or electronic low-voltage dimmers Over 600 lumens with select trims using only 12 watts Proprietary micro-processor controlled engine emulates dimming performance of incandescent light source LEDs rated for 50,000-hours at 70 percent lumen maintenance; no ultraviolet or infrared wavelengths, lead, or mercury luminance Computer-optimized reflector design with high-reflectance finish and a high-transmission diffusing lens conceals LEDs and produces uniform aperture luminance Air-Loc housing when used with supplied ALG kit or select trims. Remodel springs accommodate up to a 1-1/2-inch ceiling thickness Shallow housing allows for fit in 2 x 6 construction UL/cUL Listed; suitable for damp locations
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Warm Dimming
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol Forward Phase, Reverse Phase
Mounting Type Recessed
Voltage Rating 120
Fixture Wattage 18
Series IC22RLED

Read More Read Less
