IC20RLED 900LM WD Remodel Housing

WarmDim LED 5in Round Remodel Housing

By Juno

    WarmDimEnergy Star®CA Title 24/JA8
  • Overview
  • Specifications

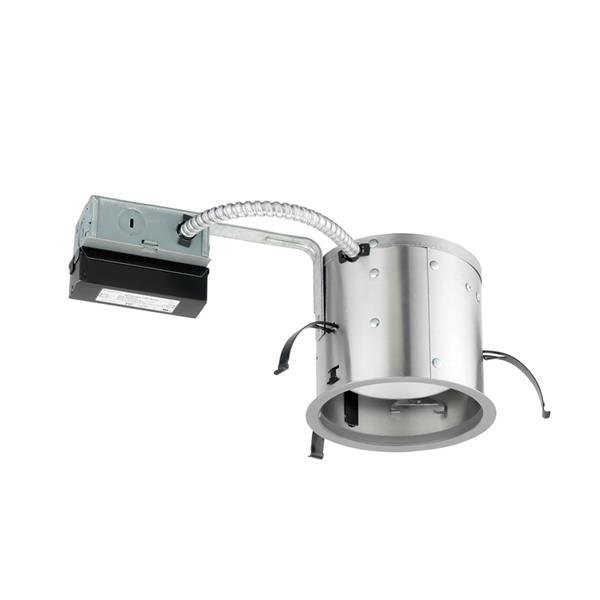

The Juno® 5-in IC20RLED 900LM remodel downlight with patented WarmDim technology (Patent US 8,710,754) features an LED housing that’s compatible with many standard Juno trims. WarmDim warms LED color temperature while dimming to emulate the dimming performance of traditional incandescent light sources. The dedicated LED housing is IC-rated to be completely covered with insulation. When used with the supplied Air-Loc® Gasket (ALG) kit, the downlight stops infiltration and exfiltration of air, reducing heating and cooling costs.  without an extra gasket.
Read More
Read Less
Size 5 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Warm Dimming
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol Forward Phase, Reverse Phase
Mounting Type Recessed
Voltage Rating 120
Fixture Wattage 11.5
Series IC20RLED

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET G1_4_65.pdf Juno IC20RLED (WD G4 09LM) Recessed Housing, Open Trims View
    SPEC SHEET G1_4_66.pdf Juno IC20RLED (WD G4 09LM) Recessed Housing, Lensed Trims View
    SPEC SHEET G1_4_67.pdf Juno IC20RLED (WD G4 09LM) Recessed Housing, Wall Wash Trims View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3060.pdf Juno IC and TC Remodel Recessed Housing Installation Instructions View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Juno Recessed Downlights With WarmDim Brochure.pdf Recessed Downlights with WarmDim 1/22/2021 View
