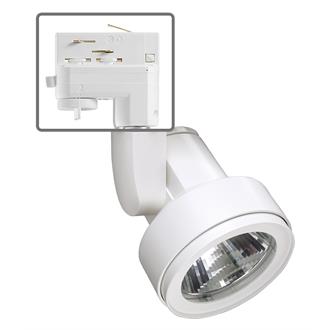

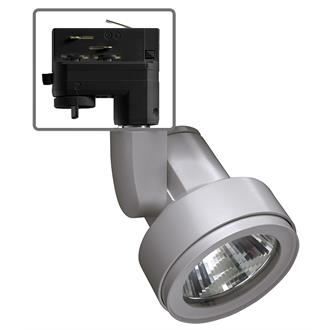

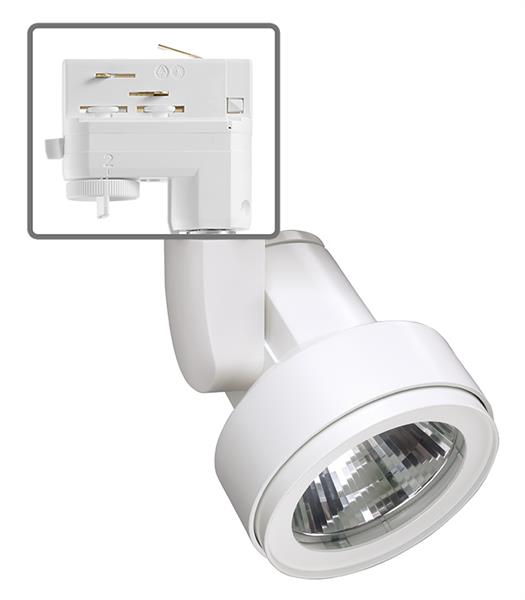

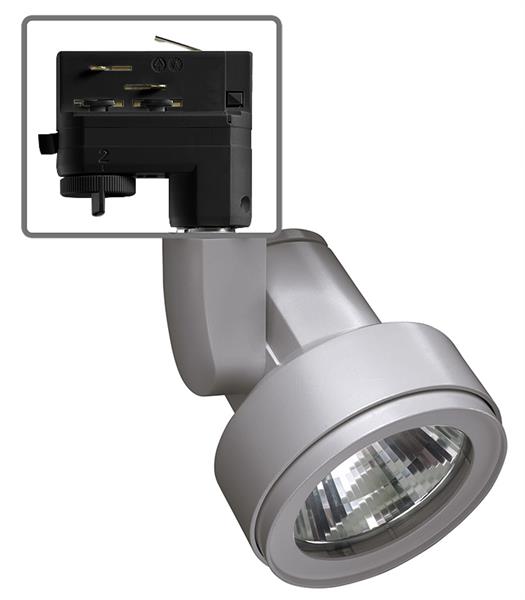

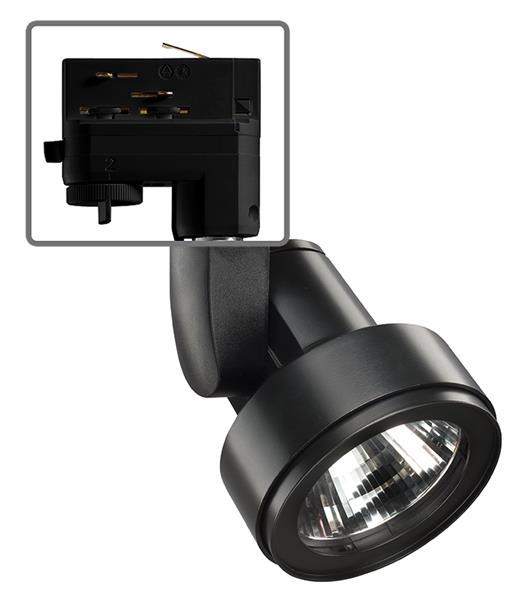

T254L TEK Trac Head

Trac-Master® Cylindra™ LED Trac Head with TEK Adapter

By Juno

    Buy America(n)
  • Overview
  • Specifications
The Cylindra™ T254L Series, 15W LED approximates the light output and distribution of a 90W PAR30 halogen lamp but consumes just 1/6 of the energy and lasts about 15-times longer. Available in 2700K, 3000K, 3500K or 4000K color temperature. The contemporary styling of the Cylindra LED enables it to subtly enhance any décor without distracting from the surrounding environment. The Cylindra™ T254LG2 Series, 15W LED approximates the light output and distribution of a 90W PAR30 halogen lamp but consumes just 1/6 of the energy and lasts about 15-times longer. Available in 2700K, 3000K, 3500K or 4000K color temperature. The contemporary styling of the Cylindra LED enables it to subtly enhance any décor without distracting from the surrounding environment.
TEK Series version of the Juno® T254L Cylindra™ fixture, compatible with the 120V Juno HD Commercial Trac system.
Read More
Read Less
Light Source LED - Static
Lumens 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA
Dimming Protocol Forward Phase, Reverse Phase
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 120
Fixture Wattage 46
Track Mounting Adapter TEK
Series T254L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET T254L G2 D1_3_35G2.pdf Trac-Master Cylindra LED, G2 View
    SPEC SHEET T254LG2-DIM.pdf T254L G2 Dimmer Compatibility Sheet 12/7/2020 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3218.pdf TEK 120V Lighting Trac System Fixture Adaptor Installation Instructions View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Juno Cylindra LED Trac Brochure.pdf Juno Cylindra LED Trac Brochure View
