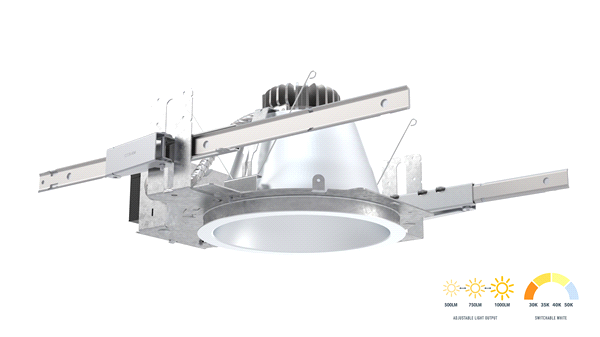

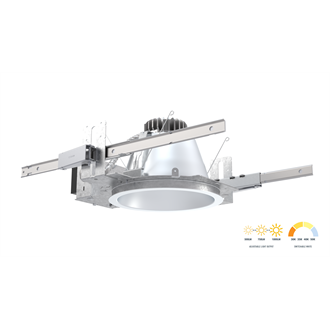

LDN8 Round Series

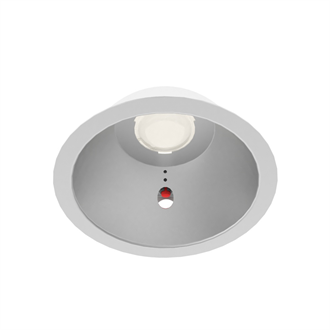

LDN 8" LED Round Downlight

By Lithonia Lighting

    Switchable LumensSwitchable CCTsEnergy Star®Buy America(n)
  • Overview
  • Specifications

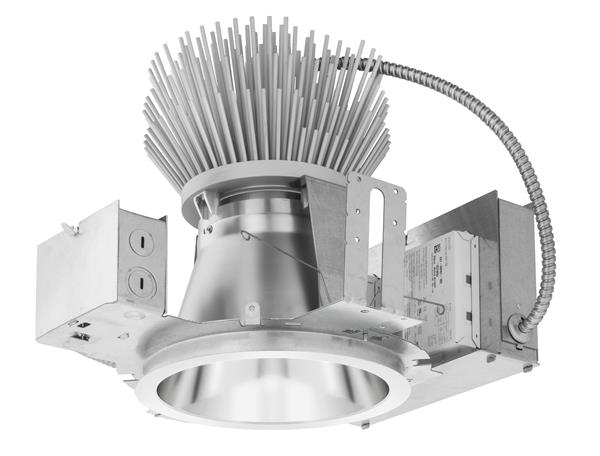

The Lithonia LDN8 is the most powerful downlight on the market delivering up to 20,000lm, comparable to high wattage HID. This is the perfect solution for high ceiling plane applications desiring uniform, general illumination from a cost-effective fixture.
Key Features
  • LDN Switchable (SWW) is now available with (4) Switchable CCTs options, (4) lumens packages, and multiple dimming options
  • Available with nLight® AIR capability for wireless control and connectivity


LDN8 is now available with SensorSwitch JOT!
  • Wireless, app-free solution to single room lighting control
  • Absolutely no 0-10V control wires and no mobile apps are needed to install and pair JOT enabled products
  • Lightning speed installation right out of the box all and pair JOT enabled products
Read More
Read Less
Size 8 IN
Shape Round
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 5000 LM, 6000 LM, 8000 LM, 10,000 LM, 10,200 LM, 12,000 LM, 15,000 LM, 20,000 LM, Switchable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing ASTM Airtight, Damp Location, Wet Location
Regulatory Listing cUL
Dimming Protocol 0-10V, DALI, Electronic Low Voltage, Triac
Fixture Wattage 10, 11, 11.2, 11.3, 54, 6.8, 62, 73, 8, 8.2, 8.3, 9, 9.75, 9.8, 93, 52, 53, 13.4, 13.5, 14.2, 14.3, 14.5, 14.8, 14.9, 149, 15.8, 16.4, 18, 18.8, 185, 19, 20.2, 20.3, 21.8, 24.1, 25, 25.5, 25.6, 266, 27, 27.1, 28.6, 31, 31.7, 32, 33.1, 33.2, 34.7, 37.5, 37.6, 38.8, 39, 39.1, 40, 40.5, 40.6, 41.5, 43, 46, 46.5, 47.5, 49, 51, 119, 12.8
Voltage Rating 120, 120-277, 277, 347

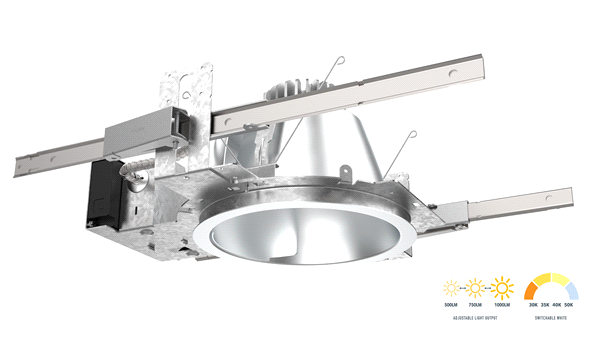

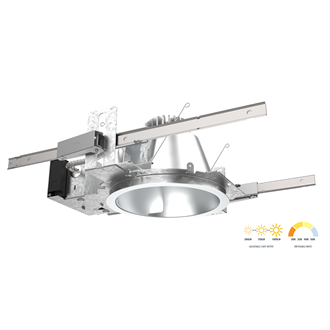

Trim Style Cone, Open, Single Wallwash
Color Black, White
Mounting Type Recessed
Series LDN8

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LDN8 SWW.pdf 8" Round Open and Switchable LED Downlight 5/13/2022 View
    SPEC SHEET LDN8.pdf 8" Open New Construction Downlight 11/30/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LBR-LDN-LDN Switchable Dimming Compatibility Dimming Compatibility Cheat Sheet 8/20/2020 View
    Installation Instructions 912-00206-001_LDN8 SWW Installation Instructions.pdf LDN8 Switchable Round Downlight 11/3/2020 View
    Installation Instructions 912-00219-001_LDN SWW CP Installation Instructions.pdf LDN 4", 6" & 8" Switchable Round LED Downlight with Chicago Plenum 12/10/2020 View
    Installation Instructions LDN8 Installation Instructions.pdf LDN 8" Round and Square LED Downlight View
    Installation Instructions Sloped Ceiling Adapter CJ520663.pdf LDN4, LDN6 and LDN8 Sloped Ceiling Adapter (SCA) 10/20/2021 View
