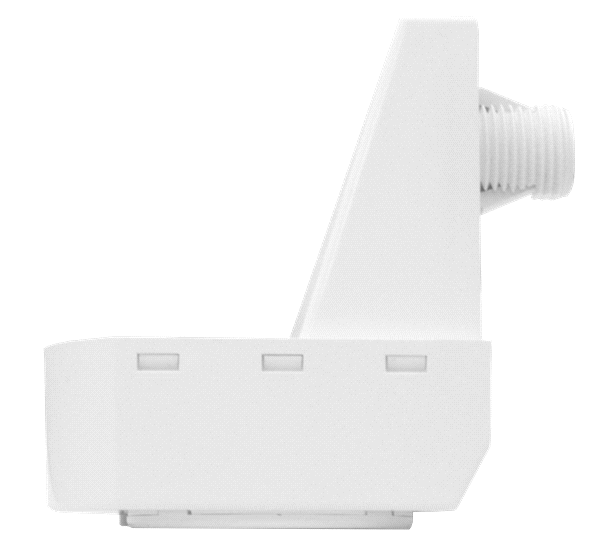

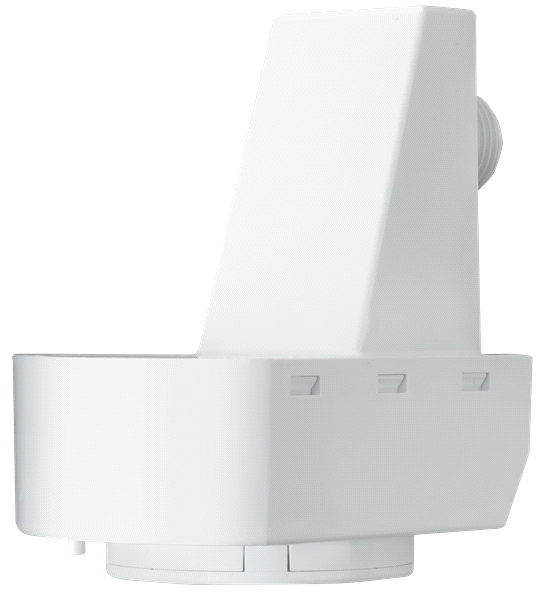

LSXR Series

Fixture Mount Sensor
    CA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option Available
  • Specifications
The LSXR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications. All LSXR Family sensors utilize passive infrared (PIR) detection and feature interchangeable lenses, providing flexibility for multiple mounting height and coverage pattern requirements. All LSXR Family sensors utilize 100% digital Passive Infrared (PIR) detection and power from / switch line voltage. Available options include dual relays, HVOLT powering, and an integrated switching / dimming photocell.
Features:

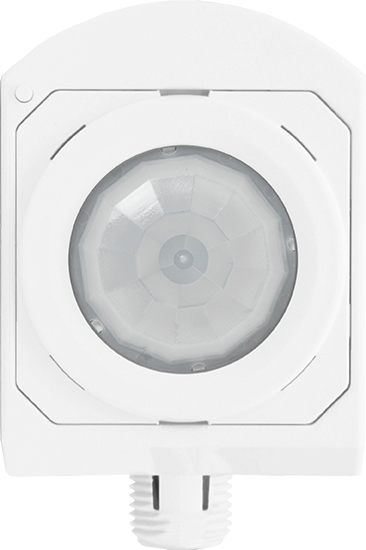

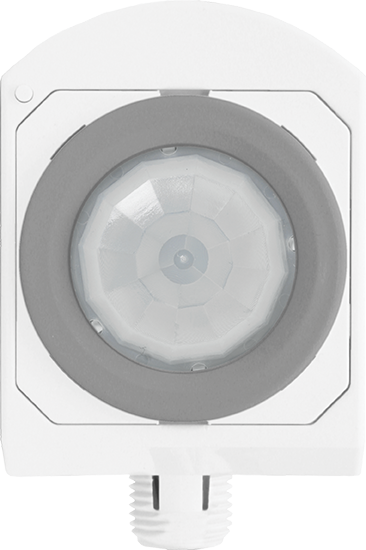

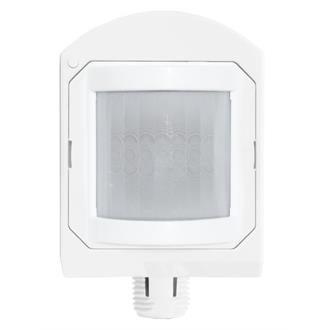

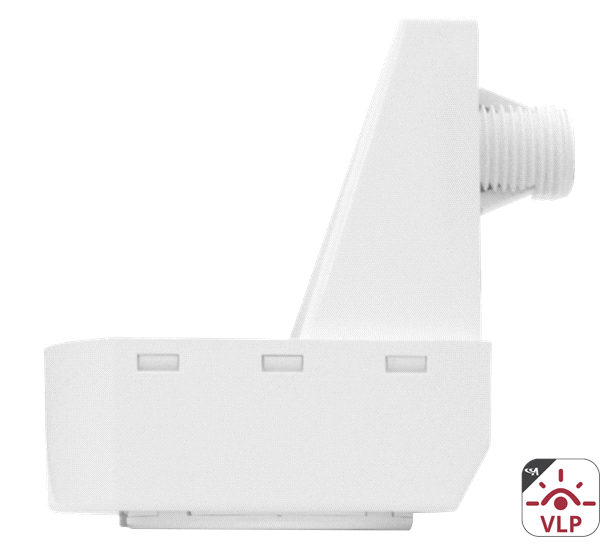

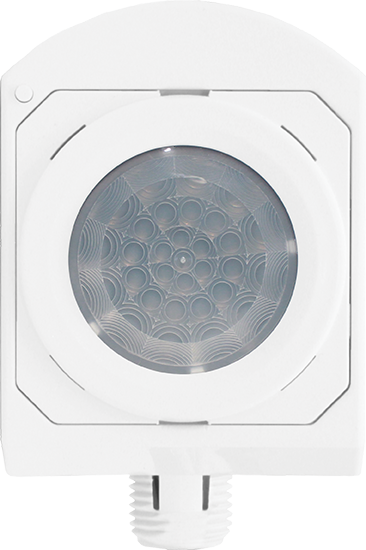

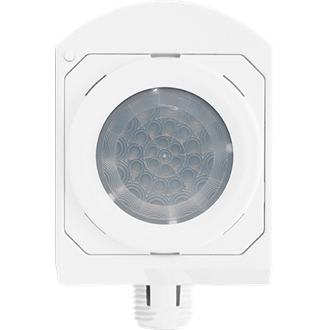

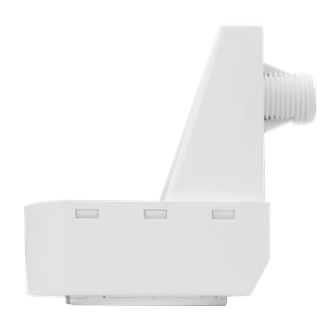

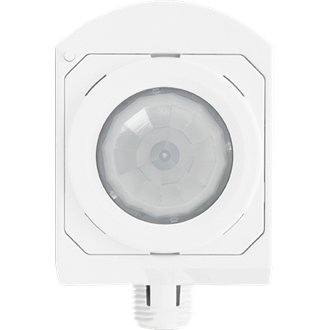

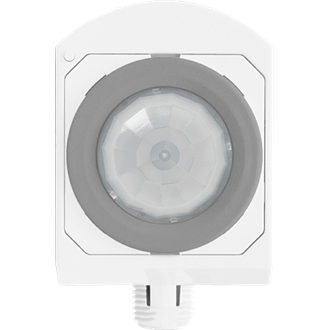

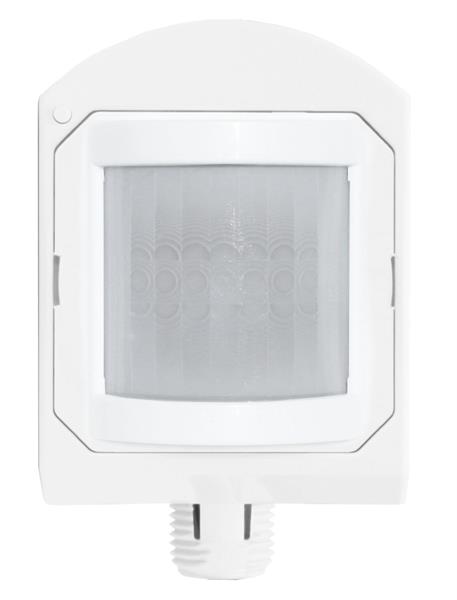

  • Four interchangeable lenses: high mount 360º; low mount 360º; high mount aisleway; and small motion 360º

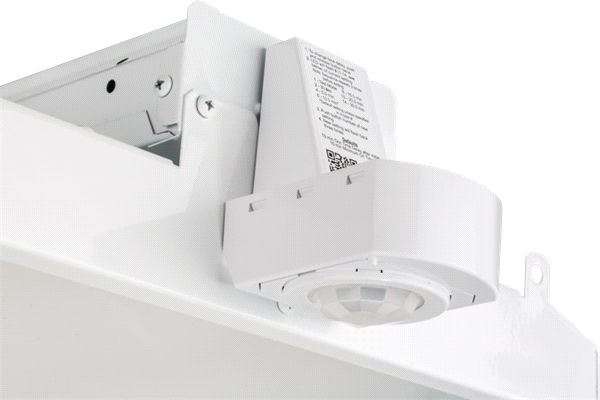

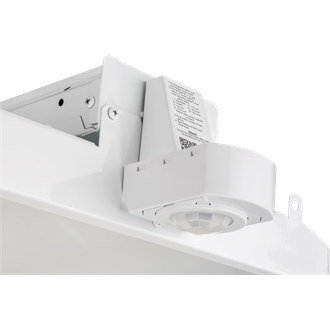

  • Integrated mounting bracket drops lens down 3” from chase nipple (no bracket accessory required)
  • 100% digital PIR detection - provides excellent RF immunity
  • No PIR field calibration or sensitivity adjustments required
  • Single or dual relay versions - designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads
  • Powers from single or two-phase line connections
  • Reversible hot and load wires - eliminates backwards wiring
  • Photocell and 0-10 VDC dimming options
  • Digital push-button programming (no tools or analog adjustments required)
Read More
Read Less
Control Platform Sensor Switch Standalone
Control Device Type Daylight Sensor, Occupancy Sensor
Mounting Type Fixture Attached
Networkable Control Daylight Sensor, Occupancy Sensor
Control Protocol 0-10V
Product Type Sensor
Color White
Finish Gloss
Voltage Rating 347, 347-480, 480
Environmental Listing High Humidity
Regulatory Listing cUL, UL
Series LSXR
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet CONTRACTOR SELECT LSXR.pdf CS LSXR Line Voltage, Fixture Mounted Indoor Highbay PIR Occupancy & Dimming Sensor Spec Sheet. 7/19/2023 View
    Spec Sheet LSXR BAA Family.pdf LSXR BAA Line Voltage, Fixture Mounted Indoor Highbay PIR Occupancy & Dimming Sensor Spec Sheet. 4/25/2024 View
    Spec Sheet LSXR Family LSXR Line Voltage, Fixture Mounted Indoor Highbay PIR Occupancy & Dimming Sensor Spec Sheet. 7/19/2023 View
    Spec Sheet LSXR Family Espanol LSXR Line Voltage, Fixture Mounted Highbay PIR Occupancy & Dimming Sensor Spec Sheet. (Espanol) 8/13/2019 View
    Spec Sheet LSXR PC ADC.pdf LXSR PC/ADC Low Voltage, Fixture Mounted Indoor on/off & Dimming Photo Control Spec Sheet. 4/18/2022 View
