nETHSW

Ethernet Switch

By nLight

  • Overview
  • Specifications

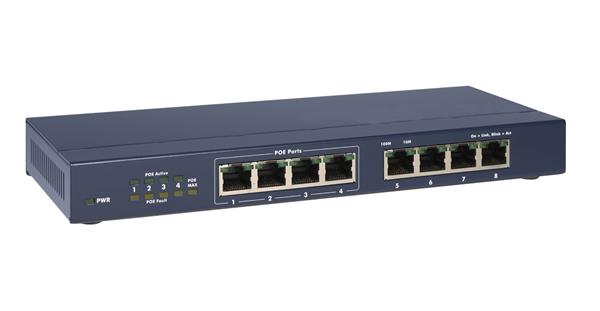

The nlight Ethernet Switch (nETHSW) is used to connect nLight Gateways (nGWY2) to XPoint Wireless Bridges (XPA BRG) via an Ethernet backbone. The nLight Ethernet Switch may also be used for optional connections such as a host PC/Server operation SensorView, nBACnet Appliance, and nADR client. The nETHSW backbone may be used as a part of a fully isolated system or it may be integrated into the facility’s local area IP network for integration with additional systems such as Building Management Systems (BMS), OpenADR servers, and web browser access to the SensorView host PC/Server. The nETHSW is available with optional IEEE802.3af PoE ports to supply Power-over-Ethernet to XPOINT Wireless Bridges, eliminating the need for 120VAC connections at XPoint Wireless Bridge mounting locations (specify nETHSW PoE and XPA BRG POE).
nETHSW
  • Auto sensing 10/100/1000 Mbps connections
  • Fan-less cooling
  • External 120VAC power adapter for standard outlet connections
  • Wall/backboard mountable
nETHSW POE
  • Provides power and data to XPA BRG POE via CAT5e connection (up to 100m/330')
  • PoE ports automatically detect IEEE 802.3af-compliant devices and supply power as needed
  • Auto PoE shutoff when devices are disconnected
Read More
Read Less
Product Type Ethernet Switch
Series NETHSW
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail
